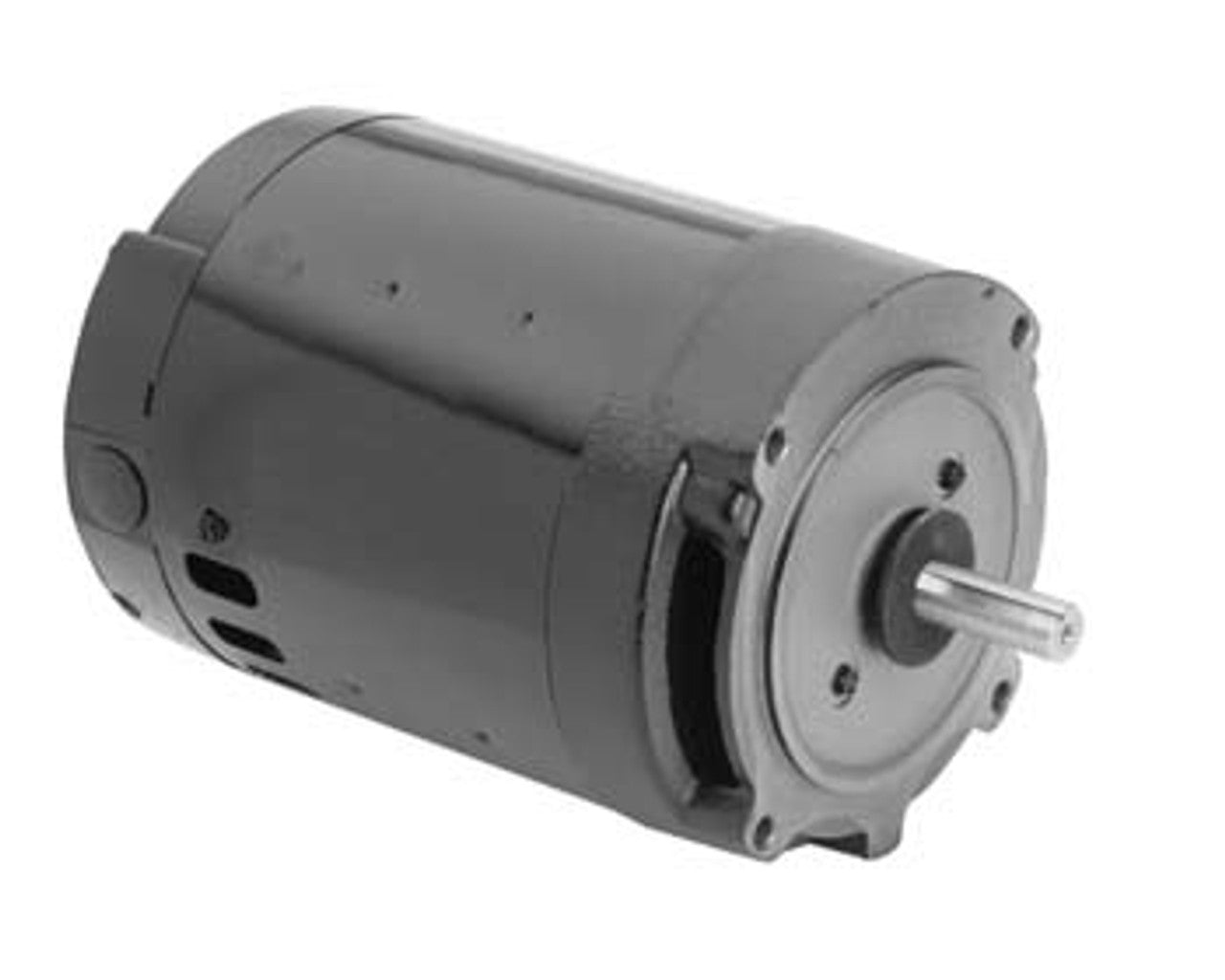

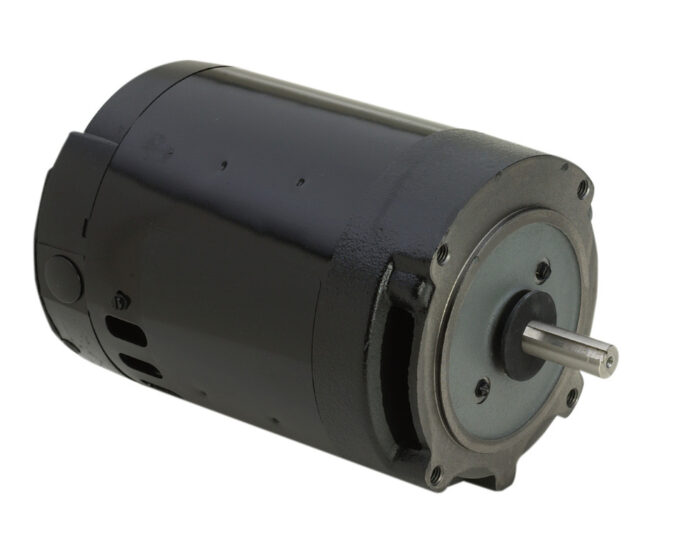

CENTURY MOTORS UH705 Pool Pump Motor 2 HP (56J Frame)

Product Description

The CENTURY MOTORS UH705 is a three-phase electric motor made for pool and spa applications. It operates on dual voltages of two hundred eight to two hundred thirty/ four hundred sixty volts and features a frame size of 56J. This motor provides a horsepower of two and a service factor of 1.20, ensuring reliability in operation.

• Designed for pool and spa applications
• High service factor of 1.20
• Durable rolled steel construction

Product Highlights

This motor is built with ball bearings and has an open drip-proof enclosure to protect internal components. It is suitable for various installations and is reversible for flexibility in use.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UH705

Technical Specifications

• Horsepower: 2 HP
• Input Voltage: 208-230/460
• Service Factor: 1.20
• Frame Size: 56J
• Output Current: 7.0-3.3 Amps
• Speed: 3450 RPM
• Bearing Type: Ball Bearing
• Diameter: 6-3/8 inches
• Phase: Three Phase
• Enclosure Type: Open Drip Proof
• Rotation: Reversible
• Number of Speeds: 1
• Material: Rolled Steel
• Shaft Dimension: 5/8 x 1-7/8
