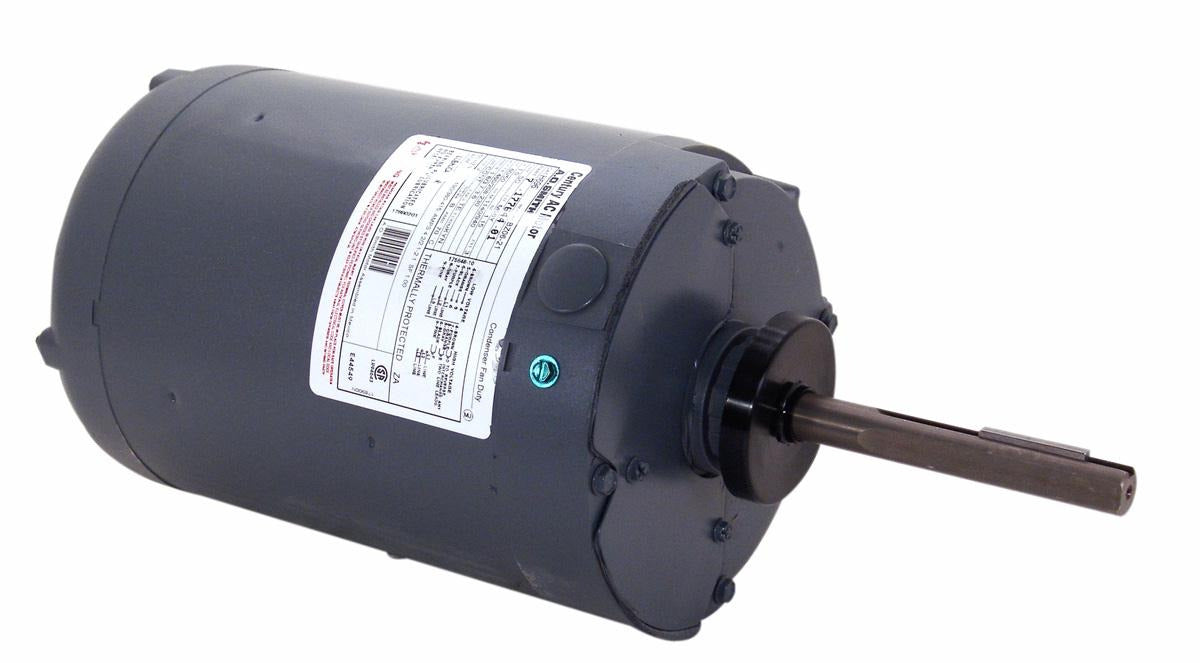

Century UH698 Condenser Fan Motor 2HP 1.5KW 1140RPM 56Y 6.5 inches 208-230/460V

Product Description

The Century UH698 Condenser Fan Motor is designed for commercial HVAC systems. This motor runs at 2HP and 1.5KW, providing reliable performance for demanding applications.

• 2 Horsepower
• 1.5 Kilowatt
• 1140 RPM

Product Highlights

Reliable 2HP condenser fan motor for HVAC systems with a rolled steel enclosure and ball bearings.

Product Information

Standard Information

• Brand: Century
• MPN: UH698
• Country of Origin: Mexico
• Weight: 46.46 lbs

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 2
• Kilowatt: 1.5
• RPM: 1140
• Frame: 56Y
• Diameter: 6.5 inches
• Enclosure: TEAO
• Voltage: 208-230/460
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Round
• Amperage: 6.3-6.2/3.1
• Shaft Type: Keyed
• Shaft Extension: 3.440 inches
• Shaft Diameter: 0.625 inches
• Ambient Temperature: 70 degrees Celsius
• Duty: Continuous
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
