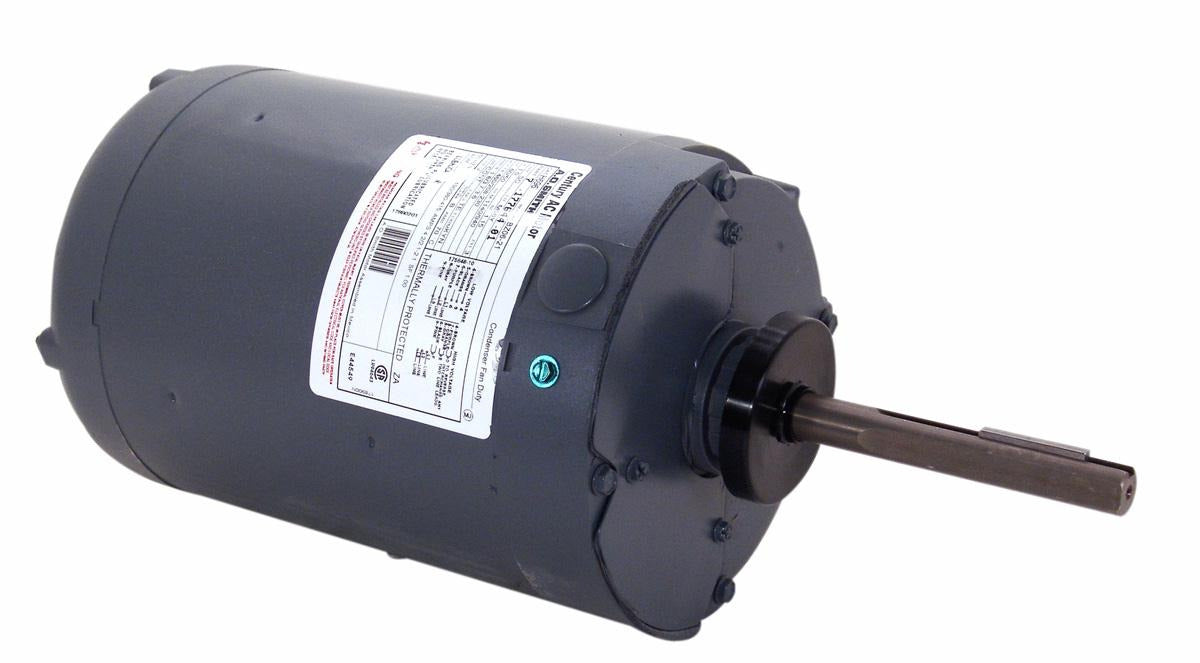

Century UH697 Condenser Fan Motor 1 1/2 HP 200-230/460V 1140 RPM TEAO

Product Description

The Century UH697 Condenser Fan Motor is a reliable motor designed for HVAC applications. It operates at 1 1/2 HP with 200-230/460V and delivers a speed of 1140 RPM. The motor features a TEAO enclosure and is made of durable rolled steel.

• 1 1/2 HP power
• 200-230/460V voltage range
• TEAO enclosure

Product Highlights

The Century UH697 motor is ideal for condenser fan applications in HVAC systems. It offers dependable performance with a three-phase electrical type, and it is built using high-quality rolled steel material for long-lasting durability.

Product Information

Standard Information

• Brand: Century
• MPN: UH697
• Model: H697V1
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Three Phase
• HP: 1 1/2
• KW: 1.1
• RPM: 1140
• Frame: 56Y
• Diameter: 6.5 inches
• Enclosure: TEAO
• Phase: Three
• Voltage: 200-230/460
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Round
• Amperage: 5.4-5.6/2.8
• Shaft Type: Keyed
• Shaft Extension: 6.190
• Shaft Diameter: 0.625
• Ambient Temperature: 70°C
• Duty: Continuous
• Efficiency: 81.50%
• Insulation Class: B
• Poles: 6
• Service Factor: 1.15
• Start Method: Across The Line
• UPC: 787000000000
• Certifications: UL Recognized, CSA
