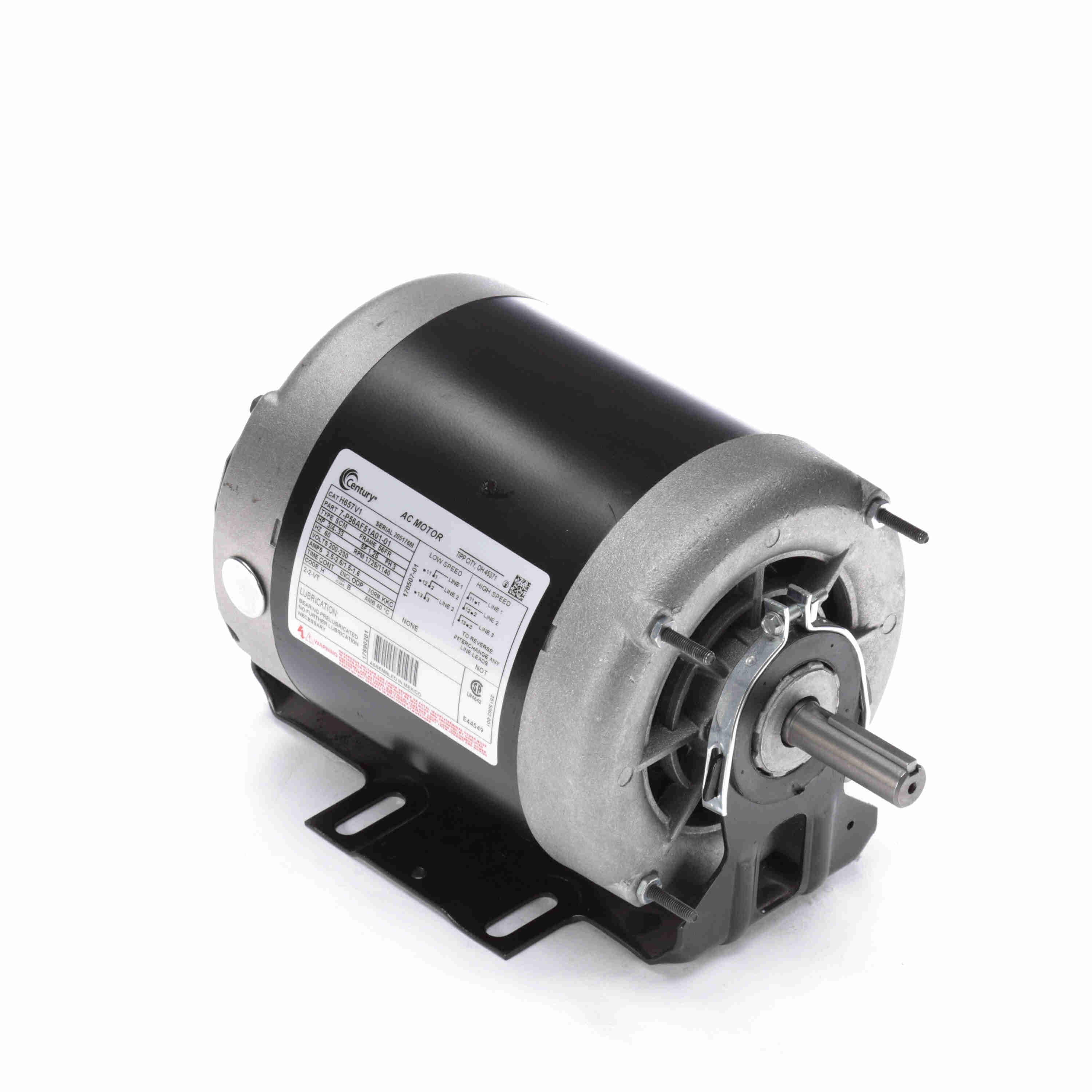

Century UH657V1 Fan and Blower Motor 3/4 HP 200-230V

Product Description

This Century UH657V1 Fan and Blower Motor is designed for HVAC applications. It operates at 3/4 HP with a voltage range of 200-230V. This three-phase motor ensures efficient performance in various air circulation systems.

• Three Phase
• 3/4 HP
• 200-230V

Product Highlights

The Century UH657V1 Fan and Blower Motor is ideal for HVAC systems requiring durable and efficient air movement solutions.

Product Information

Standard Information

• Brand: Century
• Model: UH657V1
• HP: 3/4
• Voltage: 200-230V
• Phase: Three

Technical Specifications

• Electrical Type: Three Phase
• KW: 0.56
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Amperage: 2.5-2.6/1.5-1.6
• Shaft Type: Keyed
• Shaft Extension: 1.94 inches
• Shaft Diameter: 0.625 inches
• Ambient Temperature: 40 degrees C
• Duty: Continuous
• Insulation Class: B
• Service Factor: 1.25
• Mounting Type: Resilient Base
• Certification: UL Recognized, CSA
• Country of Origin: Mexico
