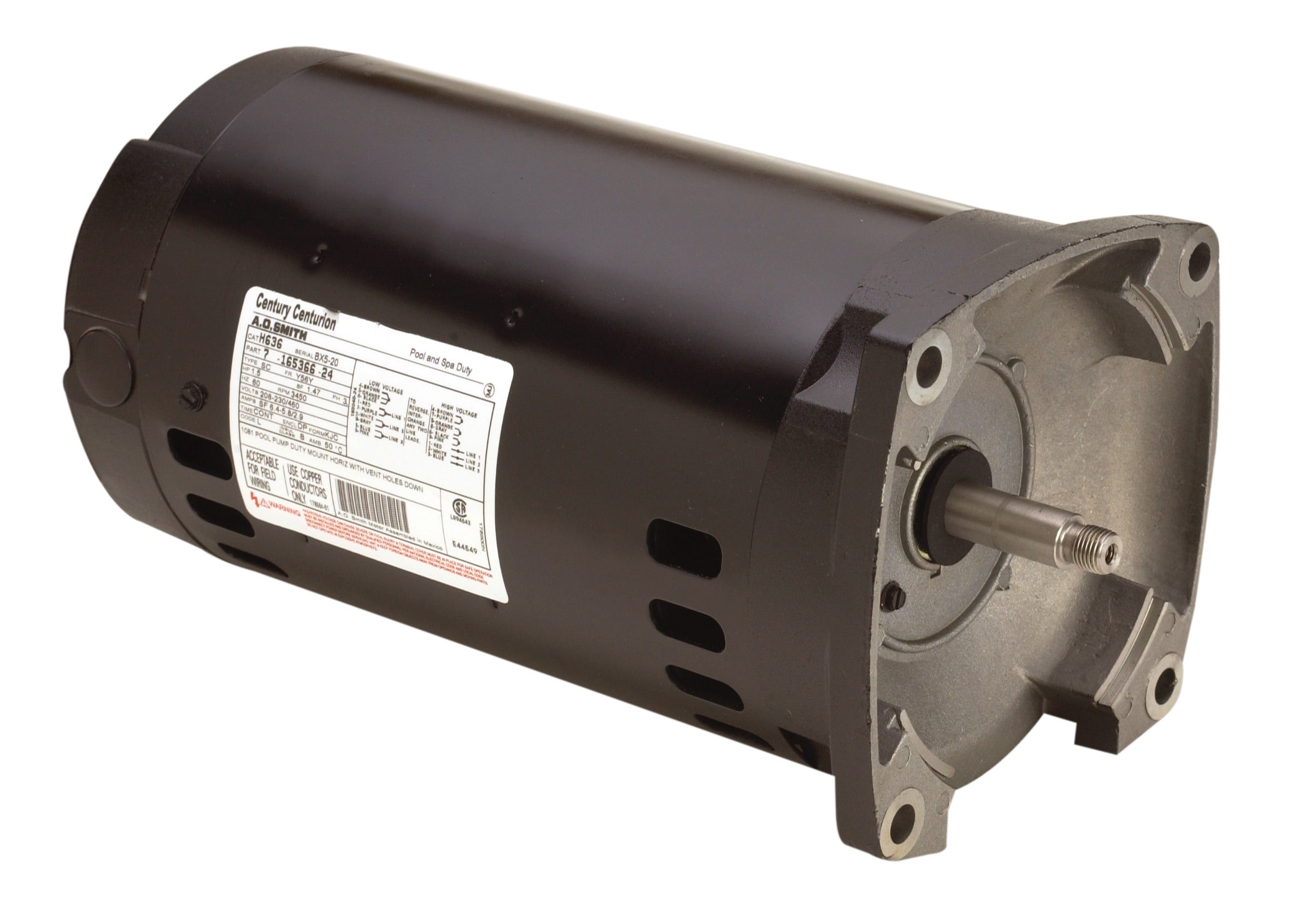

Century UH636 Pool and Spa Motor 1.5 HP 3450 RPM

Product Description

The Century UH636 Pool and Spa Motor is a versatile and reliable choice for maintaining efficient performance for pools and spas. This motor features a polyphase, induction type construction suitable for single or dual voltage operation.

• 1.5 horsepower
• 3450 RPM
• 208-230/460 voltage

Product Highlights

This motor includes sealed ball bearings, a 303 stainless steel threaded shaft, and is designed for 3-phase operations with a square flange. Ideal for pool and spa applications, it ensures durability and efficiency.

Product Information

Standard Information

• Brand: Century
• MPN: UH636
• Phase: Three
• Enclosure: Drip Proof

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• HP: 1.5
• KW: 1.1
• Frame: Y56Y
• Diameter: 6.5 inches
• Voltage: 208-230/460
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Shaft Diameter: 0.625 inches
• Shaft Length: 0.91 inches
• RPM: 3450
• Amperage: SF 6.4-5.8/2.9
• Service Factor: 1.47
• Ambient Temperature: 50°C
• Insulation Class: B
• Frequency: 60
• Certifications: UL Recognized, CSA
