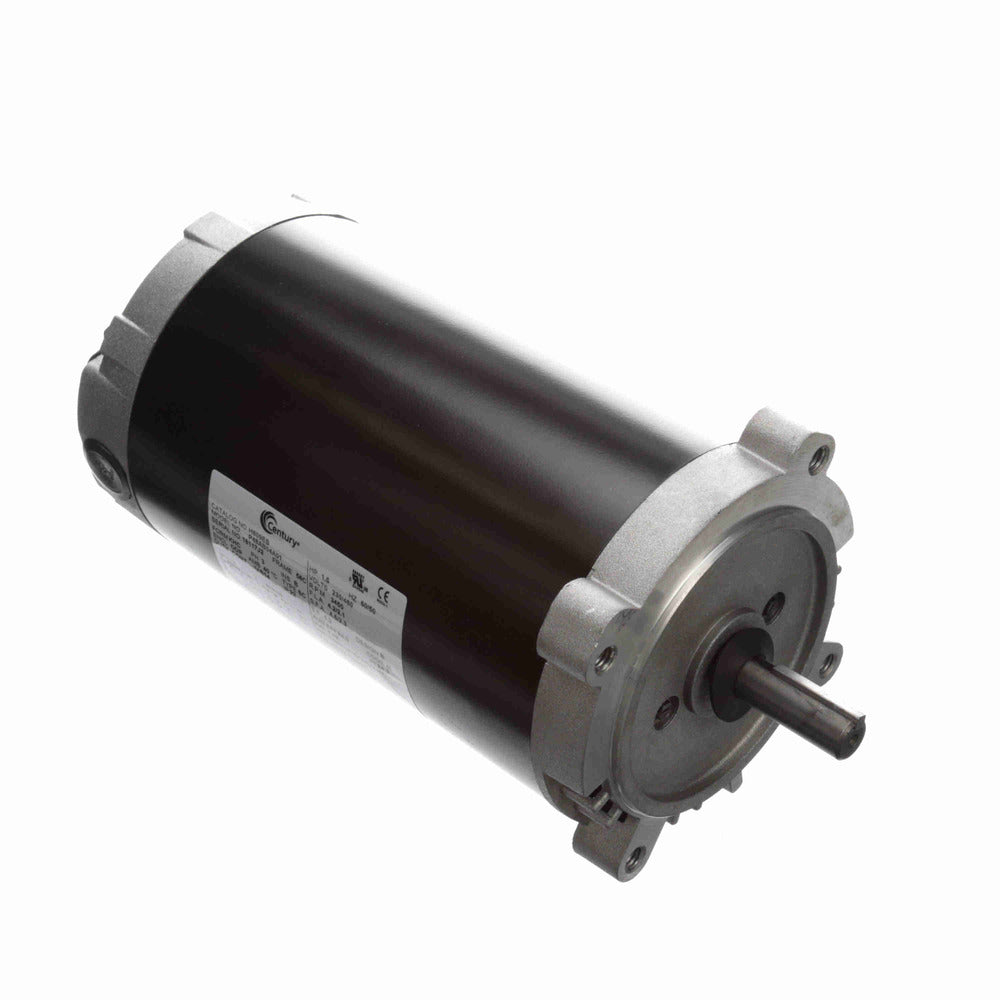

Century UH609ES Electric Motor Three-Phase 1.5 HP

Product Description

The Century UH609ES three-phase electric motor is a reliable option for various industrial applications. This motor is designed with a 1.5 horsepower (HP) rating and operates at 3450 revolutions per minute (RPM).

• Polyphase induction type
• Designed for continuous duty
• Operates at 230/460 volts

Product Highlights

The Century UH609ES electric motor is built for industrial use, providing efficient power and reliable performance. It features a keyed shaft for easy mounting and double-sealed ball bearings for durability.

Product Information

Standard Information

• Brand: Century
• Model Number: UH609ES
• Horsepower: 1.5 HP

Technical Specifications

• KW: 1.1
• RPM: 3450
• Voltage: 230/460
• Phase: Three
• Frame: 56C
• Enclosure: Open Drip Proof
• Rotation: Clockwise/Counterclockwise
• Shaft Diameter: 0.625 inches
• Amperage: 4.2/2.1
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Material: Rolled Steel
• Shaft Extension: 2.070 inches
• Shaft Type: Keyed
• Overload: None
