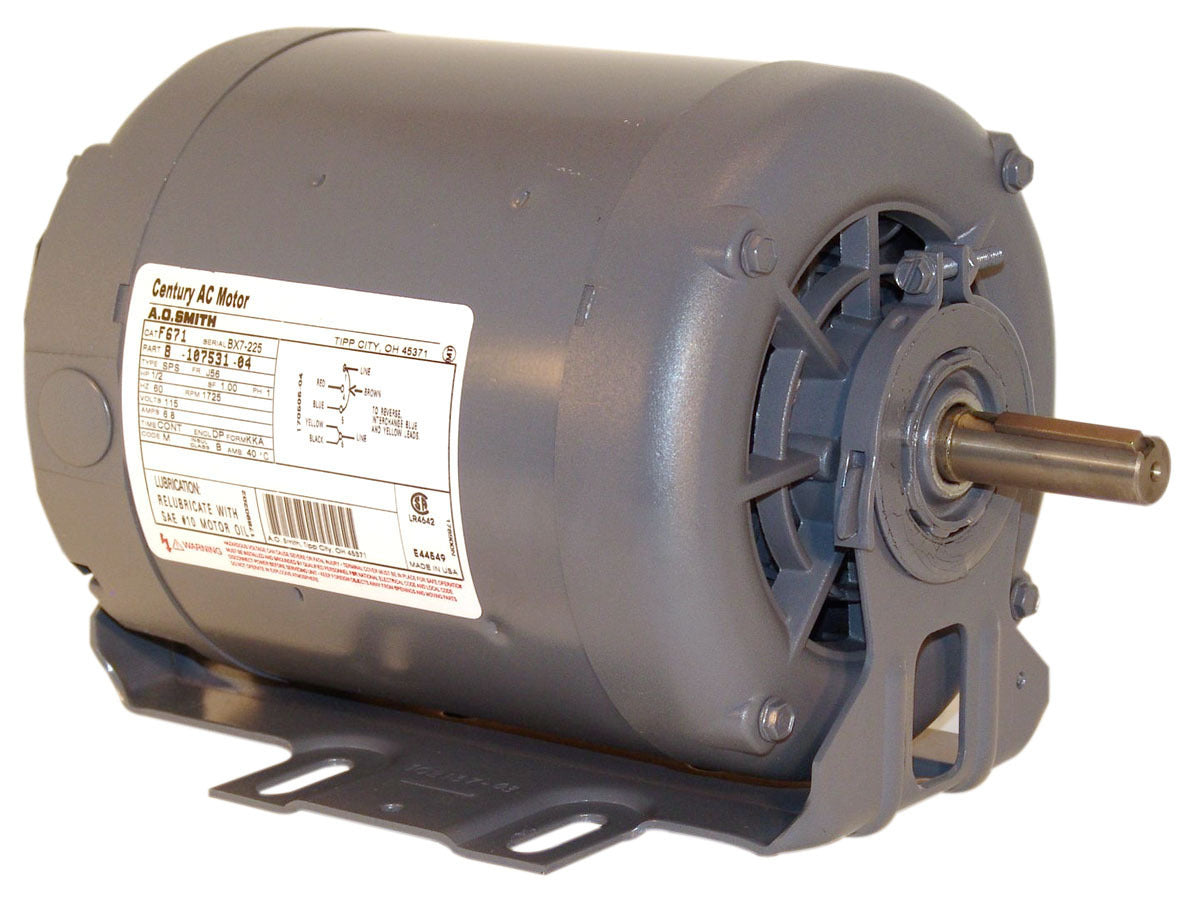

Century UH538 General Purpose Motor 2.0 HP (16 x 8 x 10) Replacement MPN

Product Description

The Century UH538 is a general purpose motor with a power rating of two horsepower and designed for various applications. This model features a polyphase induction design capable of operating on single or dual voltage. The motor has a frame size of K56 and comes equipped with sealed ball bearings, ensuring longevity and minimal maintenance.

• Power: 2.0 HP, 1.5 KW
• Voltage: 200-230/460, Reversible Counterclockwise rotation
• Enclosure: Drip Proof with heavy-duty rolled steel construction

Product Highlights

The Century UH538 motor ensures reliable operation across different industries. Its UL and CSA certifications provide confidence in its safety and performance standards.

Product Information

Standard Information

• Electrical Type: Polyphase, Induction Type
• Weight: 32 lbs

Technical Specifications

• Frame Size: K56
• Diameter: 6.5 inches
• Amperage: 6.0-5.5/2.75
• Shaft Diameter: 0.625 inches
• RPM: 3450
• Mounting Type: Cushion Base
• Duty Cycle: Continuous
• Service Factor: 1.2
