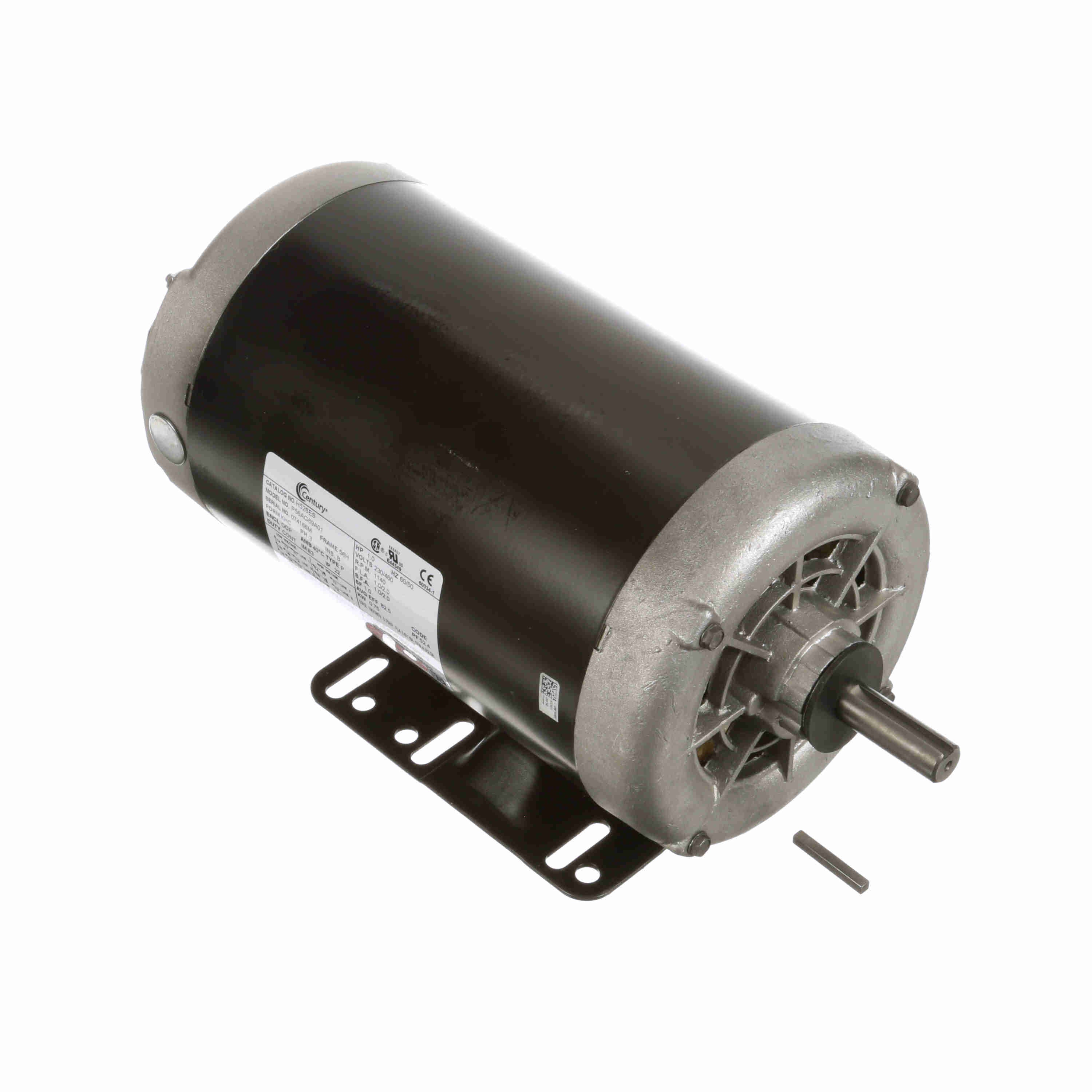

Century UH526ES General Purpose Motor 1 HP 230/460V 1140 RPM 56H Frame

Product Description

The Century UH526ES General Purpose Motor is a robust and reliable motor designed for a variety of industrial and commercial applications. Part number UH526ES offers 1 horsepower and operates at 230/460 volts.

• UL recognized and CSA certified
• Premium efficiency for improved performance
• Durable rolled steel construction

Product Highlights

Suitable for diverse applications, the Century UH526ES motor features a rigid base for easy mounting and permanently lubricated sealed bearings for long-lasting operation. It operates at a speed of 1140 RPM, providing consistent and reliable power output.

Product Information

Standard Information

• Brand: Century
• MPN: UH526ES
• HP: 1
• Voltage: 230/460
• Rotation: Clockwise/Counterclockwise

Technical Specifications

• Electrical Type: Polyphase
• Power: 1 HP
• KW: 0.75
• RPM: 1140
• Frame: 56H
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof
• Phase: Three
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 1.0/2.0
• Shaft Type: Keyed
• Shaft Extension: 1.94 inches
• Shaft Diameter: 0.625 inches
• Duty: Continuous
• Frequency: 50/60 Hz
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Starting Method: Across The Line
