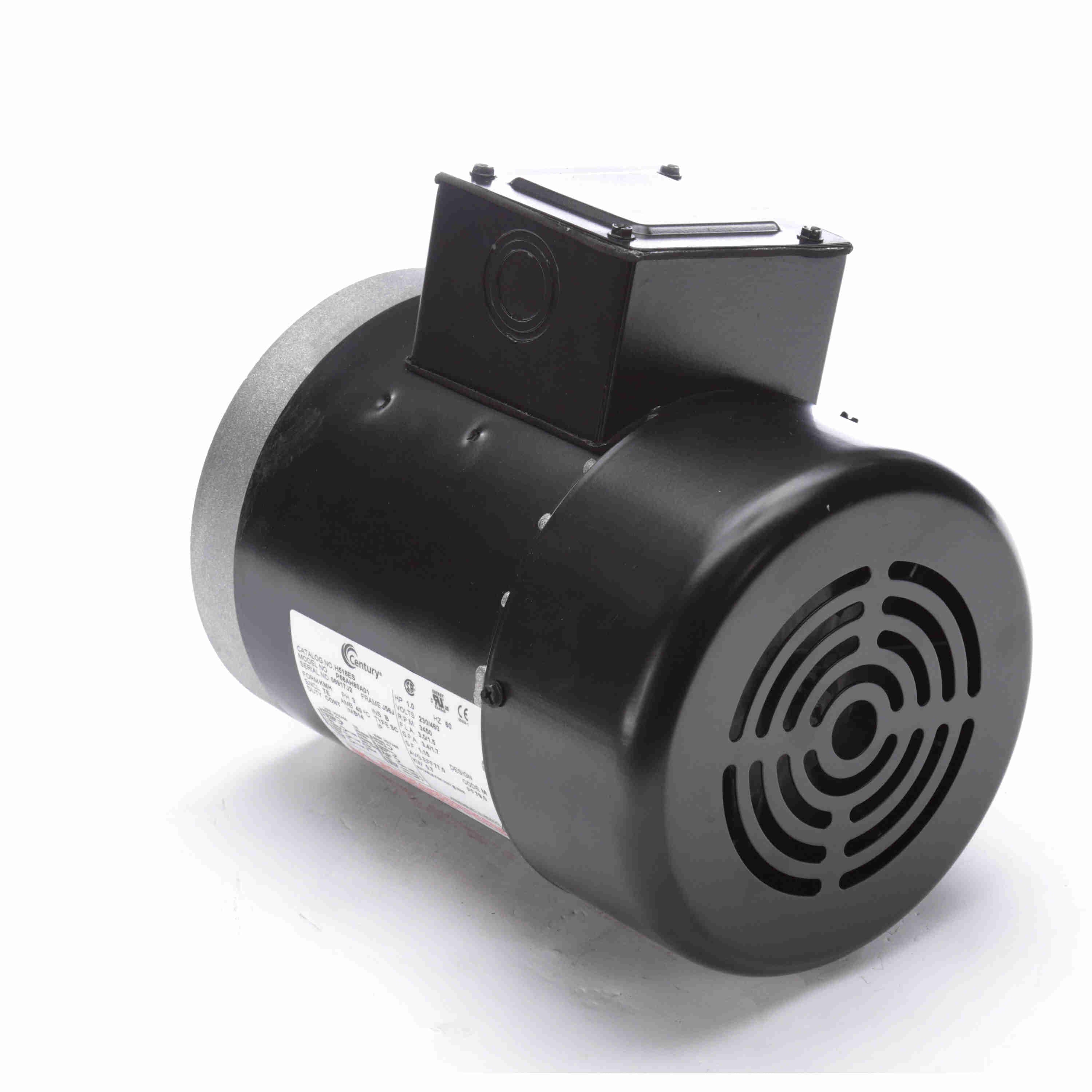

Century UH516ES General Purpose Pump Motor 1 HP 230/460V

Product Description

The Century UH516ES is a general-purpose pump motor designed for various industrial applications. It features a one horsepower motor with dual voltage capability at two hundred thirty or four hundred sixty volts, making it versatile for different settings. This motor operates at a speed of three thousand four hundred fifty RPM and can achieve clockwise reversible rotation. Its robust construction includes a totally enclosed fan-cooled enclosure, ensuring durability and reliability.

• Electrical type: Polyphase, induction type.
• Frame: J56J with a diameter of six and a half inches.
• Double sealed ball bearings and a stainless steel threaded shaft.

Product Highlights

The Century UH516ES is suitable for continuous duty and is designed to operate under heavy load conditions while maintaining efficiency.

Product Information

Standard Information

• Phase: Three
• Overload Protection: No Protection

Technical Specifications

• Voltage: 230/460
• Amperage: 3.0/1.5
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.604 inches
• Weight: 21 pounds
• Dimensions: Length - 16 inches, Width - 8 inches, Height - 10 inches
• Efficiency: 77%
• Duty Type: Continuous
