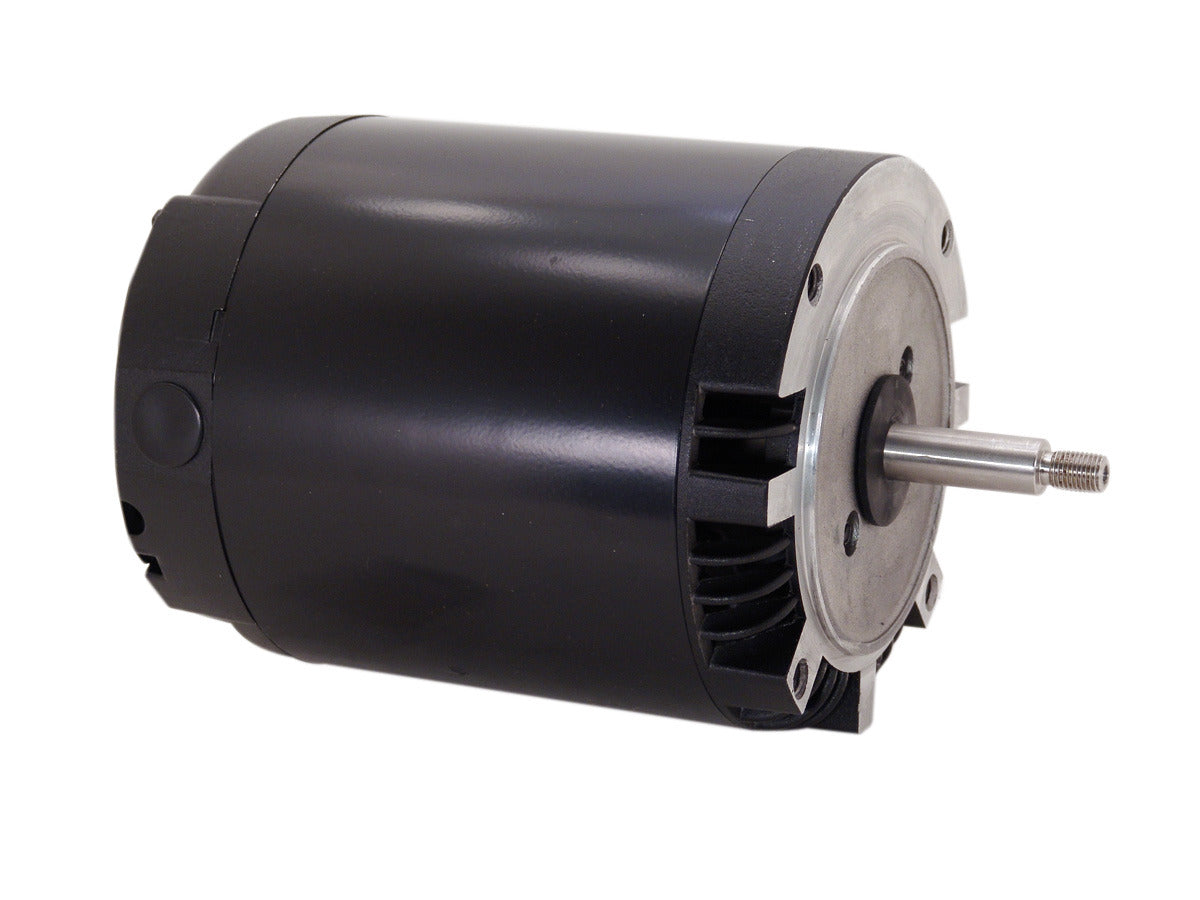

Century UH506 Motor 0.75 KW 3450 RPM 208-230/460V Three Phase

Product Description

This Century UH506 motor is a reliable and efficient option for various industrial applications. With 0.75 KW power and 3450 RPM speed, it operates on 208-230/460 volts and three-phase power. The motor is enclosed in a drip-proof design, ensuring protection against moisture and debris. Its reversible clockwise rotation and threaded shaft make it versatile for different setups.

• 0.75 KW power
• 3450 RPM speed
• Reversible clockwise rotation

Product Highlights

This motor features a mechanically locked bearing on the shaft end and double-sealed ball bearings for smooth operation. The 303 stainless steel threaded shaft adds durability.

Product Information

Standard Information

• Brand: Century
• MPN: UH506

Technical Specifications

• KW: 0.75
• RPM: 3450
• Voltage: 208-230/460
• Phase: Three
• Frame: L56J
• Enclosure: Drip Proof
• Rotation: Reversible Clockwise
• Mounting: Round
• Shaft Diameter: 0.625 inches
• Amperage: SF 4.3-4.0/2.0
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 2.6 inches
• Shaft Type: Threaded
• Length: 14 inches
• Width: 8 inches
• Height: 8.5 inches
• Weight: 24 lbs
• Country of Origin: China
