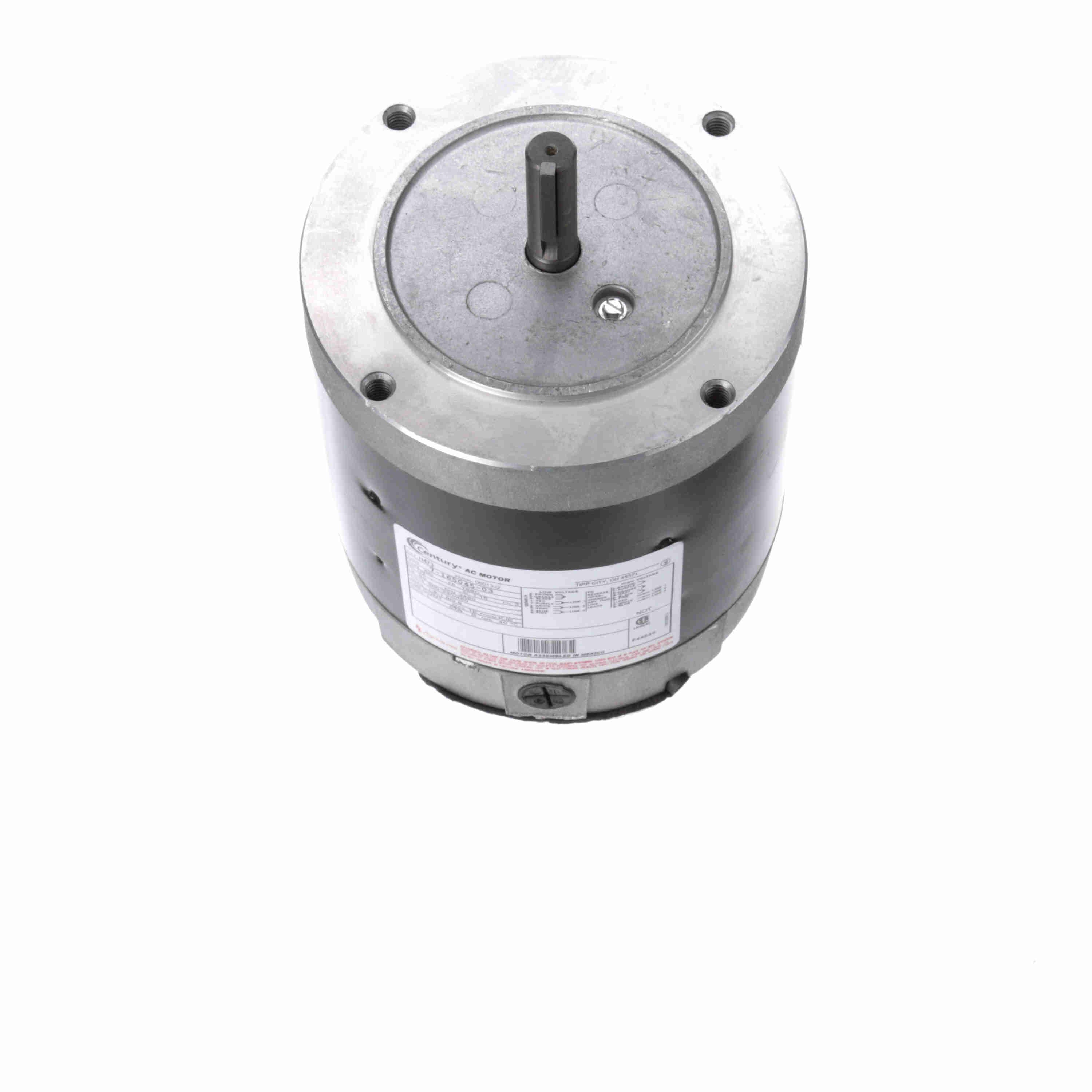

Century UH473 General Purpose Motor 0.5 HP 200-230/460V 3450 RPM

Product Description

Century UH473 General Purpose Motor is a versatile motor designed for various industrial applications. It features a totally enclosed non-ventilated design, ensuring durability and long-lasting performance. This motor is polyphase with an induction type, suitable for both single and dual voltage operations.

• Polyphase Induction Type
• Totally Enclosed Non-Ventilated
• 0.5 HP, 3450 RPM

Product Highlights

The Century UH473 motor is built with durable rolled steel material and provides reversible counterclockwise rotation. The motor’s compact design, along with permanently lubricated sealed bearings, ensures an extended motor lifecycle and efficient performance.

Product Information

Standard Information

• Brand: Century
• Model: UH473
• Country of Origin: Mexico

Technical Specifications

• HP: 0.5
• Voltage: 200-230/460V
• RPM: 3450
• Amperage: 1.9-1.8/0.9
• Frame: Y56C
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Non-Ventilated
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Shaft Type: Keyed
• Shaft Extension: 2.070 inches
• Shaft Diameter: 0.625 inches
• Mounting Type: Round
• Insulation Class: B
• Service Factor: 1.15
• Phase: Three
