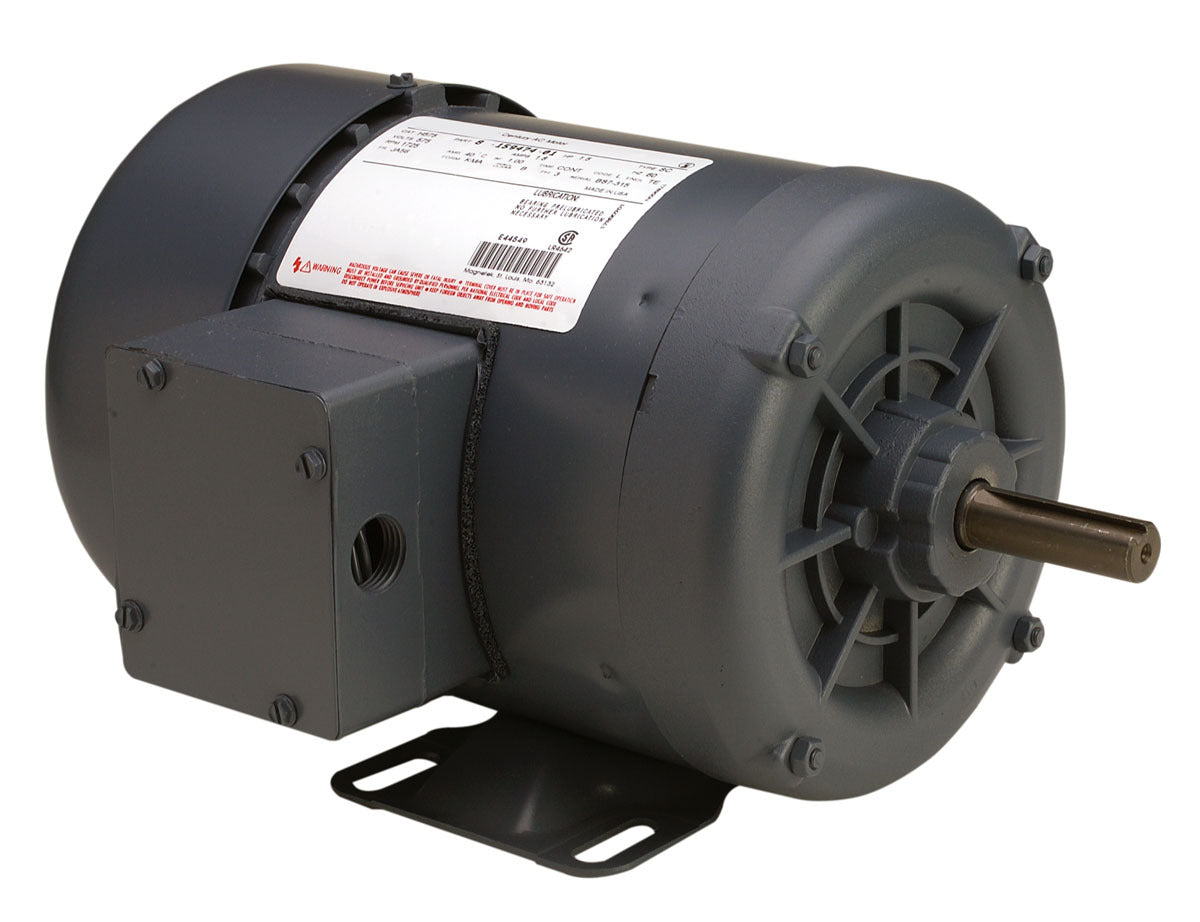

Century UH468 General Purpose Motor 0.75 HP 200-230/460V Replaces 056T11F15542

Product Description

The Century UH468 General Purpose Motor is a versatile and dependable motor designed for various industrial applications. It features a robust construction and reliable performance.

• UL recognized and CSA certified
• Continuous duty cycle for extended operation
• Double-sealed bearings for durability

Product Highlights

This motor provides consistent and durable performance in demanding environments. Ideal for HVAC systems, pumps, and fans.

Product Information

Standard Information

• Brand: Century
• MPN: UH468
• UPC Number: 787000000000
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single or Dual Voltage
• HP: 0.75
• KW: 0.56
• RPM: 1140
• Frame: J56
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Three
• Voltage: 200-230/460
• Rotation: Reversible Counterclockwise
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: Rigid Base
• Amperage: 3.2-3.2/1.6
• Shaft Type: Keyed
• Shaft Extension: 1.94 inches
• Shaft Diameter: 0.625 inches
• Rated Ambient Temperature: 40°C
• Insulation Class: B
• Frequency: 60 Hz
• Poles: 6
• Service Factor: 1.15
• Starting Method: Across The Line
• Certification: UL Recognized, CSA Certified
