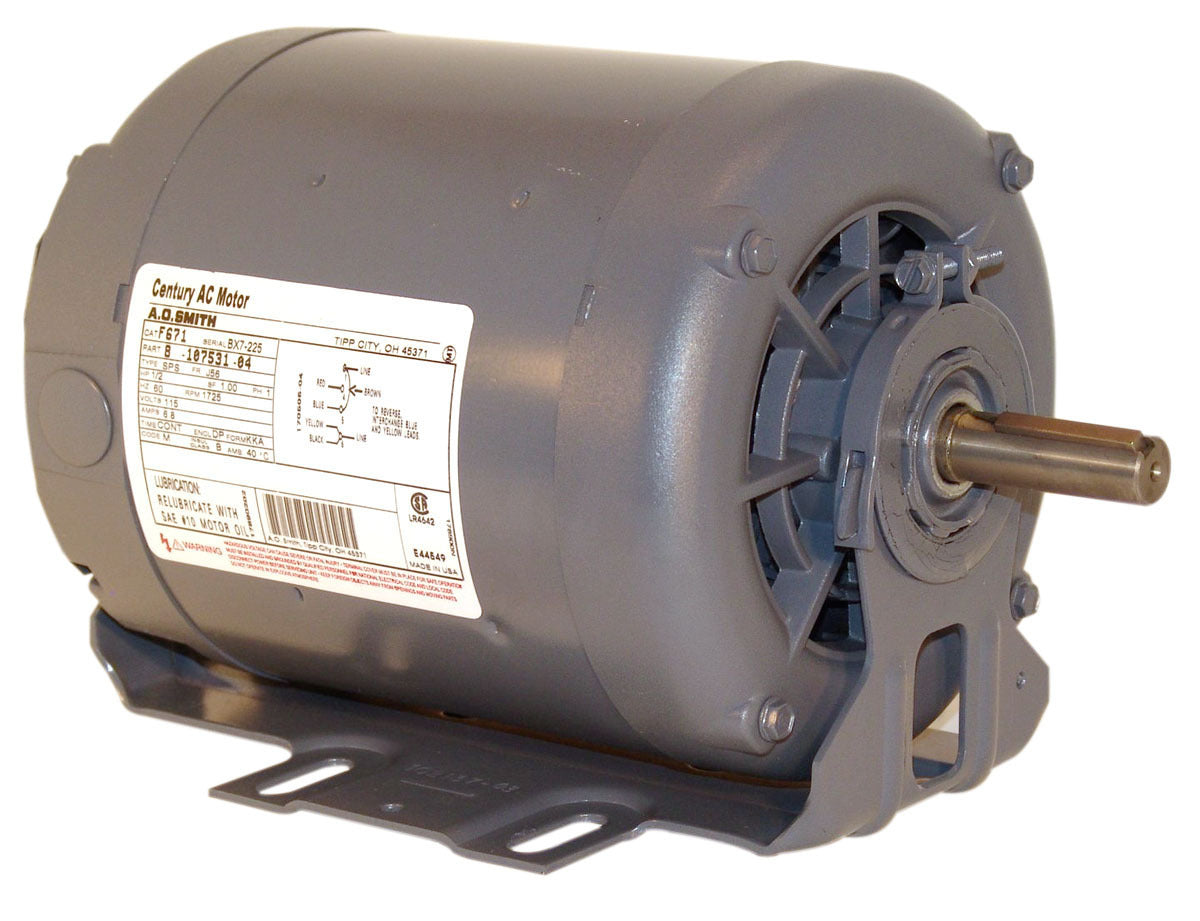

Century UH464 General Purpose Motor Polyphase Induction Type

Product Description

The Century UH464 General Purpose Motor is a robust and durable motor built with precision and efficiency in mind. Designed for a wide range of applications, it is suitable for electricians, HVAC techs, and other trade professionals.

• 1.0 HP with 3450 RPM
• Polyphase with reversible counterclockwise rotation
• Drip-proof enclosure and rolled steel construction

Product Highlights

This motor is recognized by both UL and CSA certifications, ensuring safety and compliance. Made from heavy-duty rolled steel, it offers premium efficiency, durability, and permanently lubricated sealed bearings for a longer lifespan.

Product Information

Standard Information

• Brand: Century
• MPN: UH464

Technical Specifications

• Electrical Type: Polyphase, Induction Type
• HP: 1.0
• KW: 0.75
• Frame: J56
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: Three
• Voltage: 200-230/460
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Amperage: 3.2-3.0/1.5
• Shaft Type: Keyed
• Shaft Extension: 1.974 inches
• Shaft Diameter: 0.625 inches
• RPM: 3450
• Mounting: Cushion Base
