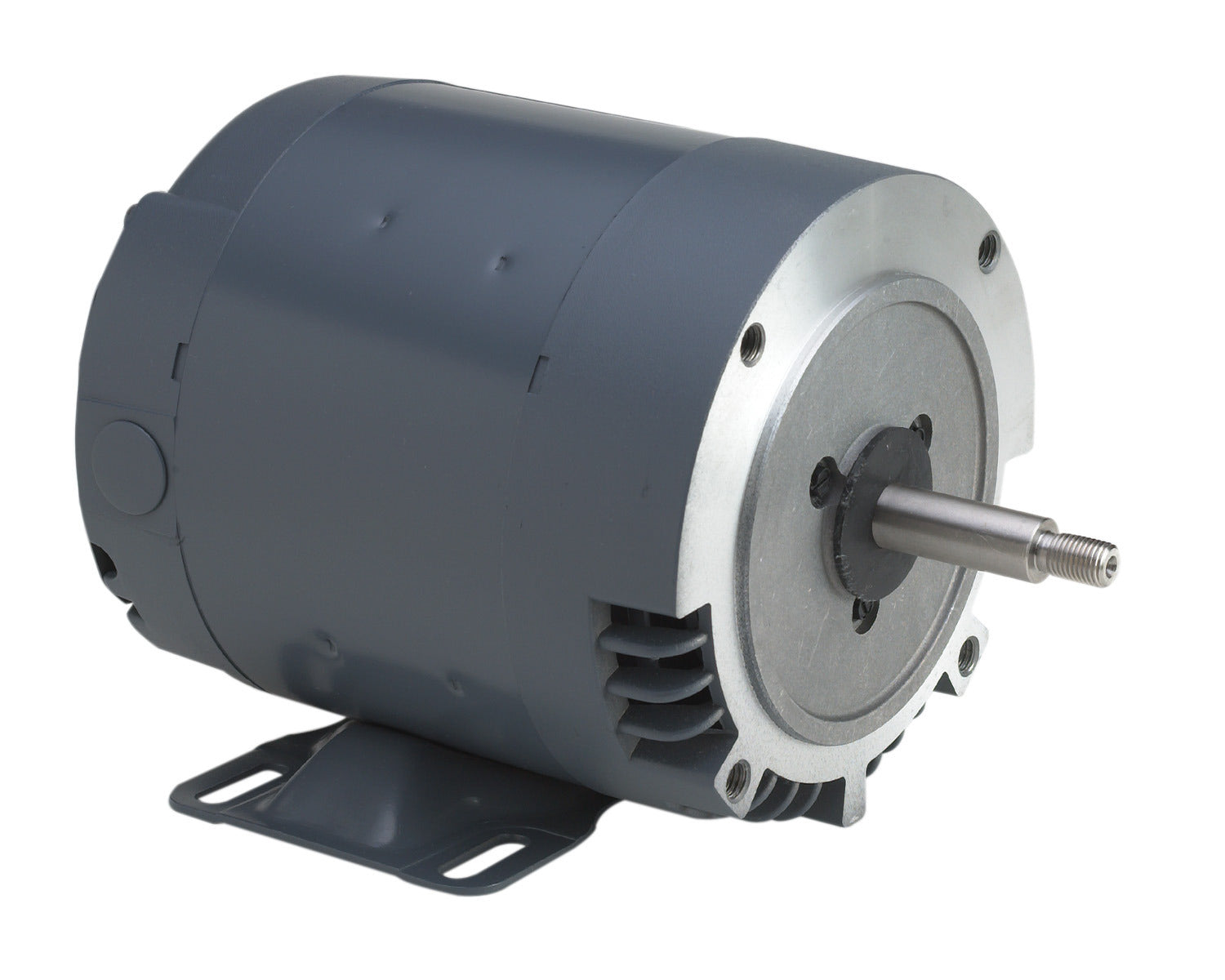

Century UH438 General Purpose Motor 0.5 HP 3-Phase 3450 RPM

Product Description

The Century UH438 General Purpose Motor is designed for diverse applications, featuring efficient and reliable performance. This motor operates at 200-230/460 volts and provides 0.5 horsepower.

• Polyphase, Induction Type
• 3450 RPM
• Rigid base mounting

Product Highlights

The Century UH438 motor is equipped with permanently lubricated sealed bearings, enhancing its lifespan and reducing maintenance costs. Its rolled steel construction ensures durability, and its efficiency promotes reliable operation.

Product Information

Standard Information

• Brand: Century
• MPN: UH438

Technical Specifications

• Horsepower: 0.5
• KW: 0.37
• Frame: B56J
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Voltage: 200-230/460
• Phase: 3
• Amperage: 1.8-2.0/1.0
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Mounting: Rigid Base
• Shaft Type: Threaded
• Shaft Extension: 2.58 inches
• Shaft Diameter: 0.625 inches
• RPM: 3450
• Bearings Type: Ball/Ball
• Certifications: UL Recognized, CSA
