Product Description

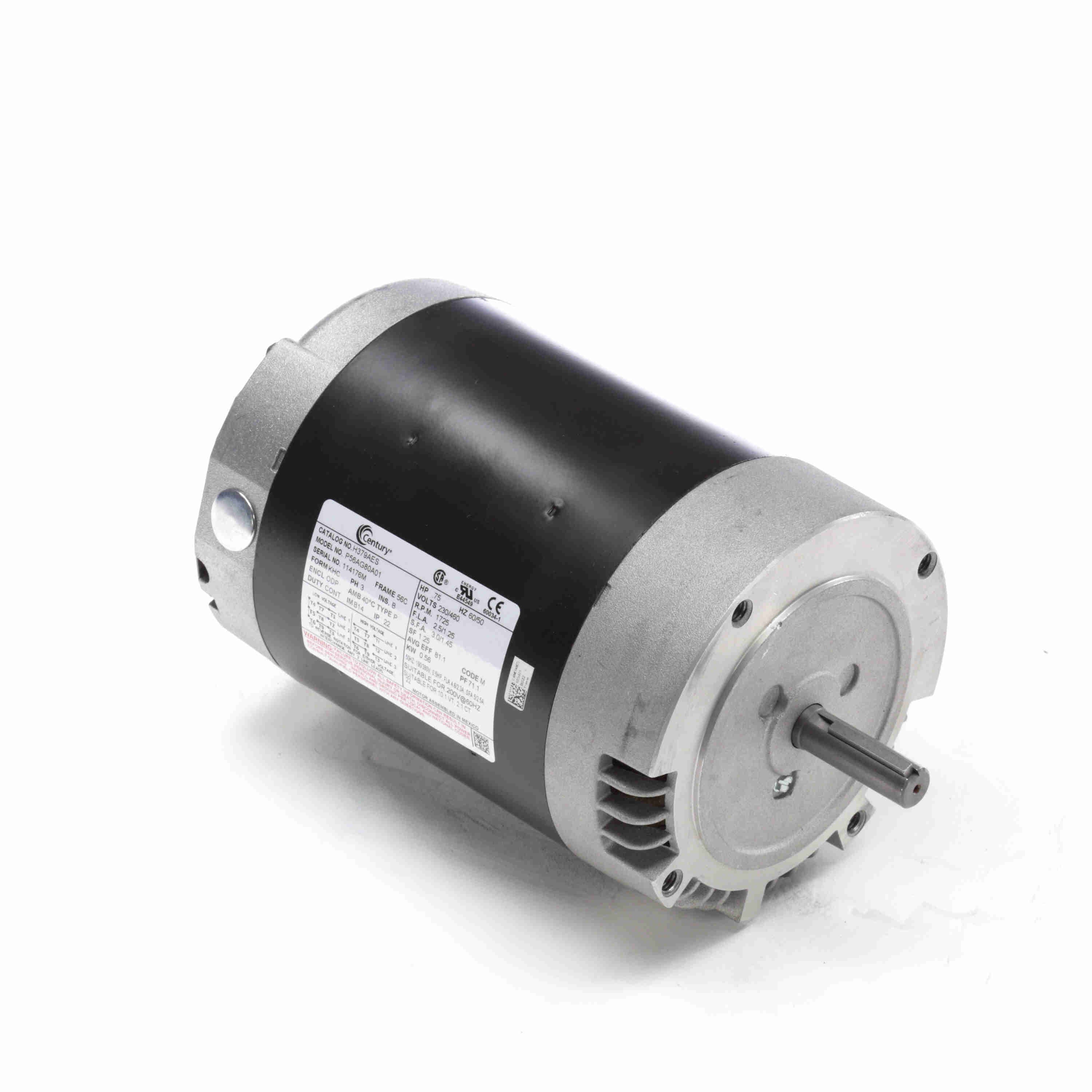

The Century UH379AES General Purpose Motor is a reliable and efficient polyphase motor with 0.75 horsepower. This motor operates at 1725 RPM and is suitable for various industrial applications.
- UL recognized component listing
- CSA Certification
- Heavy-duty rolled steel construction
Product Highlights
This motor is recognized for its premium efficiency and durable construction, making it a preferred choice for trade professionals. The motor features permanently lubricated sealed bearings for extended service life.
Product Information
Standard Information
-
Brand: Century
-
MPN: UH379AES
-
Electrical Type: Polyphase
-
HP: 0.75
-
KW: 0.56
-
RPM: 1725
-
Frame: 56C
-
Diameter: 6.5 inches
-
Enclosure: Open Drip Proof
-
Phase: Three
-
Voltage: 230/460
-
Rotation: Clockwise/Counterclockwise
-
Overload: None
-
Material: Rolled Steel
-
Bearings Type: Ball / Ball
-
Bearings SE Type: Ball
-
Bearings OSE Type: Ball
-
Mounting: Round
-
Amperage: 2.5/1.25
-
Shaft Type: Keyed
-
Shaft Extension: 1.94 inches
-
Shaft Diameter: 0.625 inches
-
Bearings DE Type: Ball
-
Bearings ODE Type: Ball
Technical Specifications
-
UL Certification: Recognized
-
CSA Certification: No
-
Length: 16 inches
-
Width: 9 inches
-
Height: 8 inches
-
Weight: 21 lbs
-
Country of Origin: Mexico
-
Replaced By: 056T17D99082
-
Duty: Continuous
-
Frequency: 60/50 Hz
-
Insulation Class: B
-
Poles: 4
-
Service Factor: 1.25
-
Start Method: Across The Line
-
Ambient Temperature: 40°C
-
C Dimension: 11.57 inches
-
Number of Speeds: 1
