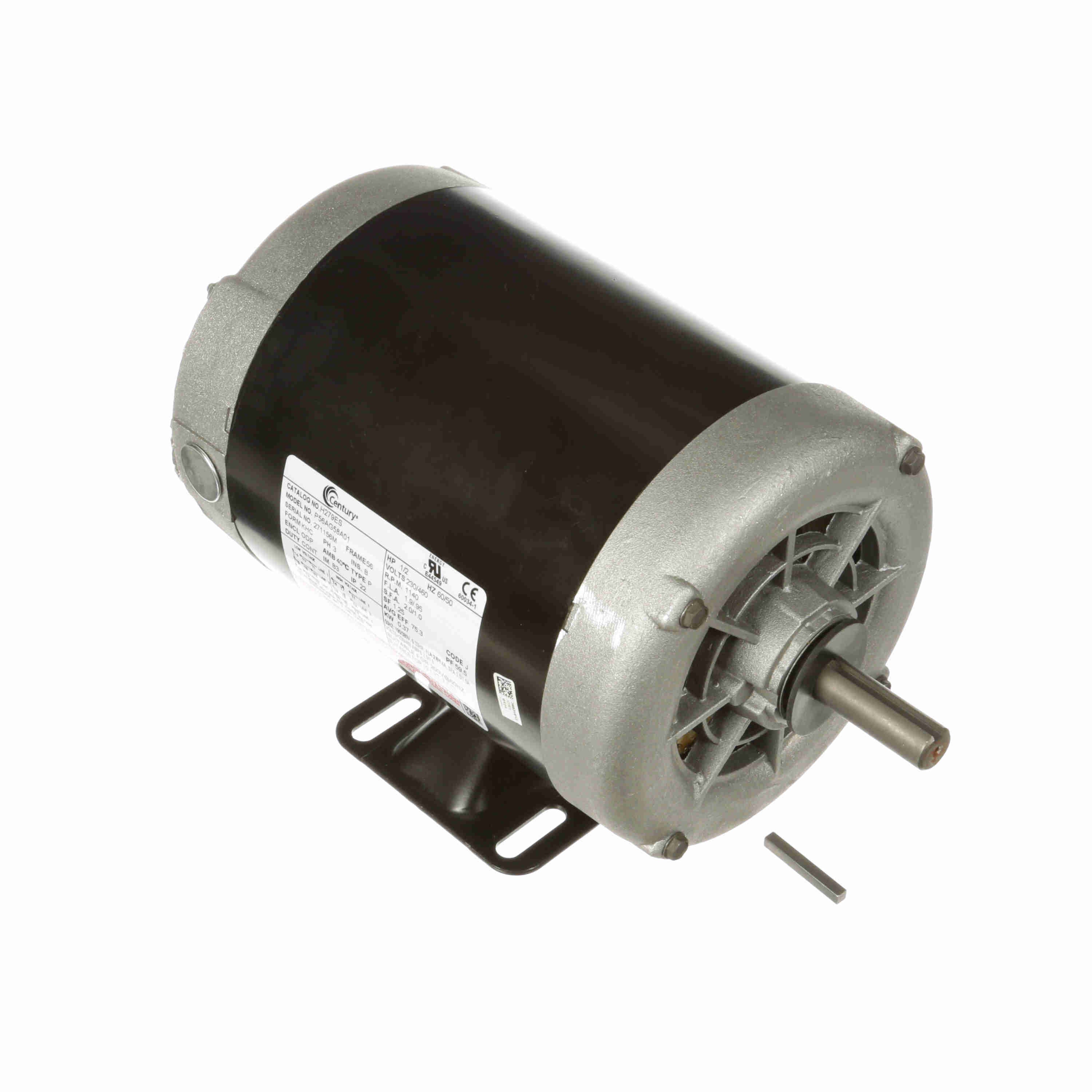

Century UH279ES General Purpose Motor Polyphase 230/460 Volts 0.5 HP 1140 RPM

Product Description

The Century UH279ES general purpose motor is suitable for various industrial applications. This motor offers robust functionality with a 0.5 HP polyphase system.

• UL recognized and CSA certified.
• Open drip-proof construction.
• Permanently lubricated sealed bearings.

Product Highlights

This Century motor promotes improved reliability and durability with its rolled steel construction.

Product Information

Standard Information

• Electrical Type: Polyphase
• Bearings: Ball/Ball

Technical Specifications

• HP: 0.5
• KW: 0.37
• RPM: 1140
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof
• Phase: Three
• Voltage: 230/460
• Rotation: Clockwise/Counterclockwise
• Material: Rolled Steel
• Amperage: 1.9/0.95
• Shaft Type: Keyed
• Shaft Extension: 1.94 inches
• Shaft Diameter: 0.625 inches
• Ambient Temperature: 40°C
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 6
• Service Factor: 1.25
