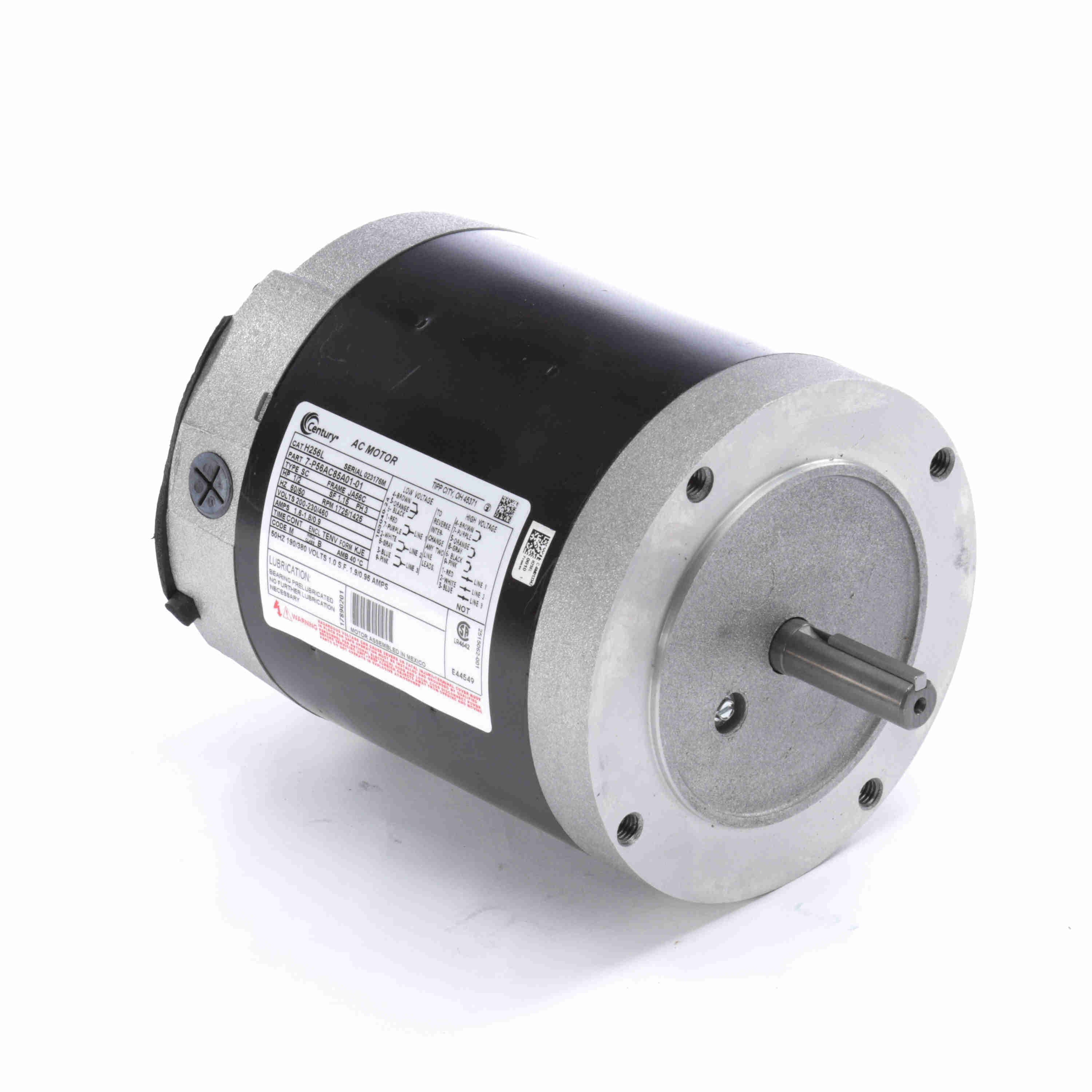

Century UH256L General Purpose Motor 0.5 HP 1725 RPM JA56C Frame

Product Description

The Century UH256L general-purpose motor is robust and versatile. It has a power rating of 0.5 HP and runs at 1725 RPM. With its JA56C frame and totally enclosed non-ventilated enclosure, it ensures durability and longevity.

• UL and CSA certified.
• Permanently lubricated sealed bearings.
• Heavy-duty rolled steel construction.

Product Highlights

This motor is ideal for belt-driven or fan-on-shaft applications. It offers reliable performance with reversible counterclockwise rotation and a keyed shaft extension. Suitable for commercial and industrial use.

Product Information

Standard Information

• Brand: Century
• Model: UH256L

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• Power Rating: 0.5 HP
• RPM: 1725
• Frame: JA56C
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Non Ventilated
• Phase: Three
• Voltage: 200-230/460
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Shaft Extension: 1.94 inches
• Shaft Diameter: 0.625 inches
• Mounting Type: Round
• Amperage: 1.6-1.8/0.9
• Frequency: 60 Hz
• Insulation Class: B
• Service Factor: 1.15
• Duty: Continuous
