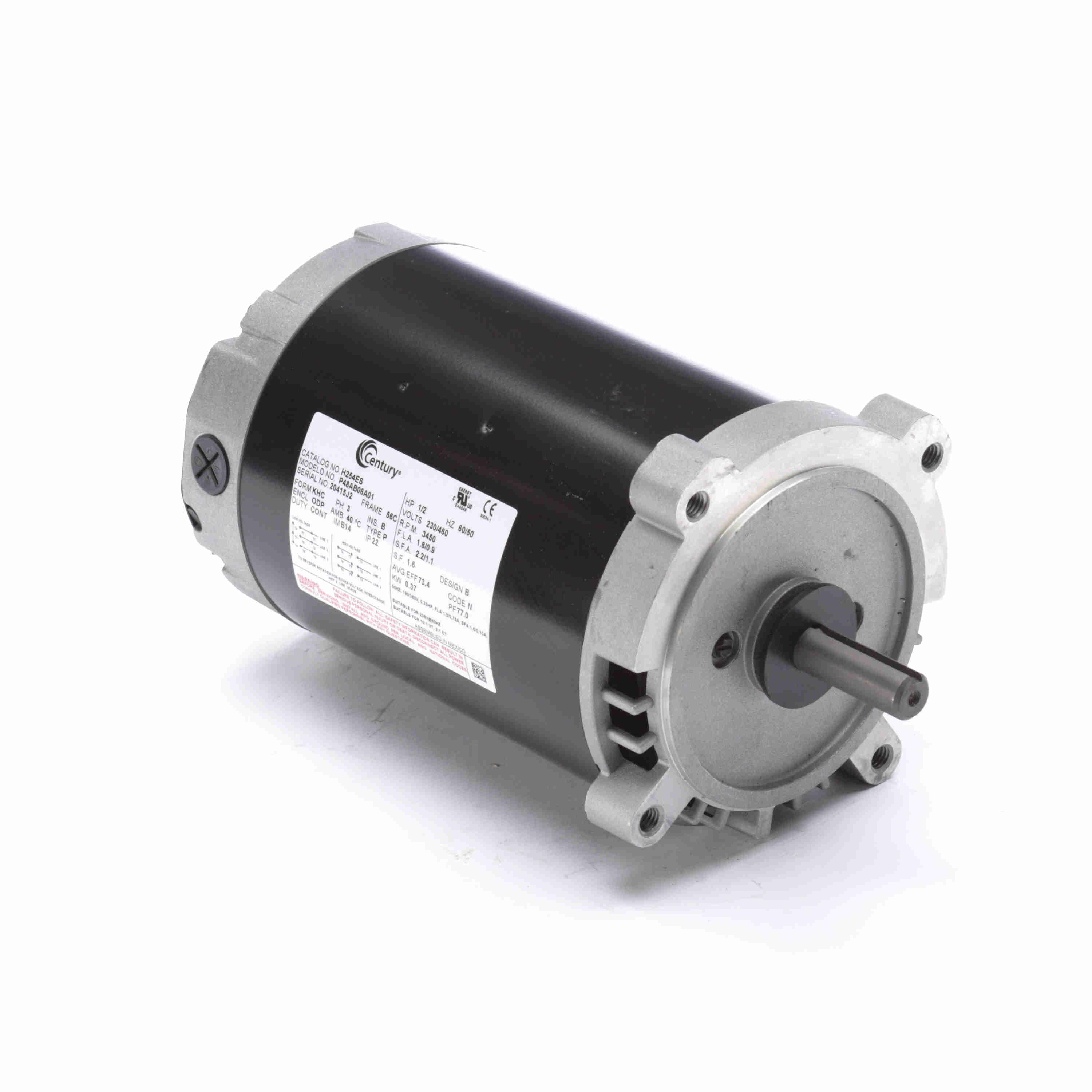

Century UH254ES General Purpose Motor Polyphase 0.5HP 230/460V 3450RPM 56C

Product Description

The Century UH254ES General Purpose Motor is designed for various applications requiring reliable power. This polyphase motor delivers 0.5 horsepower and operates at voltages of 230/460V. Its 3450 RPM speed, along with an open drip-proof enclosure, makes it suitable for multiple environments.

• UL recognized component listing and CSA certification ensures safe usage.
• Premium efficiency for improved reliability.
• Heavy-duty design with permanently lubricated sealed bearings.

Product Highlights

This general-purpose motor features a robust rolled steel construction, ensuring enhanced durability and longevity. It is designed to perform efficiently with minimal maintenance, making it ideal for continuous duty applications.

Product Information

Standard Information

• Brand: Century
• MPN: UH254ES

Technical Specifications

• Electrical Type: Polyphase
• Horsepower: 0.5HP
• KW: 0.37
• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof
• Phase: Three
• Voltage: 230/460
• Rotation: Clockwise/Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Round
• Amperage: 1.8/0.9
• Shaft Type: Keyed
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.94 inches
• RPM: 3450
• Duty: Continuous
• Efficiency: 73.4%
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 2
• Service Factor: 1.6
• Ambient Temperature: 40 degrees Celsius
