Product Description

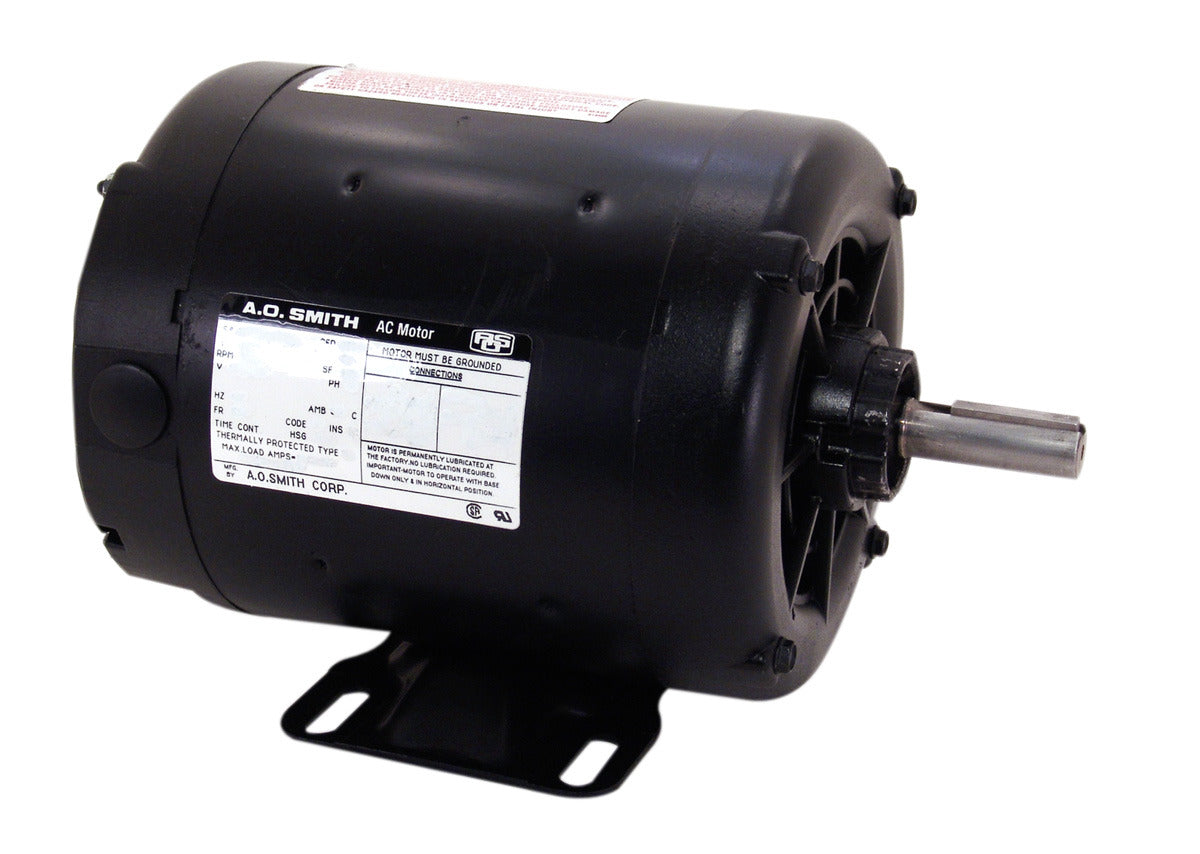

The Century UH238 is a general-purpose motor designed for versatility in various applications. This motor features a one-third horsepower rating and a B56 frame size. Its design supports both single and dual voltage inputs, making it suitable for adaptable electrical needs.
- Durable, rolled steel construction
- Permanently lubricated sealed bearings for extended lifespan
- Reversible counterclockwise rotation
Product Highlights
This motor is UL recognized and CSA certified, ensuring safety and reliability across multiple applications.
Product Information
Standard Information
-
Material: Rolled Steel
-
Mounting Type: Rigid Base
Technical Specifications
-
Voltage: 200-230/460
-
Amperage: 1.3-1.4/.7
-
RPM: 3450
-
Frame Size: B56
-
Shaft Diameter: 0.625 inches
-
Shaft Extension: 1.974 inches
-
Bearings Type: Ball
-
Phase: Three
