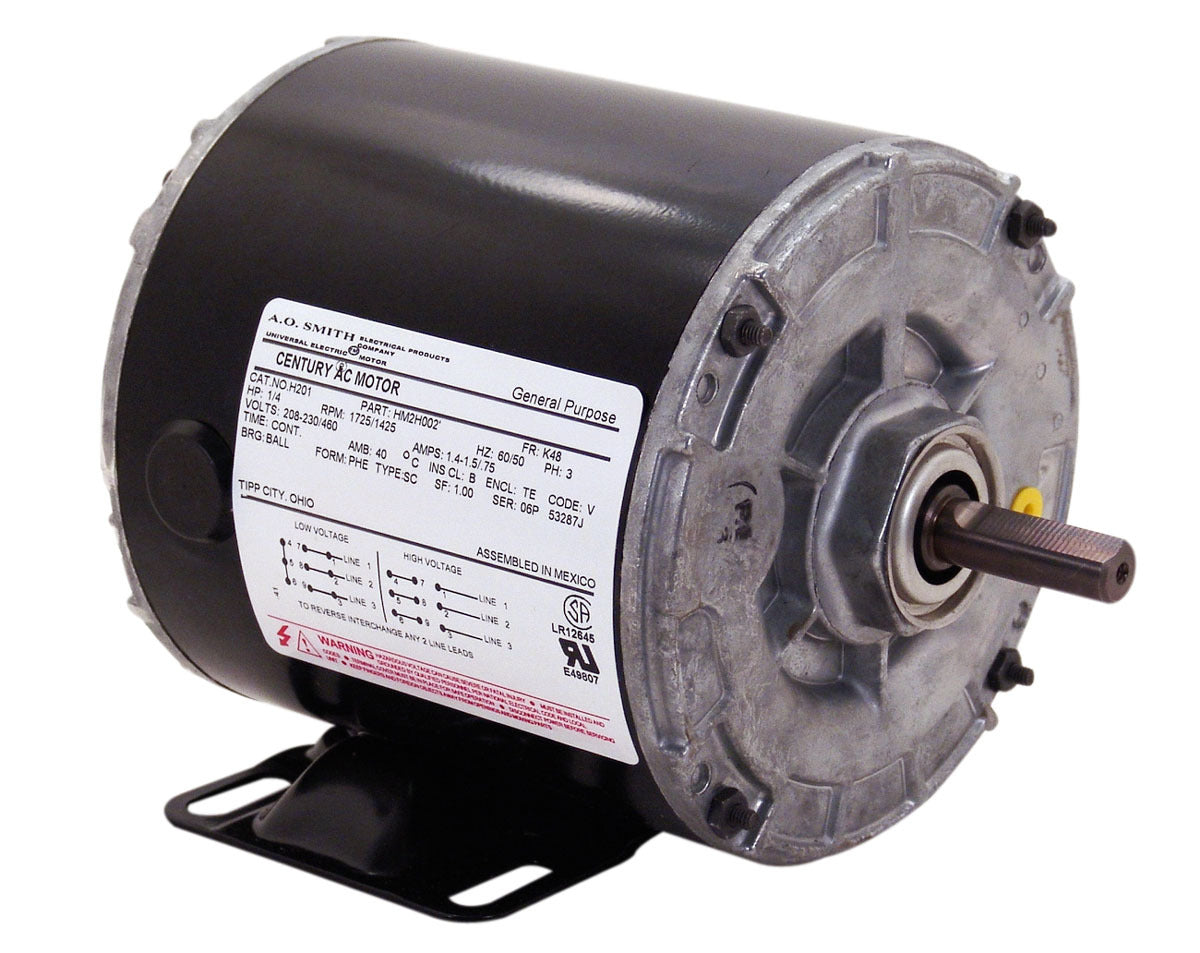

Century UH201 General Purpose Motor 0.25 HP 1725 RPM F48Y Frame

Product Description

The Century UH201 General Purpose Motor is ideal for various industrial and commercial applications. This motor features MPN UH201 and is known for its efficiency and reliability.

• Polyphase Induction Type
• 1/4 HP Motor
• Three Phase Motor

Product Highlights

This Century motor is perfect for use in heating, ventilation, and air conditioning systems. It meets or exceeds all USA mandated efficiencies, ensuring energy-efficient operations.

Product Information

Standard Information

• Brand: Century
• MPN: UH201

Technical Specifications

• Electrical Type: Polyphase, Induction Type
• Horsepower: 0.25 HP
• RPM: 1725
• Frame: F48Y
• Diameter: 5.6 inches
• Enclosure: Totally Enclosed
• Phase: Three
• Voltage: 208-230/460V
• Rotation: Reversible
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 1.4-1.5/0.75
• Shaft Type: Keyed
• Shaft Extension: 2.06 inches
• Shaft Diameter: 0.5 inches
• Ambient Temperature: 40 degrees C
• Frequency: 60/50 Hz
• Insulation Class: B
• Service Factor: 1
• Poles: 4
