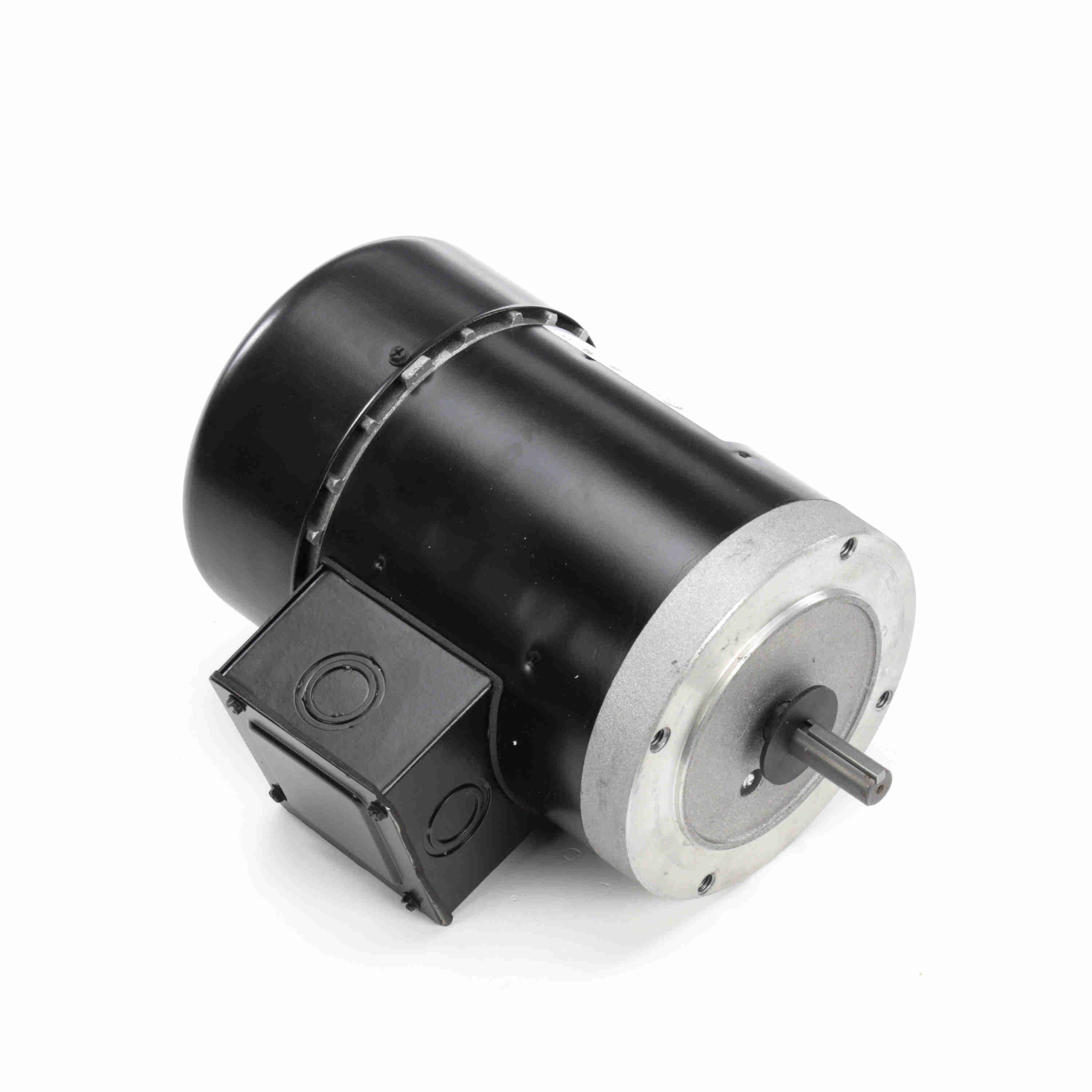

Century UH196ES Motor 2HP 230/460V 3450RPM F56C

Product Description

The Century UH196ES Motor is a versatile and efficient motor, designed for various industrial applications. Operating at 2HP and 3450RPM, it offers reliable performance for demanding tasks.

• 2HP power rating
• 3450RPM operating speed
• Reversible counterclockwise rotation

Product Highlights

This motor features a mechanically locked bearing on the shaft end, double sealed ball bearings, and a 304 stainless steel threaded shaft. It's operational at 230/460V and designed to run smoothly in continuous duty cycles. Ideal for HVAC, pumps, and fans.

Product Information

Standard Information

• Brand: Century
• MPN: UH196ES
• Country of Origin: Mexico

Technical Specifications

• Power: 2HP
• Speed: 3450RPM
• Voltage: 230/460V
• Phase: Three
• Frame: F56C
• Enclosure: Totally Enclosed Fan Cooled
• Rotation: Reversible Counterclockwise
• Mounting: Round
• Shaft Diameter: 0.625 inches
• Amperage: 5.2/2.6
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 2.07 inches
• Material: Rolled Steel
• Operation: 60Hz
• Insulation Class: B
• Service Factor: 1.15
