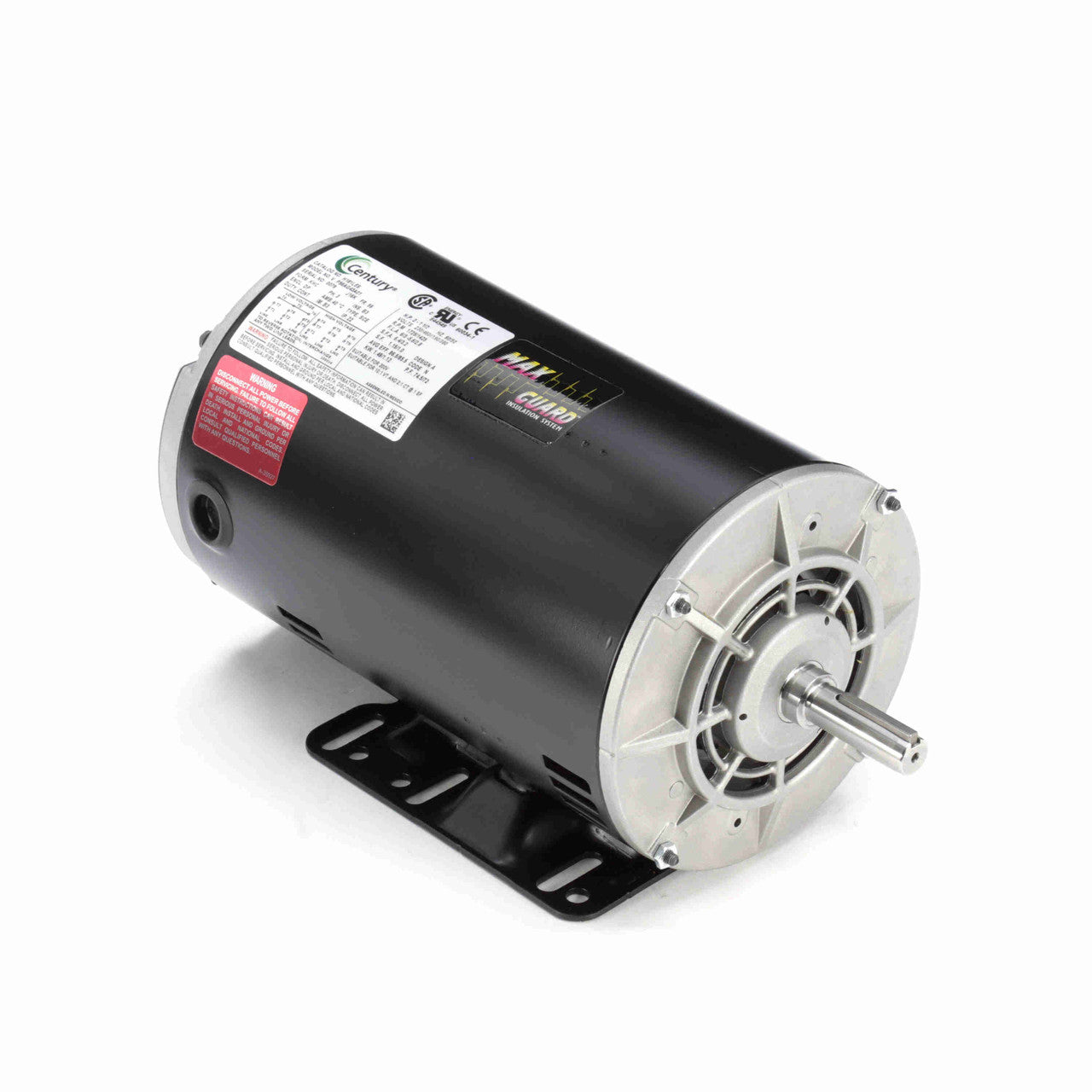

Century Motors UH181LES General Purpose Motor 2 hp 230/460 volts

Product Description

The Century Motors UH181LES is a three-phase general-purpose motor suitable for various applications like pumps, fans, compressors, and conveyors. Designed to operate at 230/460 volts, it provides both performance and reliability for continuous duty use.

• Designed for continuous duty
• Features sealed ball bearings
• Reversible rotation

Product Highlights

This motor is engineered with a NEMA 56 frame, a keyed shaft, and is constructed from rolled steel, ensuring durability in demanding conditions.

Product Information

Standard Information

• MPN: UH181LES
• Brand: Century Motors

Technical Specifications

• Horsepower: 2 hp
• Speed: 1725/1800 rpm
• Frame Size: NEMA 56
• Phase: 3
• Input Voltage: 230/460 volts
• Input Current: 6.0/3.0 amps
• Service Factor: 1.15
• Speed Type: Single
• Enclosure Type: Open Drip Proof (ODP)
• Shaft Type: Keyed
• Shaft Diameter: 5/8
• Shaft Length: 1 5/8
• Overall Length: 13.44
• Base Type: Rigid
• Rotation: Reversible
• Bearing Type: Ball bearings
• Insulation Class: Class B
• Overload Protection: None
• Material: Rolled steel
