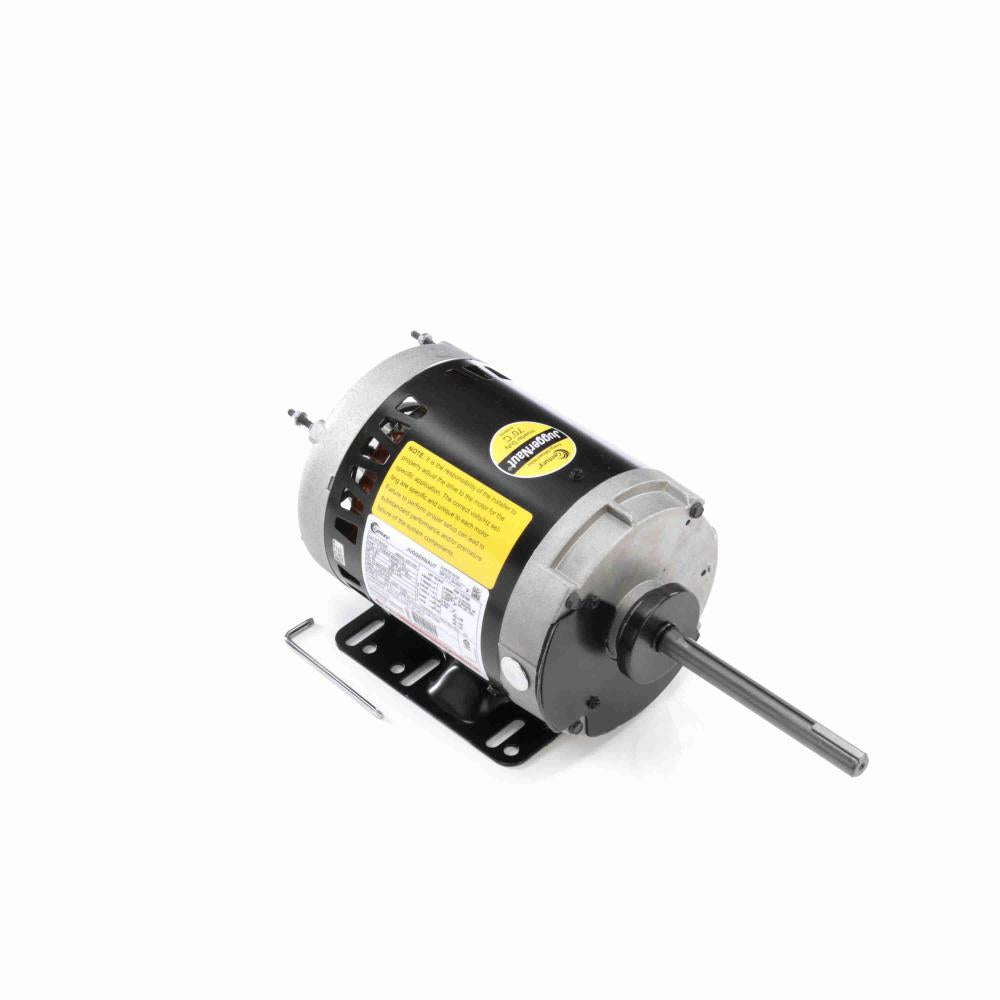

CENTURY MOTORS UH1055A Condenser Fan Motor 1/2 HP (56HZ Frame)

Product Description

The CENTURY MOTORS UH1055A is a three-phase condenser fan motor suitable for various applications. This motor operates at 200-230/460 volts and provides a consistent performance with a speed of 1140 RPM. It has a 56HZ frame and utilizes ball bearings for smooth operation. With Class F insulation, the motor ensures durability and reliability in demanding environments.

• Horsepower: 1/2 HP
• Reversible rotation for flexible installation
• Open enclosure with removable base for easy mounting

Product Highlights

This motor is inverter duty rated and features automatic overload protection, making it a dependable choice for HVAC systems.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UH1055A

Technical Specifications

• Horsepower: 1/2
• Voltage: 208-230/460V
• Current: 2.80-2.60/1.30 Amps
• RPM: 1140
• Frequency: 60 Hz
• Length: 10-3/32 inches
• C Dim.: 16-3/32 inches
• Enclosure: Open Drip Proof
• Shaft Dimension: 5/8 x 6.00 inches
• Motor Type: Three Phase
• Number of Speeds: 1
• Diameter: 6-1/2 inches
• Frame: 56HZ
• Bearing Type: Ball
• Rotation: Reversible
• Overload Protector: Automatic
• Service Factor: 1.00
• Phase: 3
• Ambient Temperature: 70C
• Features: Removable Base, Class F Insulation, Inverter Duty
• Weight: 30 lbs
• Mounting Type: Removable Base
