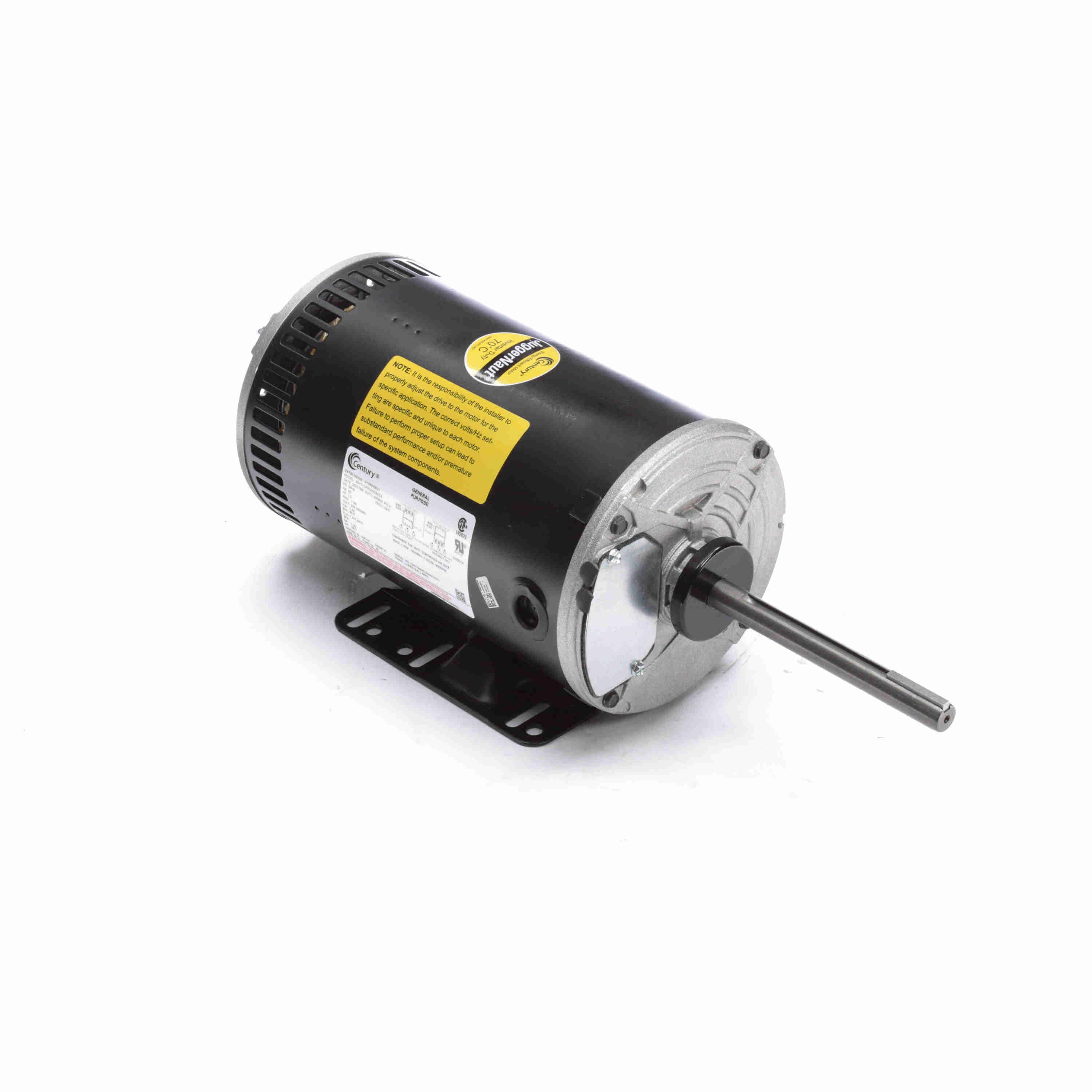

Century Motors UH1052RB H1052RBV1 - 2.0 HP Condenser Fans HVAC/R Motor, 3 phase, 1200 RPM, 208-230/460 V, 56HZ Frame, OPAO
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Specifications:
Length: 22.00
Width: 12.00
Height: 12.00
Dimension Unit of Measure: IN
Weight: 43.00
Units in Package: 1
Power Rating (In HP): 2
Power Rating (In KW): 1.5
Speed (Max): 1140
Voltage: 208-230/460
Frame Size: 56
Enclosure Type: Open Air Over
Rotation: Reversible
Mounting Type: Rigid base
Max Ambient: 70C
Shaft Diameter ( In in.): 0.625
C Dim: 18.01
Connection Drawing No: DD10027-001
DE Bearing Type: Ball
Duty: Continuous
Electrical Type: Three Phase
Frame Length: 9.65
Frame Material: Rolled Steel
Frame Type: 56HZ
Frequency: 60
HP2: 2.0
Number of Poles: 6
Number of speeds: 1
ODE Bearing Type: Ball
Outline Drawing No: OL56100124-001
Service Factor: 1
Shaft Extension: 6
Shaft Type: Keyed
Speed2: 1140
Starting Type: Across The Line
Thermally Protected
