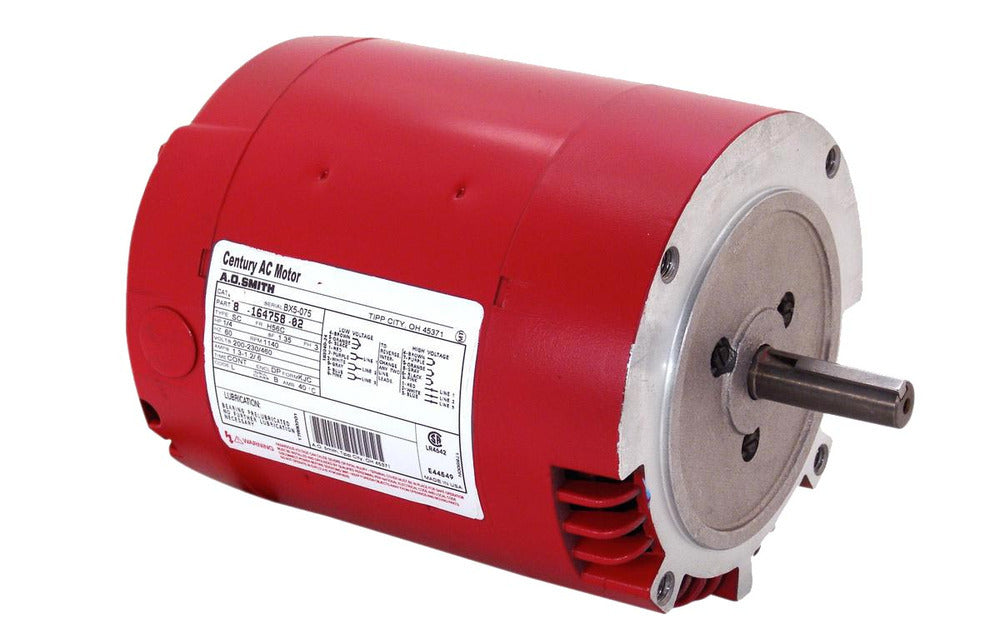

Century UH1049 Circulator Pump Motor 1.5 HP 575V 1725 RPM

Product Description

The Century UH1049 Circulator Pump Motor is a reliable choice for trade professionals. This Century motor provides powerful performance and is suitable for various applications. Designed for three-phase operations, it delivers 1.5 horsepower and operates at 1725 RPM.

• Polyphase, Induction Type
• 1.5 HP
• Reversible Counterclockwise Rotation

Product Highlights

This motor features a reversible counterclockwise rotation and is built from durable rolled steel. It supports single or dual voltage and is designed for continuous duty. It includes a keyed shaft, and it's excellent for HVAC systems and circulator pumps.

Product Information

Standard Information

• Brand: Century
• MPN: UH1049
• Type: Circulator Pump Motor

Technical Specifications

• HP: 1.5
• KW: 1.1
• RPM: 1725
• Frame: T56CZ
• Diameter: 6.5
• Enclosure: Drip Proof
• Phase: Three
• Voltage: 575
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Round
• Amperage: 2.2
• Shaft Type: Keyed
• Shaft Extension: 1.5
• Shaft Diameter: 0.625
• Duty: Continuous
• Frequency: 60
• Insulation Class: B
• Poles: 4
• Service Factor: 1.35
• Start Method: Across The Line
• Certification CSA: Yes
• Certification UL: Recognized
• Length: 16 inches
• Width: 8 inches
• Height: 10 inches
• Weight: 31
• Country of Origin: Mexico
