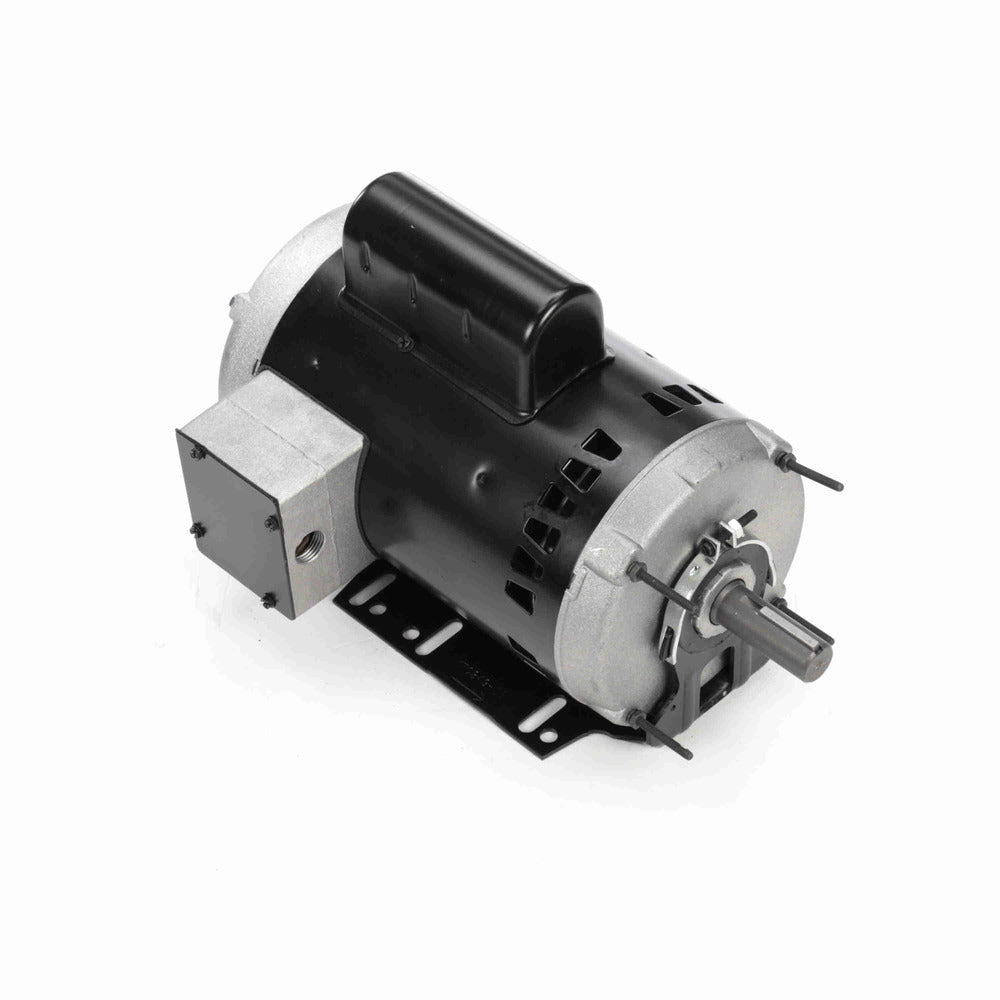

Century UH1039L Fan and Blower Motor 5 HP 3.7 KW 2 Phase

Product Description

The Century UH1039L Fan and Blower Motor is a solid solution for HVAC systems. This motor is designed for three-phase applications and delivers up to 5 horsepower with a power output of 3.7 kilowatts. It features a robust rolled steel construction.

• Three-phase electrical type
• 5 horsepower output
• 208-230-460 voltage range

Product Highlights

This fan and blower motor has a diameter of 6.5 inches and is mounted with a cushion base. It rotates in reverse and is equipped with ball bearings for durability.

Product Information

Standard Information

• Brand: Century
• Model: UH1039L
• Type: Fan and Blower Motor
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 5
• Power Output: 3.7 KW
• Frame: 56HZ
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Three
• Voltage: 208-230-460
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Cushion Base
• Amperage: 13.4-13.2/6.6
• Shaft Type: Keyed
• Shaft Extension: 2.309 inches
• Shaft Diameter: 0.875 inches
• Certifications: CSA, UL Recognized
• Ambient Temperature: 40 degrees Celsius
• Duty: Continuous
• Insulation Class: B
