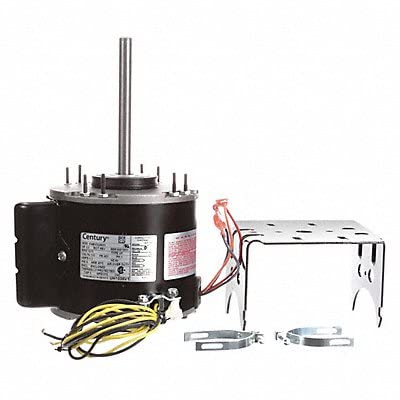

Regal Rexnord - Century Motors UH1036V1 Unit Heater Motor 1/3HP 115V 1075RPM 1 Speed

Product Description

The Regal Rexnord - Century Motors UH1036V1 Unit Heater Motor is a single phase, permanent split capacitor motor designed for reliable performance. This motor operates at a power of one-third horsepower, with a nameplate RPM of one thousand seventy-five. Its construction allows for continuous duty operation and is built to withstand a maximum ambient temperature of forty degrees Celsius.

• Voltage: 115V AC
• Full Load Amps: 5.0
• Frame Size: 48Y

Product Highlights

This motor is suitable for HVAC applications, particularly in unit heaters. It offers reversible rotation and features thermal protection for safe operation.

Product Information

Standard Information

• Manufacturer: Regal Rexnord - Century Motors
• MPN: UH1036V1

Technical Specifications

• HP: 1/3
• RPM: 1075
• Amperage: 5.3
• Phase: Single
• Mounting Type: Ring/Stud
• Motor Application: Unit Heater
• Motor Enclosure: Totally Enclosed
• Service Factor: 1
