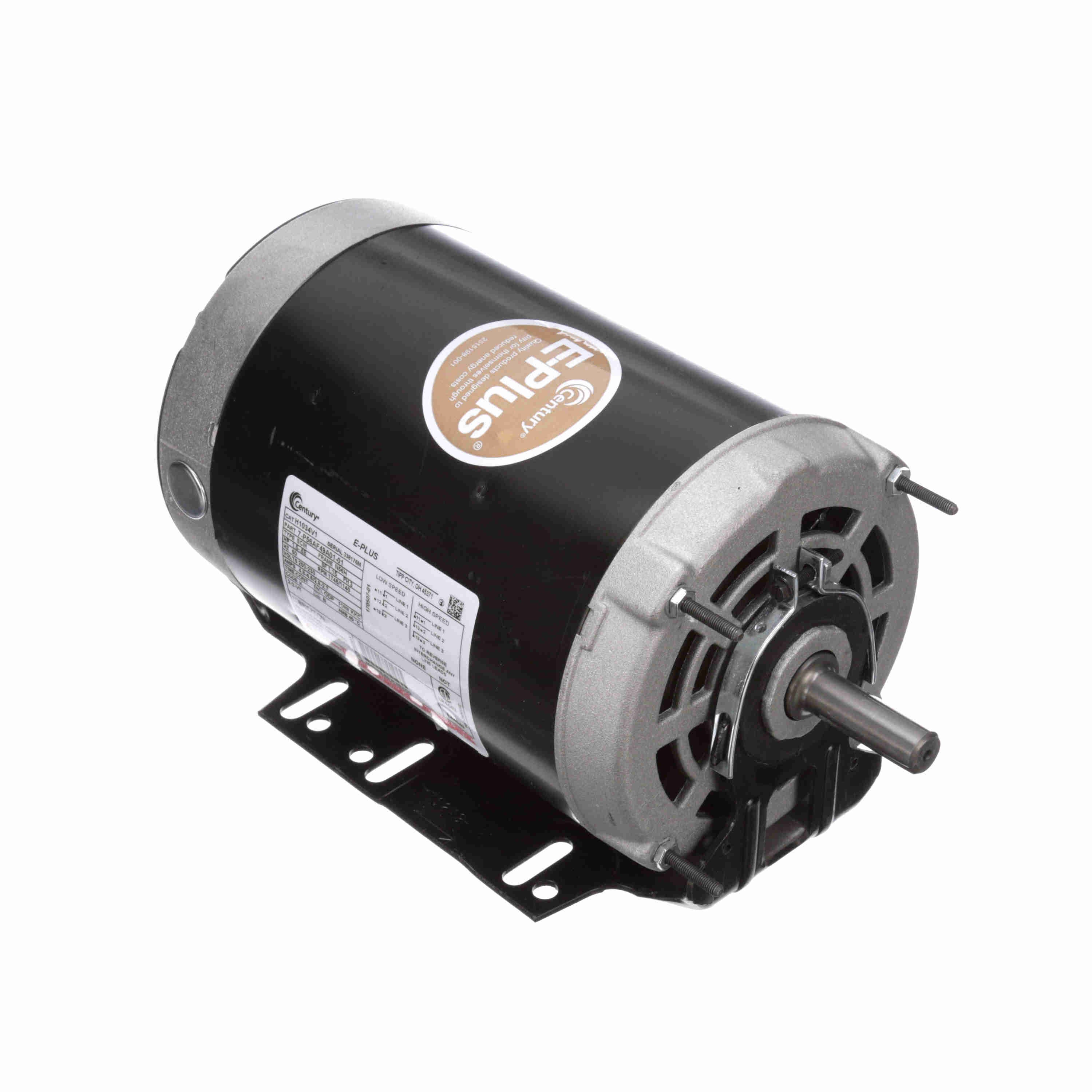

Century UH1034V1 Two Speed Two Winding Motor 1.5 HP 200-230V

Product Description

The Century UH1034V1 is a two speed, two winding motor designed for efficiency and dependability. This motor operates at a horsepower range of one point five to zero point six eight and is suitable for various applications where multi-speed functionality is required.

• Electrical Type: Polyphase, Induction Type, Multi-Speed
• Voltage: 200-230
• Rotation: Reversible Counterclockwise

Product Highlights

Engineered for reliability, this motor features a robust rolled steel construction and is UL recognized for safety in diverse settings.

Product Information

Standard Information

• Type: Motor > Definite Purpose Motor > Two Speed Two Winding Motor
• Country of Origin: Mexico

Technical Specifications

• HP: 1.5-0.68
• RPM: 1745
• Amperage: 4.8-4.6/2.8-2.7
• Shaft Diameter: 0.625
• Dimensions: 14 inches (Length) x 8 inches (Width) x 8.5 inches (Height)
• Weight: 48 lbs
• Frame: N56H
• Enclosure: Open Drip Proof
• Material: Rolled Steel
• Bearings Type: Ball
• Mounting Type: Resilient Base
