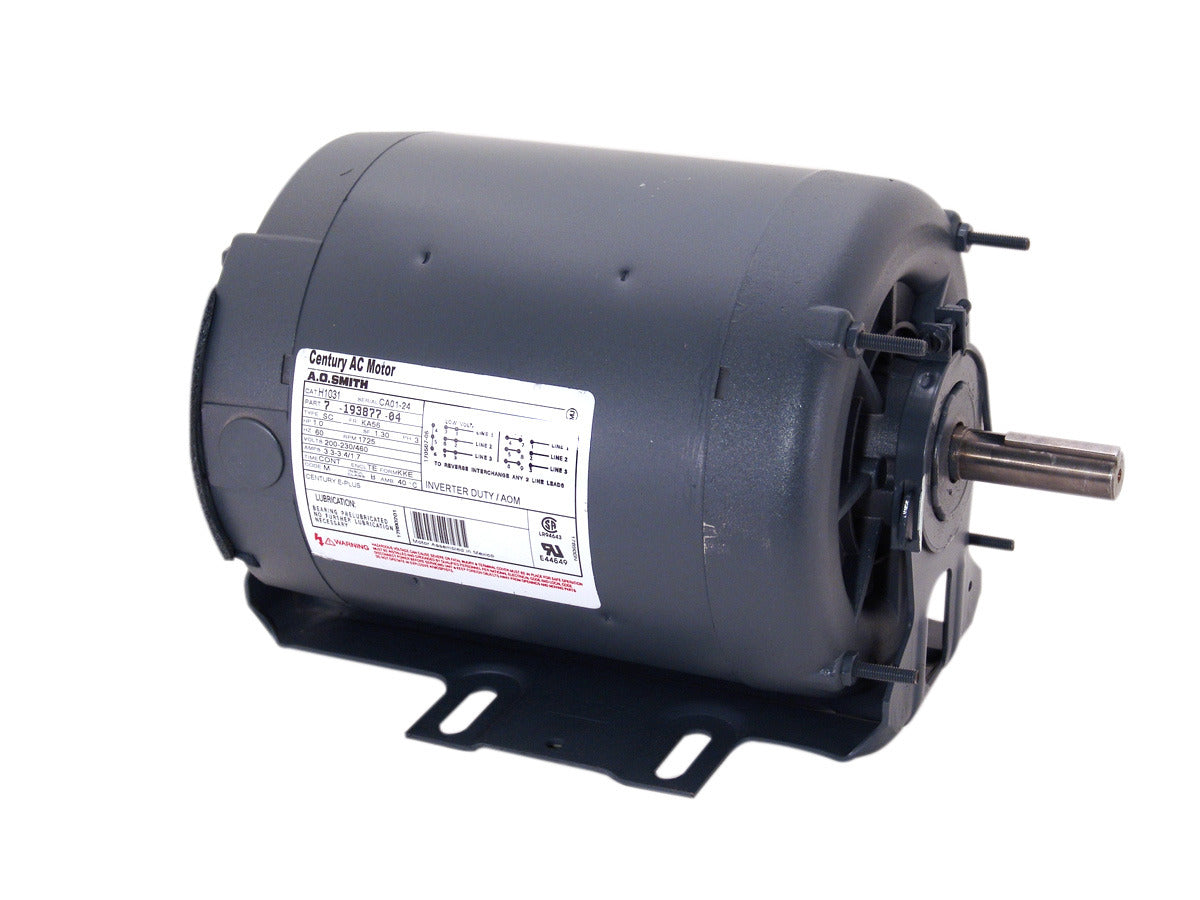

Century UH1031 Fan and Blower Motor 1 HP 1725 RPM KA56 Frame

Product Description

The Century UH1031 Fan and Blower Motor is a reliable and efficient solution for various applications. It features a polyphase induction type construction and can operate at single or dual voltages. With a power rating of 1 HP, this motor runs at 1725 RPM and fits the KA56 frame size.

• UL recognized and CSA certified
• Heavy-duty rolled steel construction
• Continuous air over duty design

Product Highlights

The Century UH1031 Fan and Blower Motor is designed for durability and consistent performance. This motor is ideal for HVAC systems, blowers, and fans, ensuring reliable operation in demanding environments.

Product Information

Standard Information

• Brand: Century
• Model: UH1031
• Type: Fan and Blower Motor
• Certification: UL Recognized, CSA Certified

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• HP: 1
• RPM: 1725
• Frame: KA56
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Air Over
• Phase: Three
• Voltage: 200-230/460
• Rotation: Reversible Counterclockwise
• Overload Protection: None
• Material: Rolled Steel
• Mounting: Cushion Base
• Amperage: 3.3-3.4/1.7
• Shaft Type: Keyed
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.94 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 4
• Service Factor: 1.15
• C Dimension: 11.45 inches
