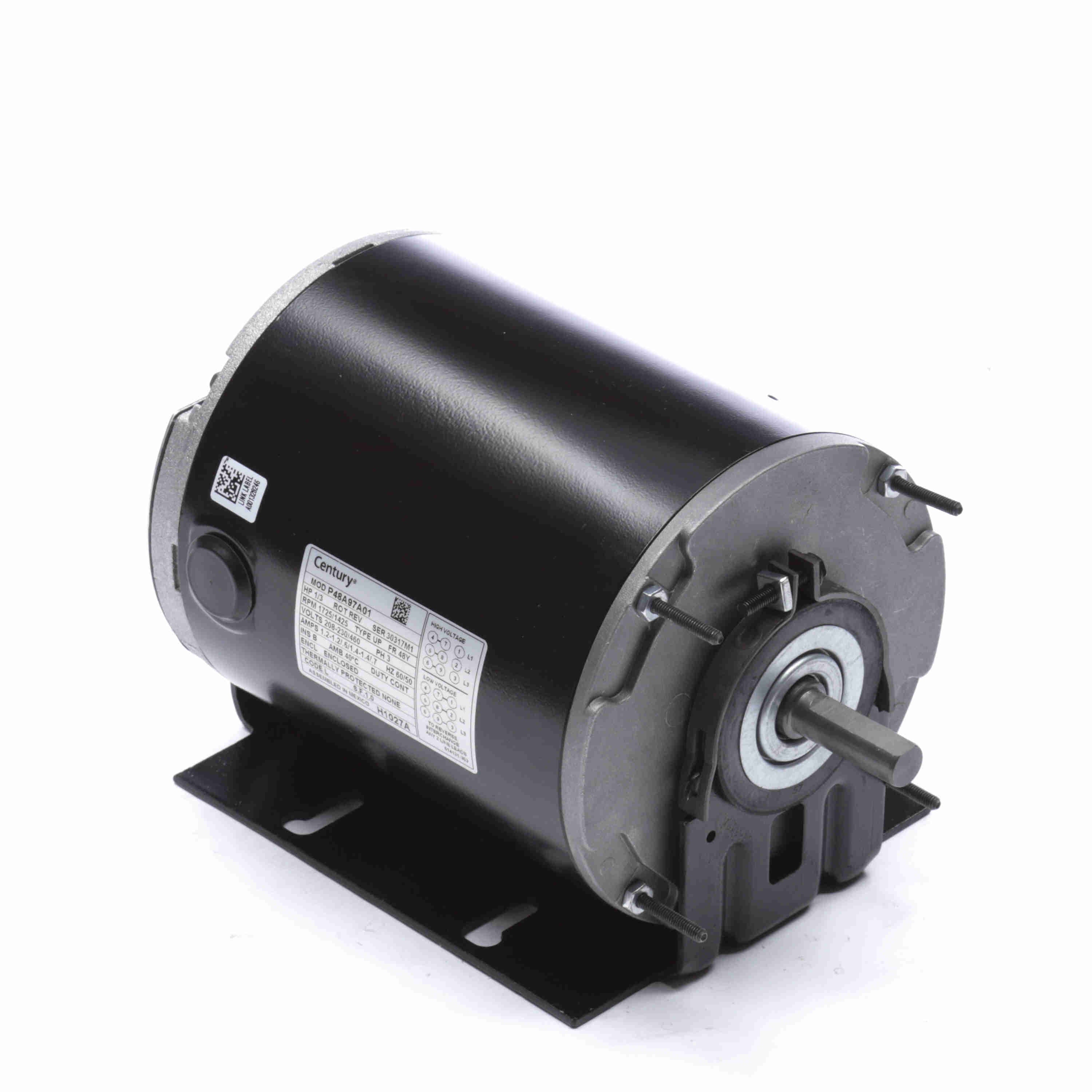

Century UH1027A General Purpose Motor 1/3 HP 208-230/460V

Product Description

The Century UH1027A General Purpose Motor is designed for versatile applications. This 1/3 HP motor operates at 1725 RPM and is built with a rolled steel frame for durability. It runs on 208-230/460 volts, offering flexibility across various power supplies.

• Three-phase motor
• Totally enclosed air over design
• Reversible rotation

Product Highlights

The Century UH1027A is a robust motor suitable for general-purpose applications. Its totally enclosed air over design allows it to operate efficiently in demanding environments. The motor features double-shielded bearings for extended service life.

Product Information

Standard Information

• Brand: Century
• MPN: UH1027A
• Country of Origin: Mexico
• Certifications: UL recognized and CSA certified

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 1/3 HP
• Power: 0.25 KW
• RPM: 1725
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: Totally Enclosed Air Over
• Voltage: 208-230/460
• Rotation: Reversible
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 1.2-1.2/.6,1.4-1.4/.7
• Shaft Type: Flat
• Shaft Extension: 1.97 inches
• Shaft Diameter: 0.5 inches
