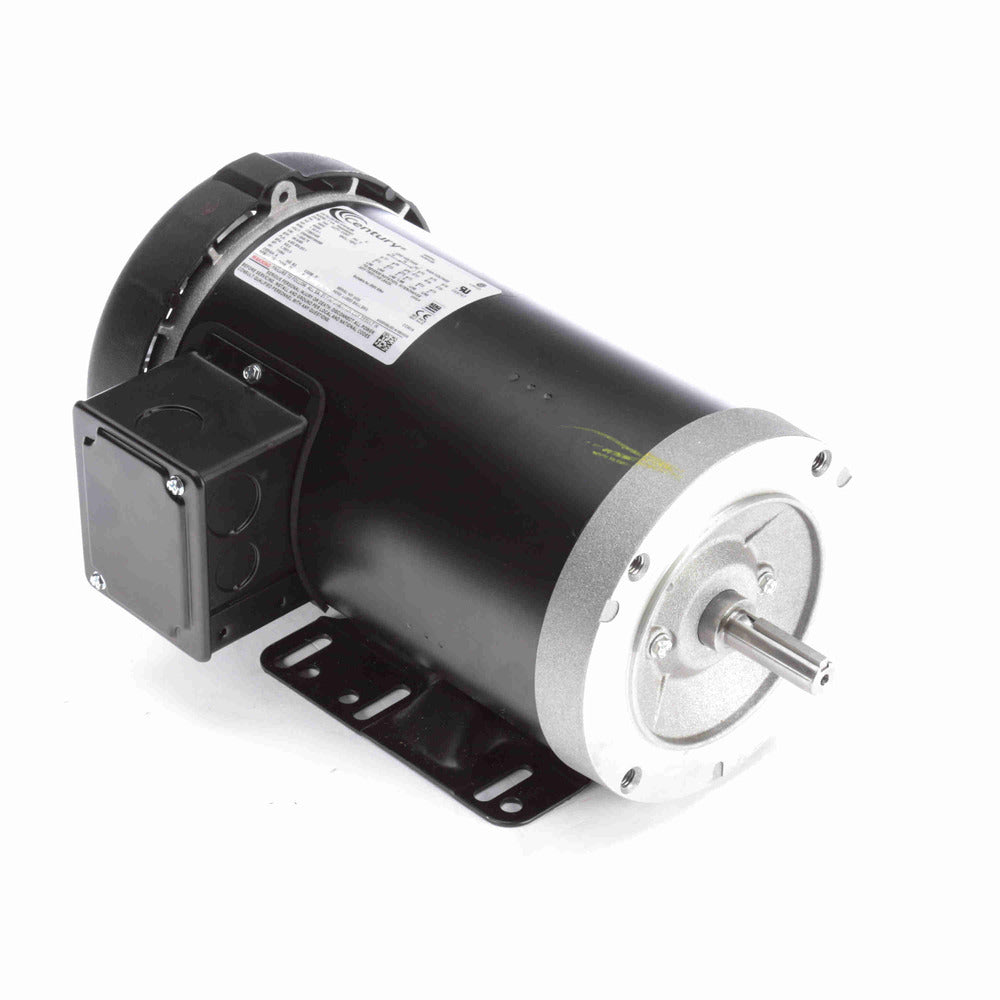

Century UH1014LES General Purpose Motor Three Phase 1 1/2 HP 1725 RPM 56HC Frame

Product Description

The Century UH1014LES General Purpose Motor is a versatile motor suitable for various industrial applications. With a power output of 1 1/2 HP, it operates at 1725 RPM, making it an efficient choice for machinery requiring three-phase power.

• Three-phase electrical type
• 1 1/2 HP power output
• 1725 RPM speed

Product Highlights

This motor is built with a 56HC frame and a rigid base mounting, ensuring stability during operation. It features a TEFC enclosure and is made of rolled steel for durability. The motor runs on 230/460 volts and has a single shaft type with reverse rotation capability.

Product Information

Standard Information

• Brand: Century
• Model: UH1014LES

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 1 1/2
• RPM: 1725
• Frame: 56HC
• Diameter: 6.5
• Enclosure: TEFC
• Voltage: 230/460
• Rotation: REV
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 4.6/2.3
• Shaft Type: Single
