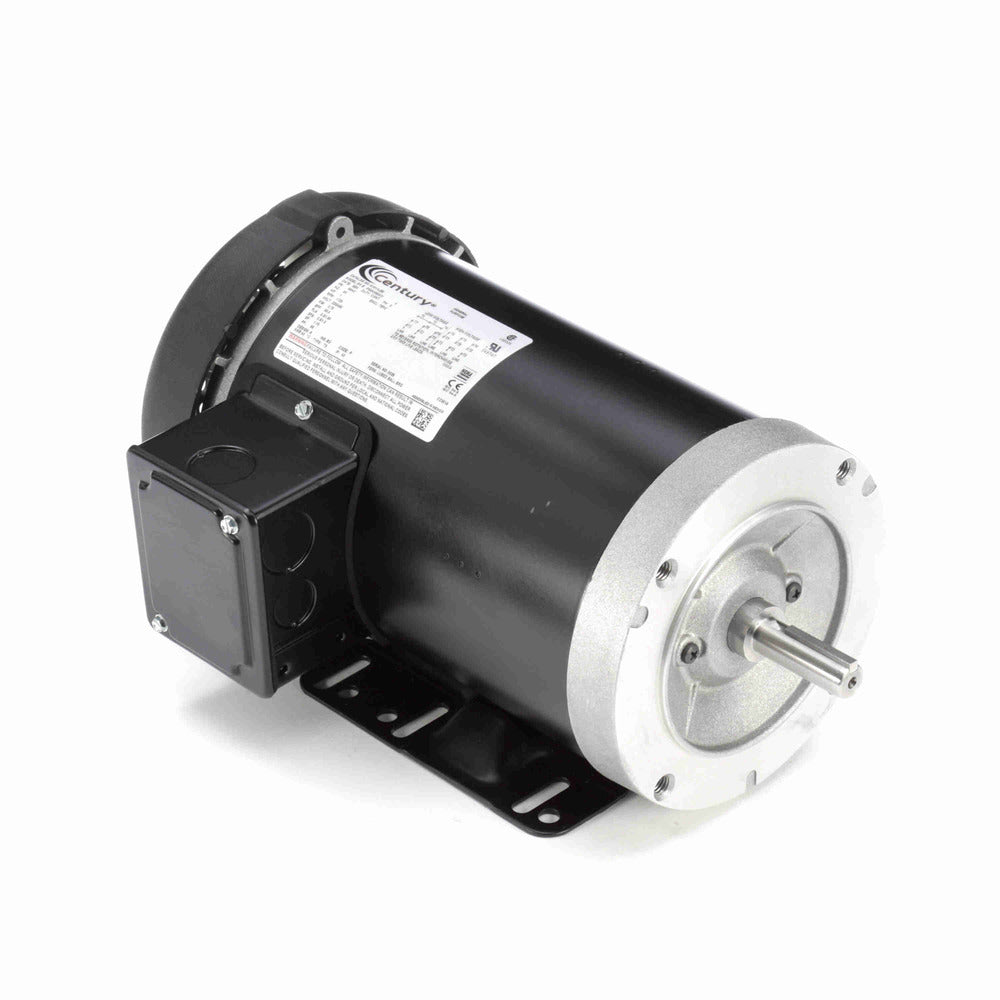

Century UH1011LES General Purpose Motor Three Phase 1.0 HP 230/460 Volts

Product Description

The Century UH1011LES General Purpose Motor is a versatile three-phase motor designed for various applications. With a power rating of 1.0 HP, it operates at 1725 RPM and is built with a totally enclosed fan-cooled design. The motor's rolled steel construction provides durability, while the reversible rotation feature adds flexibility.

• Three-phase motor with 1.0 HP and 1725 RPM.
• Totally enclosed fan-cooled design.
• Reversible rotation for flexible use.

Product Highlights

The Century UH1011LES motor is UL recognized and CSA certified, ensuring safety and compliance. Ideal for continuous operation at rated power, it features Class B or F insulation for maximum temperature protection and permanently lubricated, double-sealed bearings for extended motor life.

Product Information

Standard Information

• Brand: Century
• MPN: UH1011LES

Technical Specifications

• Electrical Type: Three Phase
• Power: 1.0 HP
• KW: 0.75
• RPM: 1725
• Frame: 56HC
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Three
• Voltage: 230/460 Volts
• Rotation: Reversible
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 3.3/1.65
• Shaft Type: NEMA 56
• Shaft Extension: 1.88 inches
• Shaft Diameter: 0.625 inches
• Duty: Continuous
• Insulation Class: B
• Frequency: 60 Hz
• Number of Speeds: 1
