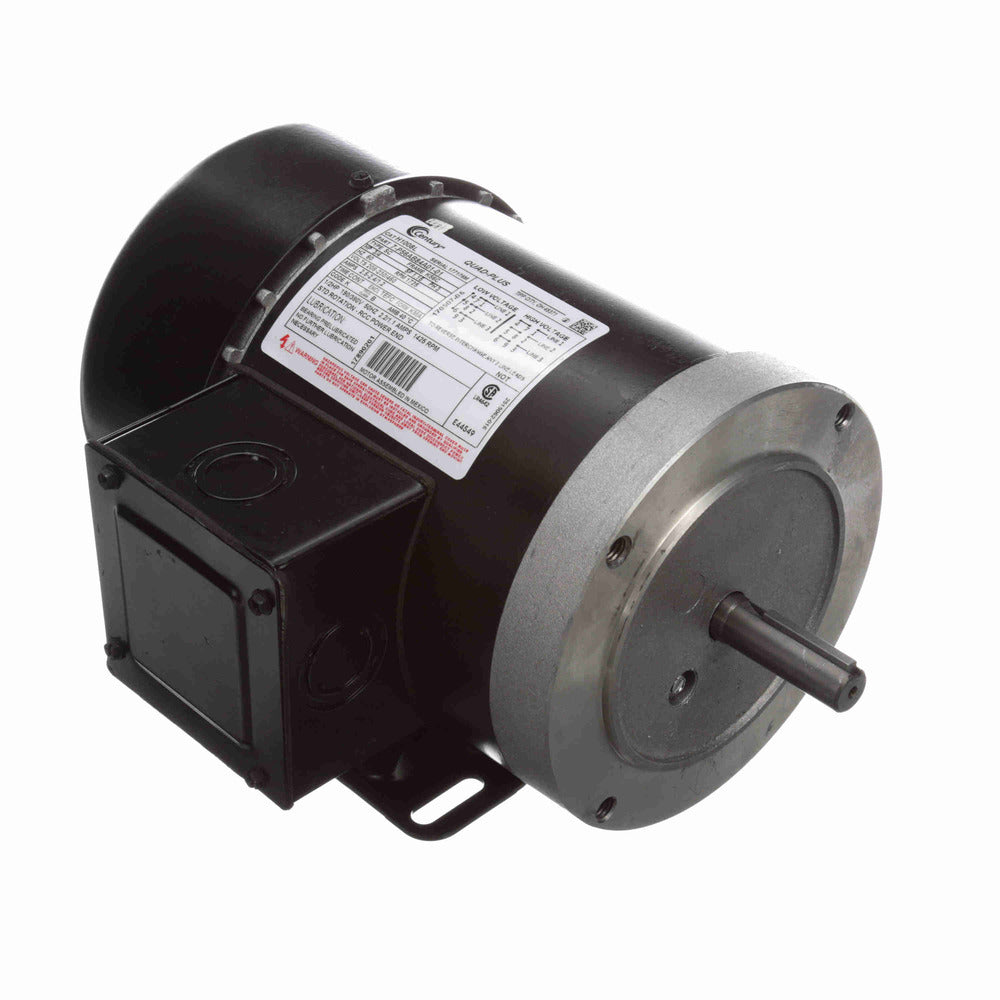

Century UH1008L General Purpose Motor 3/4 HP 208-230-460 Voltage

Product Description

The Century UH1008L General Purpose Motor is a reliable solution for various industrial and commercial applications. Rated at 3/4 HP, this motor operates efficiently at voltages of 208-230/460 and features a totally enclosed fan cooled (TEFC) design.

• Polyphase induction motor
• 3/4 HP power output
• Voltage: 208-230/460

Product Highlights

UL recognized and CSA certified, this motor ensures safe and efficient operation. It is equipped with permanently lubricated, double-sealed ball bearings, extending the motor's life. A continuous duty cycle design allows it to operate at maximum power specifications.

Product Information

Standard Information

• Brand: Century
• MPN: UH1008L

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• HP: 0.75
• KW: 0.56
• RPM: 1725
• Frame: K56C
• Diameter: 6.5
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Three
• Voltage: 208-230/460
• Rotation: Reversible Counterclockwise
• Overload: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: Rigid Base
• Amperage: 2.5-2.4/1.2
• Shaft Type: Keyed
• Shaft Extension: 2.07
• Shaft Diameter: 0.625
• Continuous Duty Cycle: Yes
• Insulation Class: B or F
• Weight: 27 lbs
• Dimensions: 17 inches length, 11 inches width, 11 inches height
