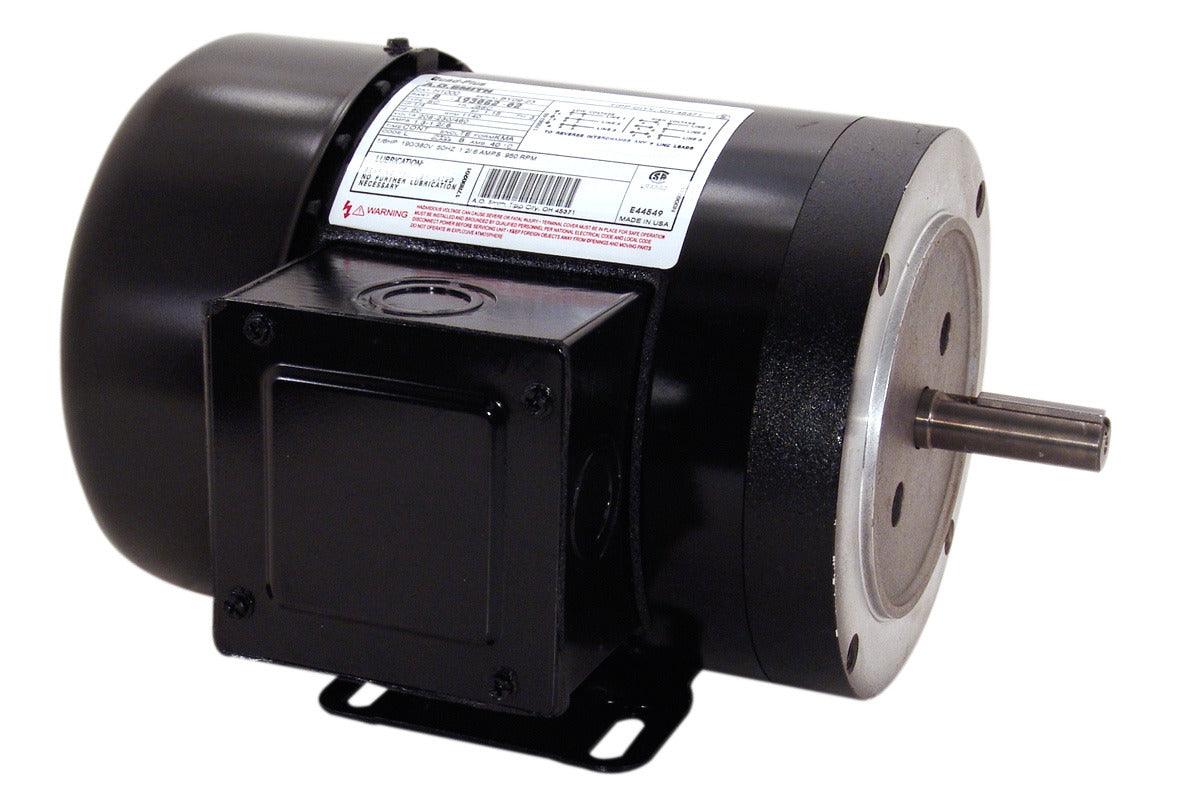

Century UH1006 General Purpose Motor 0.5 HP 208-230/460V 1140 RPM

Product Description

The Century UH1006 General Purpose Motor is a versatile and reliable motor designed for various industrial applications. This motor is known for its durability and efficiency.

• UL recognized component listing
• CSA certification
• Continuous duty cycle

Product Highlights

The Century UH1006 motor is ideal for applications requiring a single or dual voltage motor. It offers a continuous duty cycle, ensuring maximum operation at rated power.

Product Information

Standard Information

• Brand: Century
• MPN: UH1006

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• HP: 0.5
• KW: 0.37
• RPM: 1140
• Frame: G56C
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Three
• Voltage: 208-230/460
• Rotation: Reversible Counterclockwise
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 2.1-2.0/1.0
• Shaft Type: Keyed
• Shaft Extension: 2.070 inches
• Shaft Diameter: 0.625 inches
• Duty: Continuous
• Insulation Class: B
• Poles: Six
• Service Factor: 1.15
• Frequency: 60 Hz
• Ambient Temperature: 40°C
