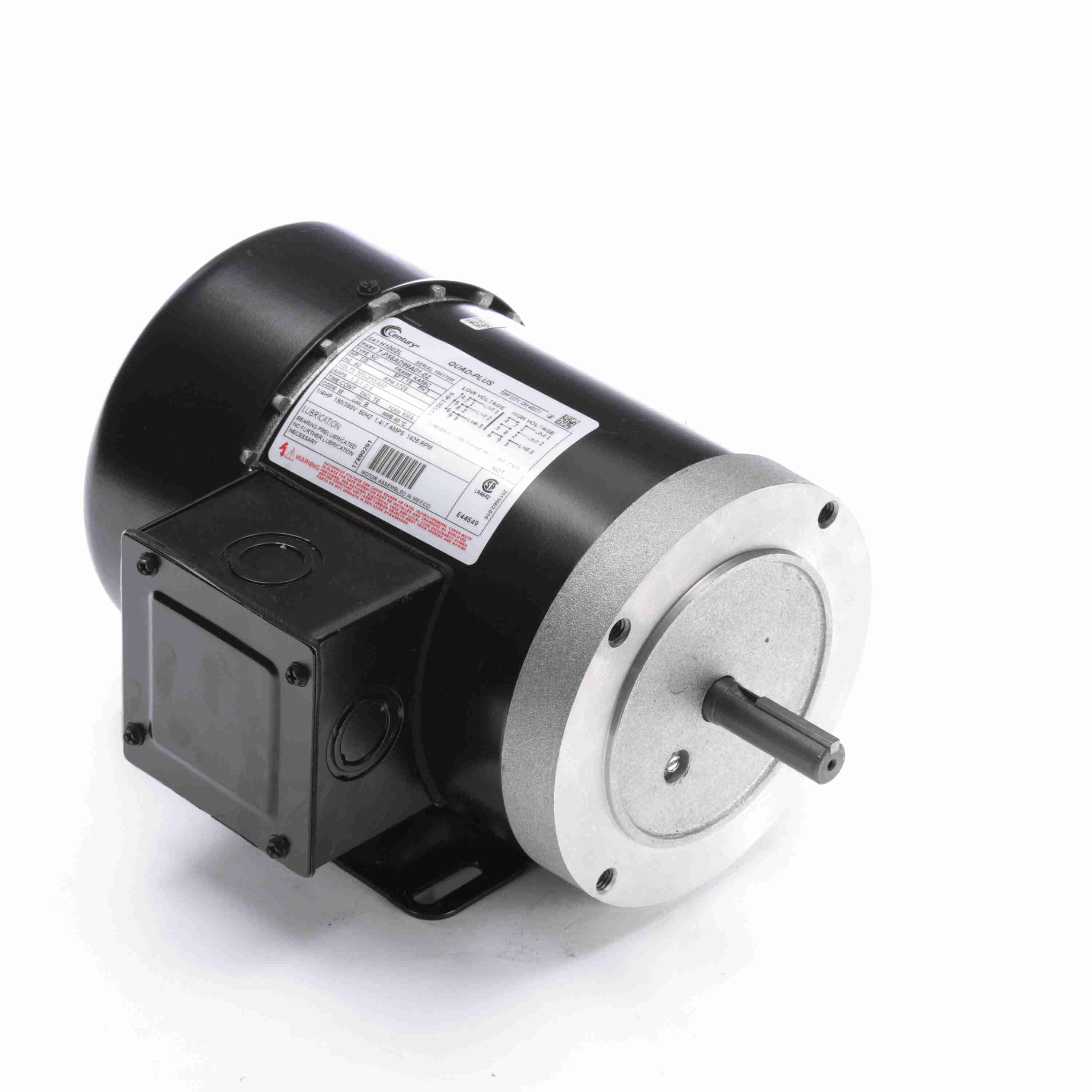

Century UH1002L General Purpose Motor 1/3 HP 1725 RPM 208-230/460 Volt

Product Description

The Century UH1002L General Purpose Motor is designed to provide reliable performance in various applications. This 1/3 HP motor operates at 1725 RPM and supports voltage ratings of 208-230/460 Volts. Made from rolled steel and featuring a totally enclosed fan-cooled design, it ensures durability and efficiency for long-term use. UL recognized and CSA certified for safe operation.

• Polyphase, Induction Type, Single Or Dual Voltage
• Totally Enclosed Fan Cooled
• Rigid Base Mounting

Product Highlights

This general-purpose motor by Century features permanently lubricated, double-sealed bearings that extend motor life. Designed for continuous duty cycle, it operates efficiently at rated power specifications. The motor includes Class B or F insulation, protecting it against maximum temperature ratings.

Product Information

Standard Information

• Brand: Century
• Model: UH1002L
• Power: 1/3 HP
• RPM: 1725 RPM
• Voltage: 208-230/460 Volt

Technical Specifications

• Frame: KA56C
• Diameter: 6.5 inches
• Material: Rolled Steel
• Phase: Three
• Amperage: 1.3-1.2/.6
• Enclosure: Totally Enclosed Fan Cooled
• Rotation: Reversible Counterclockwise
• Bearings Type: Ball/Ball
• Mounting: Rigid Base
• Insulation Class: B or F
