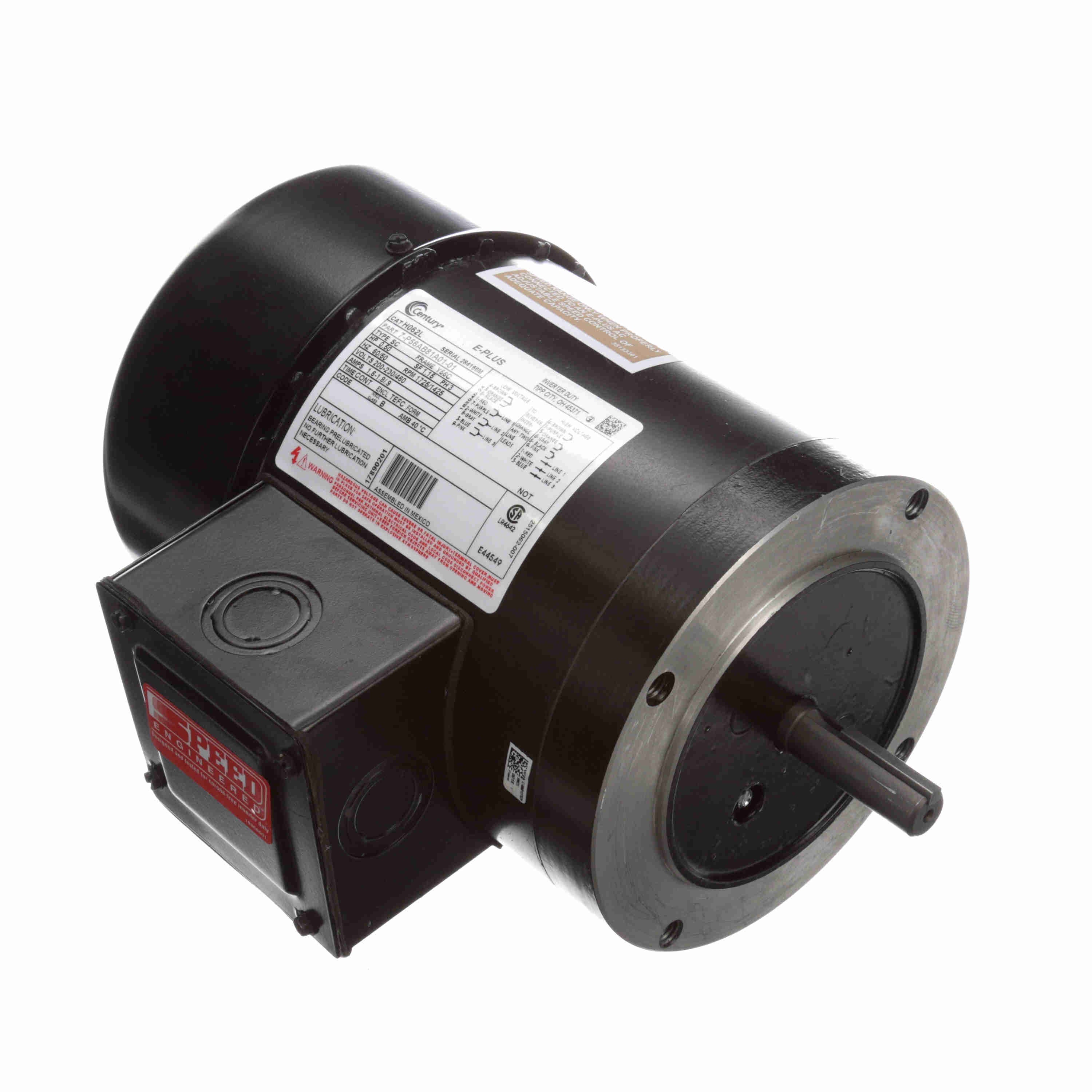

Century UH062L General Purpose Motor 0.5 HP 1725 RPM Y56C 200-230/460V Three Phase Motor

Product Description

The Century UH062L General Purpose Motor is designed to offer reliable performance for various industrial applications. This motor, with a power rating of 0.5 HP, operates at 1725 RPM and is suitable for three-phase electrical systems with a voltage range of 200-230/460V.

• Polyphase induction motor for efficient performance
• Continuous duty cycle design for extended use
• Permanently lubricated, double-sealed bearings

Product Highlights

This motor is ideal for general-purpose applications in industrial settings. Its frame size is Y56C and its totally enclosed fan-cooled design ensures durability and protection from external elements. The motor is made of rolled steel and is UL recognized and CSA certified.

Product Information

Standard Information

• Brand: Century
• MPN: UH062L

Technical Specifications

• HP: 0.5
• KW: 0.37
• RPM: 1725
• Frame: Y56C
• Diameter: 6.5
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Three
• Voltage: 200-230/460
• Rotation: Reversible Counterclockwise
• Amperage: 1.6-1.8/.9
• Shaft Type: Keyed
• Shaft Extension: 2.07
• Shaft Diameter: 0.625
• Insulation Class: B
• Mounting: C-Face
• Material: Rolled Steel
