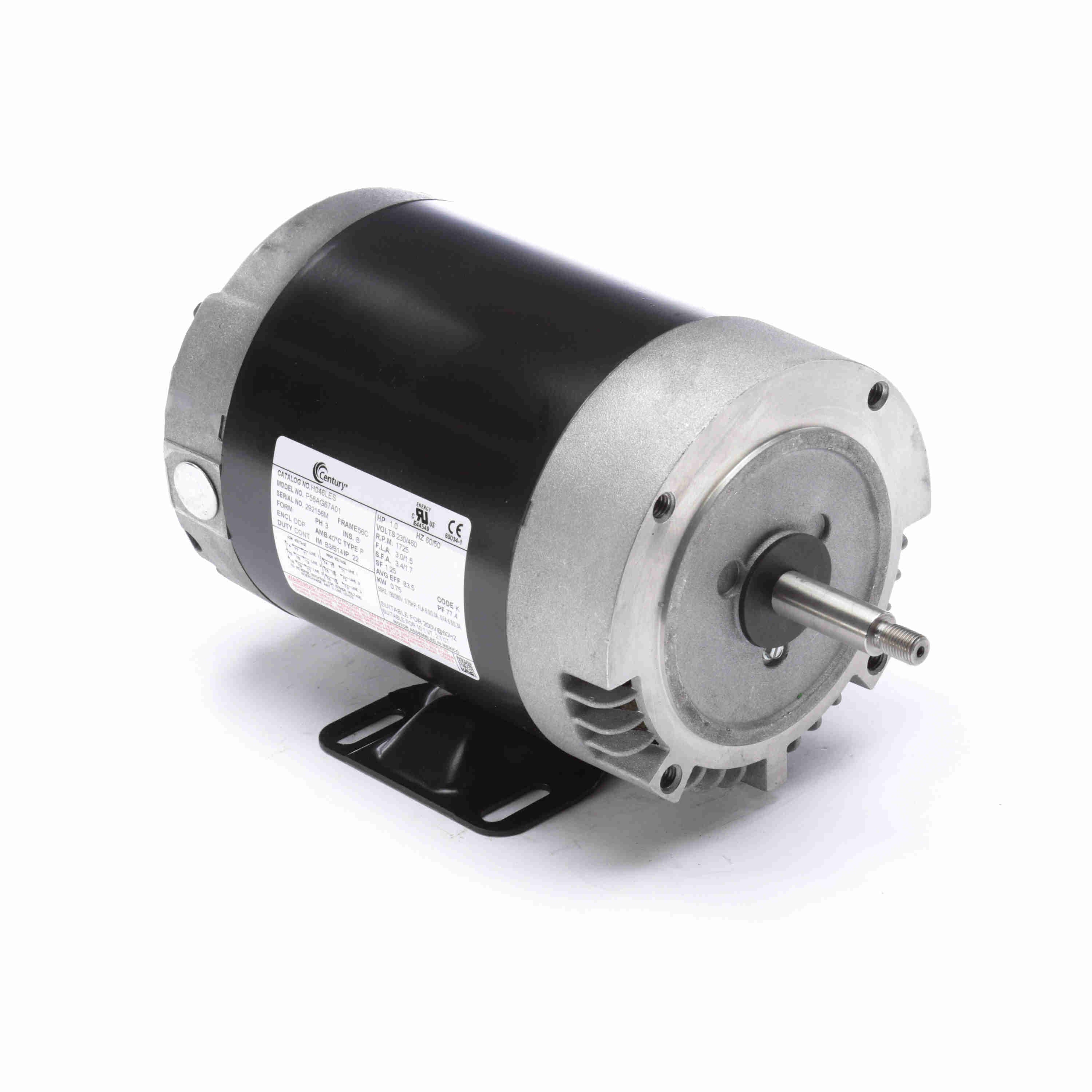

Century UH046LES General Purpose Motor 1 HP 1725 RPM

Product Description

The Century UH046LES General Purpose Motor delivers reliable performance for a wide range of applications. Built with a 1 HP motor, it operates at 1725 RPM, providing consistent power and efficiency. Its open drip-proof design and rolled steel construction enhance durability and longevity.

• 1 HP motor with 1725 RPM
• Open drip-proof construction
• Durable rolled steel material

Product Highlights

Designed for efficiency and reliability, the Century UH046LES motor features permanently lubricated sealed bearings to extend motor life. Its ball-bearing construction ensures smooth operation, while the UL recognized component listing guarantees safety.

Product Information

Standard Information

• Brand: Century
• Model: UH046LES
• Type: General Purpose Motor

Technical Specifications

• Electrical Type: Polyphase
• HP: 1
• KW: 0.75
• RPM: 1725
• Frame: 56C
• Diameter: 6.5
• Enclosure: Open Drip Proof
• Phase: Three
• Voltage: 230/460
• Rotation: Clockwise/Counterclockwise
• Overload: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 3.0/1.5
• Shaft Type: Keyed
• Shaft Extension: 2.57
• Shaft Diameter: 0.625
• Insulation Class: B
• Frequency: 60/50
• Service Factor: 1.25
• Duty: Continuous
