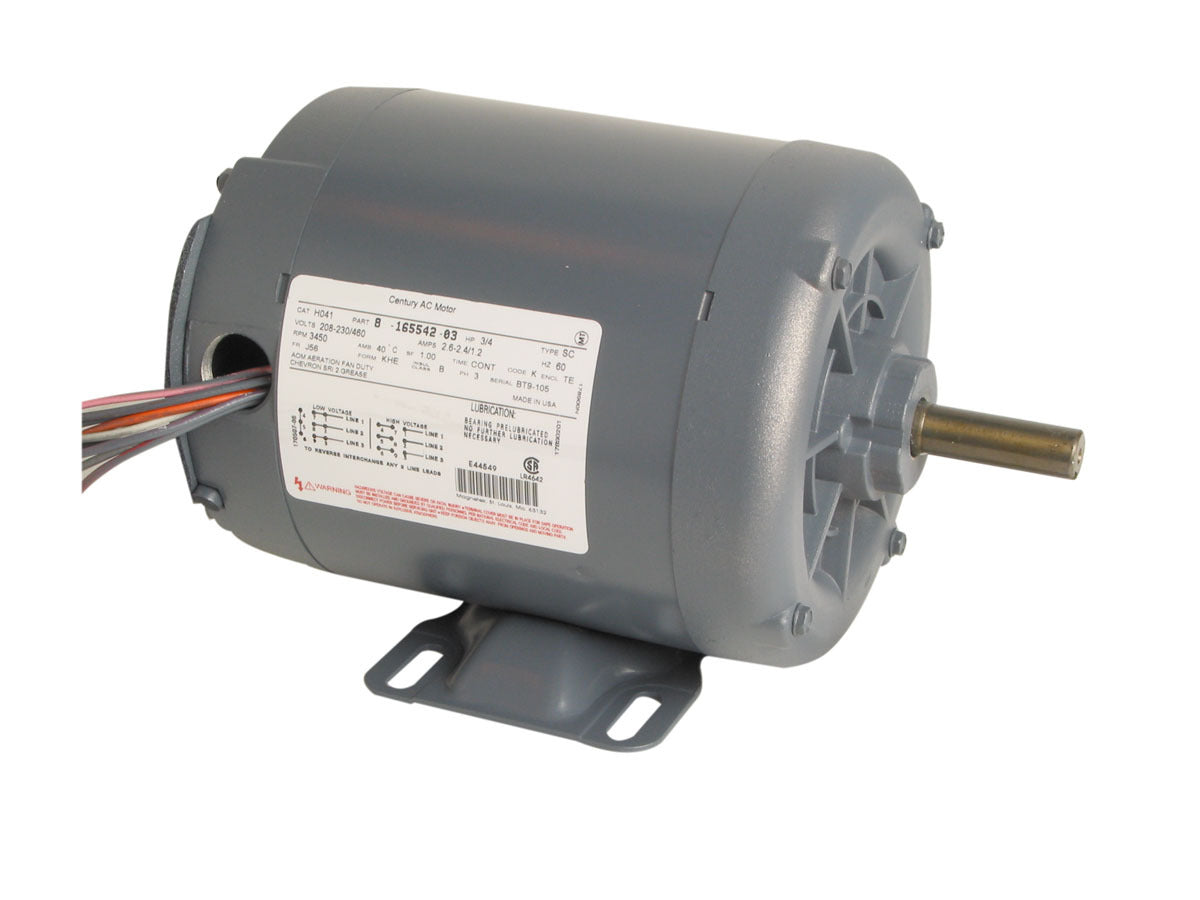

Century UH042 Aeration Fan Motor 1 HP 3450 RPM

Product Description

The Century UH042 Aeration Fan Motor is a reliable HVAC component used in various applications. Featuring a 1 HP motor and 3450 RPM, it ensures efficient performance. This motor is UL recognized and CSA certified.

• Polyphase, Induction Type
• 208-230/460 Voltage
• Totally Enclosed Air Over

Product Highlights

This aeration fan motor is designed for belt-driven fan or fan-on-shaft applications, making it versatile. The motor has double-shielded bearings for an extended service life and an automatic reset thermal protector to guard against overloads.

Product Information

Standard Information

• Brand: Century
• MPN: UH042

Technical Specifications

• Electrical Type: Polyphase, Induction Type
• Horsepower: 1 HP
• KW: 0.75
• Frame: J56
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Air Over
• Phase: Three
• Voltage: 208-230/460
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 2.8-2.7/1.35
• Shaft Type: Keyed
• Shaft Extension: 1.94 inches
• Shaft Diameter: 0.625 inches
• RPM: 3450
