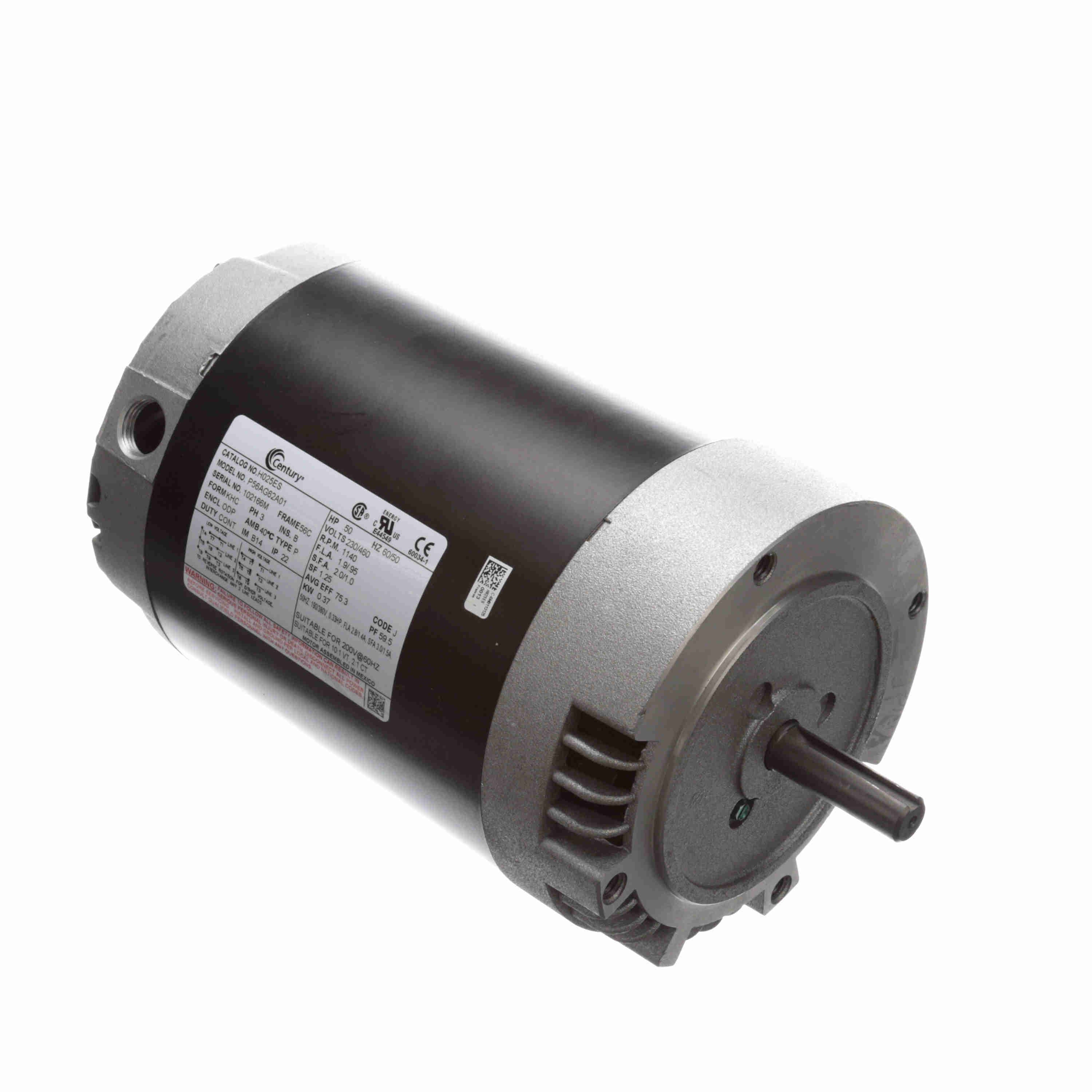

Century UH025ES General Purpose Motor .50 HP 230/460V 56C Frame

Product Description

The Century UH025ES general purpose motor offers efficient operation and durability. It is designed specifically for trade professionals needing reliable performance. UL recognized and CSA certified.

• Polyphase electrical type
• Heavy-duty rolled steel construction
• Permanently lubricated sealed bearings

Product Highlights

This motor features .50 horsepower at 230/460 volts, ensuring optimum efficiency with a three-phase connection. Its open drip-proof enclosure and rolled steel body contribute to durability and longevity.

Product Information

Standard Information

• Brand: Century
• MPN: UH025ES
• Frame: 56C
• Voltage: 230/460
• Horsepower: 0.50

Technical Specifications

• Electrical Type: Polyphase
• RPM: 1140
• Phase: Three
• Enclosure: Open Drip Proof
• Diameter: 6.5 inches
• Amperage: 1.9/.95
• Rotation: Clockwise/Counterclockwise
• Material: Rolled Steel
• Shaft Type: Keyed
• Shaft Extension: 2.07 inches
• Shaft Diameter: 0.625 inches
• Bearings Type: Ball/Ball
