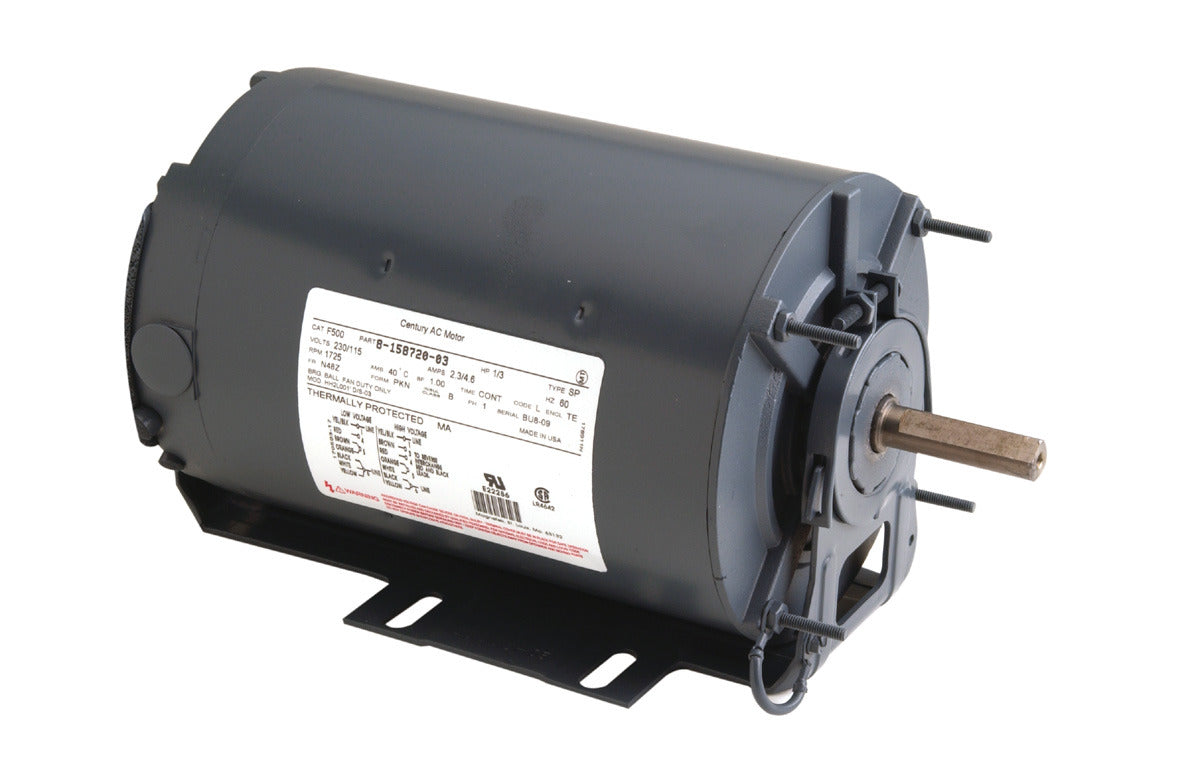

Century UF501 Agricultural Fan Motor 1/2 HP 230/115 V

Product Description

The Century UF501 Agricultural Fan Motor is designed for farm duty applications. It offers reliable performance with a horsepower of 1/2 and a voltage option of 230/115 V.

• Split Phase, Induction Run
• Thermally Protected
• Cushion Base Mounting

Product Highlights

This motor features a split phase induction run, a reversible counterclockwise rotation, and a robust rolled steel construction. It is duty-rated for continuous operation and designed to protect against thermal overload. The motor is UL recognized and CSA certified.

Product Information

Standard Information

• Brand: Century
• MPN: UF501

Technical Specifications

• Horsepower: 1/2
• RPM: 1725
• Frame: J56Z
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Air Over
• Phase: 1
• Voltage: 230/115
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Mounting: Cushion Base
• Amperage: 3.5/7.0
• Shaft Type: Flat
• Shaft Diameter: 0.5 inches
• Shaft Extension: 1.88 inches
• Overload Protection: Thermally Protected
• Certification: UL Recognized, CSA Certified
