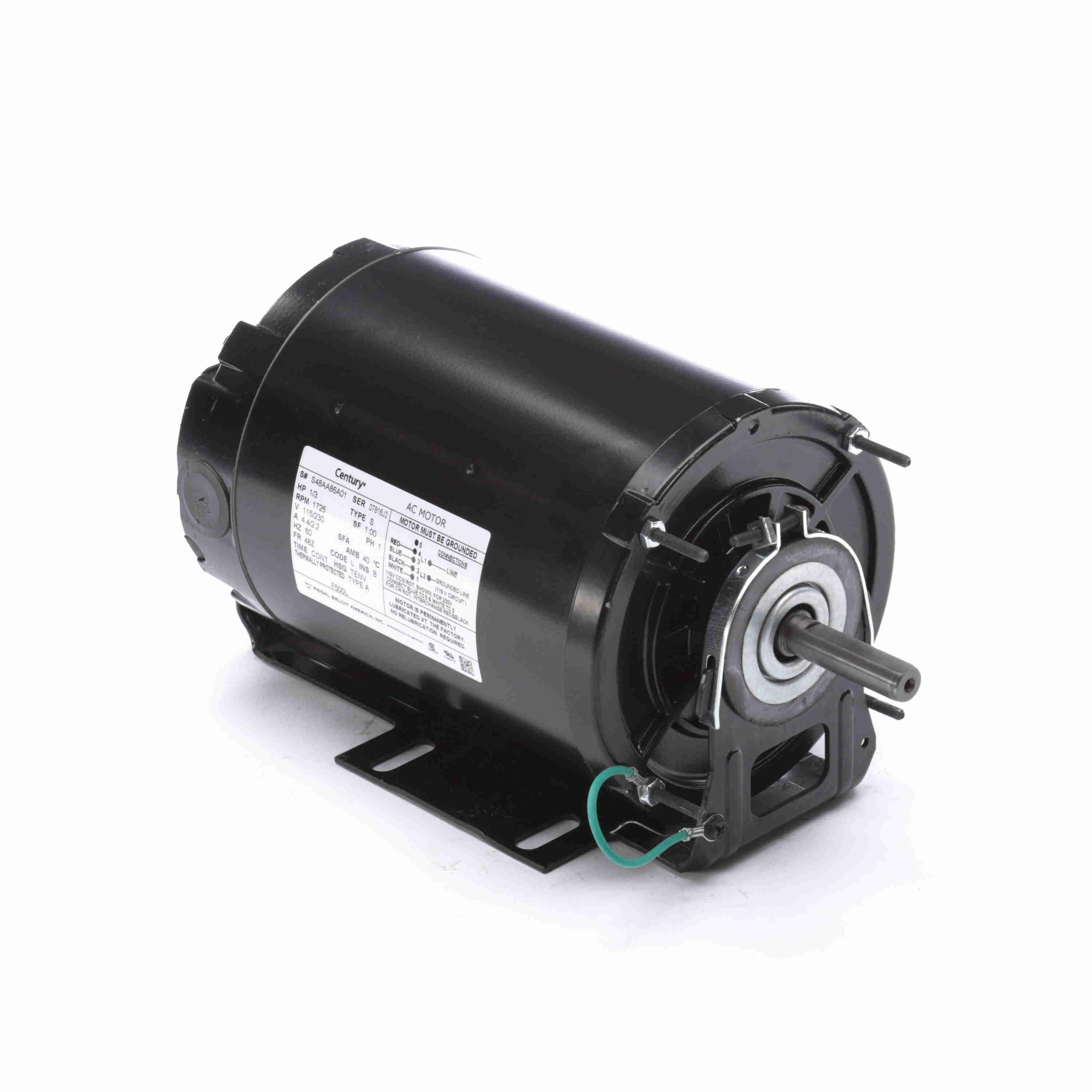

Century UF500L Belt Drive Fan and Blower Motor 1/3 HP 115/230 Volts

Product Description

The Century UF500L Belt Drive Fan and Blower Motor is designed for HVAC applications. This motor has an output of 1/3 horsepower and operates at 115/230 volts. It features a split-phase electrical type and can reach speeds up to 1725 RPM.

• UL recognized and CSA certified
• Double-shielded bearings
• Automatic overload reset

Product Highlights

This motor offers moderate starting torque to reduce fan stresses, and its totally enclosed non-ventilated enclosure ensures maximum protection.

Product Information

Standard Information

• Brand: Century
• MPN: UF500L

Technical Specifications

• Electrical Type: Split Phase
• Horsepower: 1/3
• Power: 0.25 KW
• Speed: 1725 RPM
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: Totally Enclosed Non-Ventilated
• Phase: 1
• Voltage: 115/230
• Rotation: Reversible
• Overload Protection: Automatic
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: Resilient Base
• Amperage: 4.4/2.2
• Shaft Type: Flat
• Shaft Extension: 1.88 inches
• Shaft Diameter: 0.5 inches
• Insulation Class: B
• Service Factor: 1
• Frequency: 60 Hz
• UL Certification: Recognized
• CSA Certification: Yes
