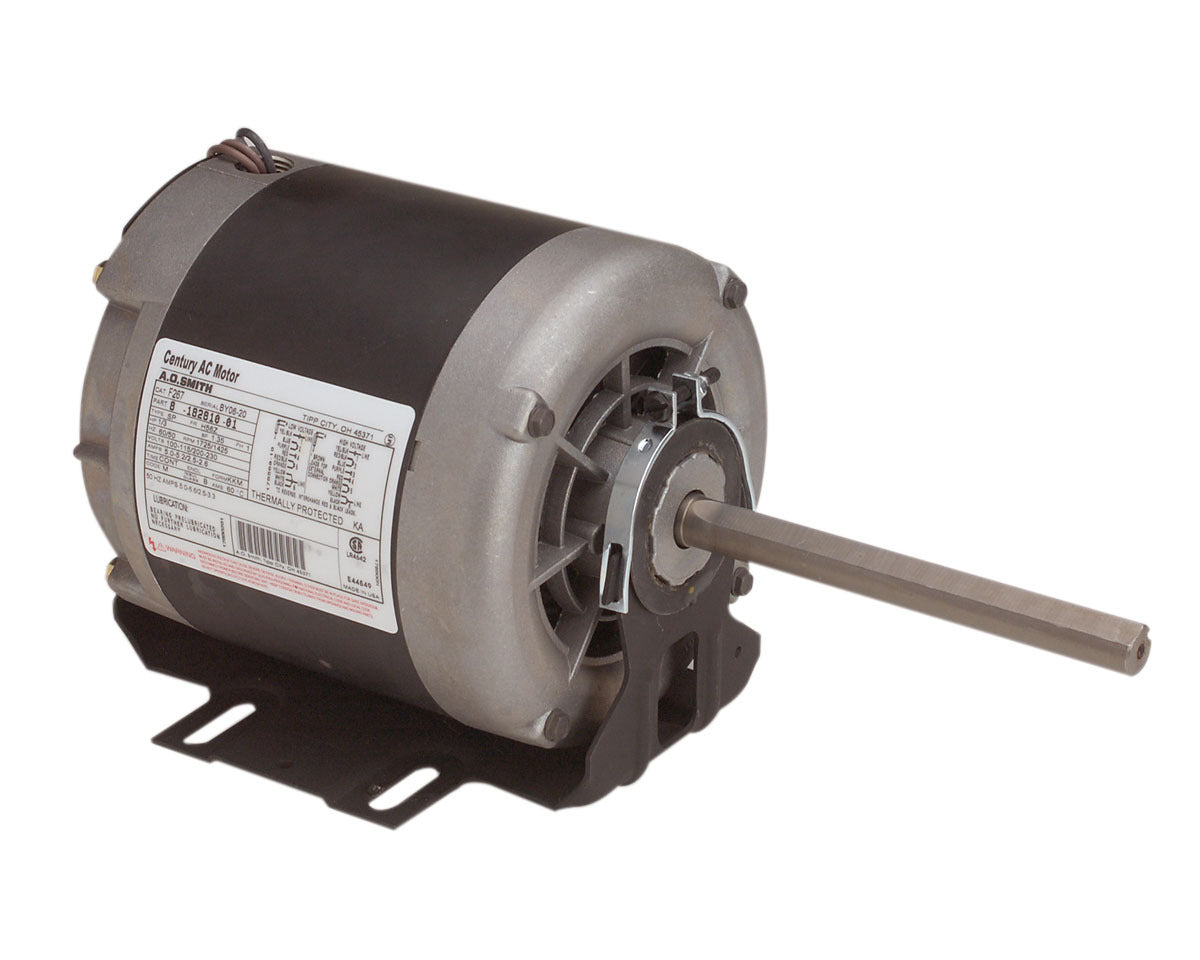

Century UF267 Convection and Pizza Oven Motor 0.33 HP

Product Description

The Century UF267 Convection and Pizza Oven Motor is designed for split phase operation, providing a power of 0.33 HP at 1725 RPM. It features a 56Z frame with a diameter of 6.5 inches and a drip-proof enclosure for effective performance in demanding environments. This motor runs on a voltage range of 100-115/200-230 and supports selective counterclockwise rotation.

• Drip-proof enclosure
• Thermally protected overload
• Automatic reset overload protector

Product Highlights

This motor is ideal for convection and pizza ovens, ensuring reliable operation with its double-sealed ball bearings and resilient base mount. Its selective counterclockwise rotation and thermal protection make it highly efficient for continuous duty applications.

Product Information

Standard Information

• Brand: Century
• Model: UF267
• Application: Convection and Pizza Oven Motor

Technical Specifications

• Electrical Type: Split Phase
• HP: 0.33
• RPM: 1725
• Frame: 56Z
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 100-115/200-230
• Rotation: Selective Counterclockwise
• Overload Protection: Thermally Protected
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 4.8-4.8/2.4-2.4
• Shaft Type: Keyed
• Shaft Diameter: 0.625 inches
• Shaft Extension: 5.92 inches
• Bearings: Ball Type (DE and ODE)
• Service Factor: 1.35
• Frequency: 60 Hz
• Efficiency: 70%
• Insulation Class: B
