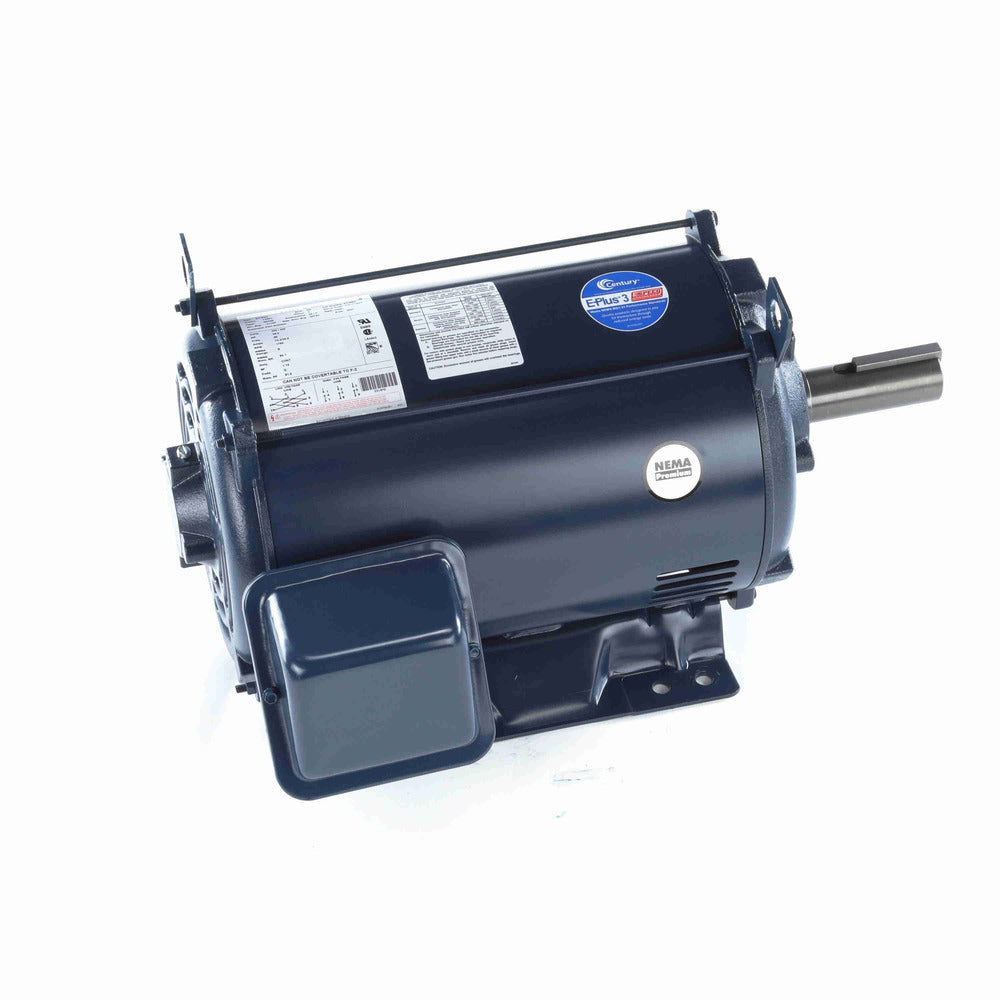

Century UE516M2 General Purpose Motor 30 HP 230/460V

Product Description

The Century UE516M2 General Purpose Motor comes in a durable rolled steel enclosure and is designed for a variety of industrial applications. This 30 HP motor operates at 230/460V and features a three-phase electrical system, making it a reliable choice for heavy-duty tasks.

• 30 HP motor
• Three-phase electrical system
• Operates at 230/460V

Product Highlights

Suitable for various industrial applications, the motor is built to meet or exceed all USA mandated efficiencies.

Product Information

Standard Information

• Brand: Century
• MPN: UE516M2
• Country of Origin: Mexico

Technical Specifications

• HP: 30
• KW: 22.4
• RPM: 1765
• Frame: Y286T
• Enclosure: Drip Proof
• Voltage: 230/460
• Amperage: 73.2/36.6
• Shaft Diameter: 1.875 inches
• Shaft Extension: 5.09 inches
• Bearings Type: Ball / Ball
• Mounting Type: Rigid Base
• Frequency: 60
• Insulation Class: F
• Service Factor: 1.15
• Duty: Continuous
• Rotation: Counterclockwise
• Ambient Temperature: 40 degrees Celsius
