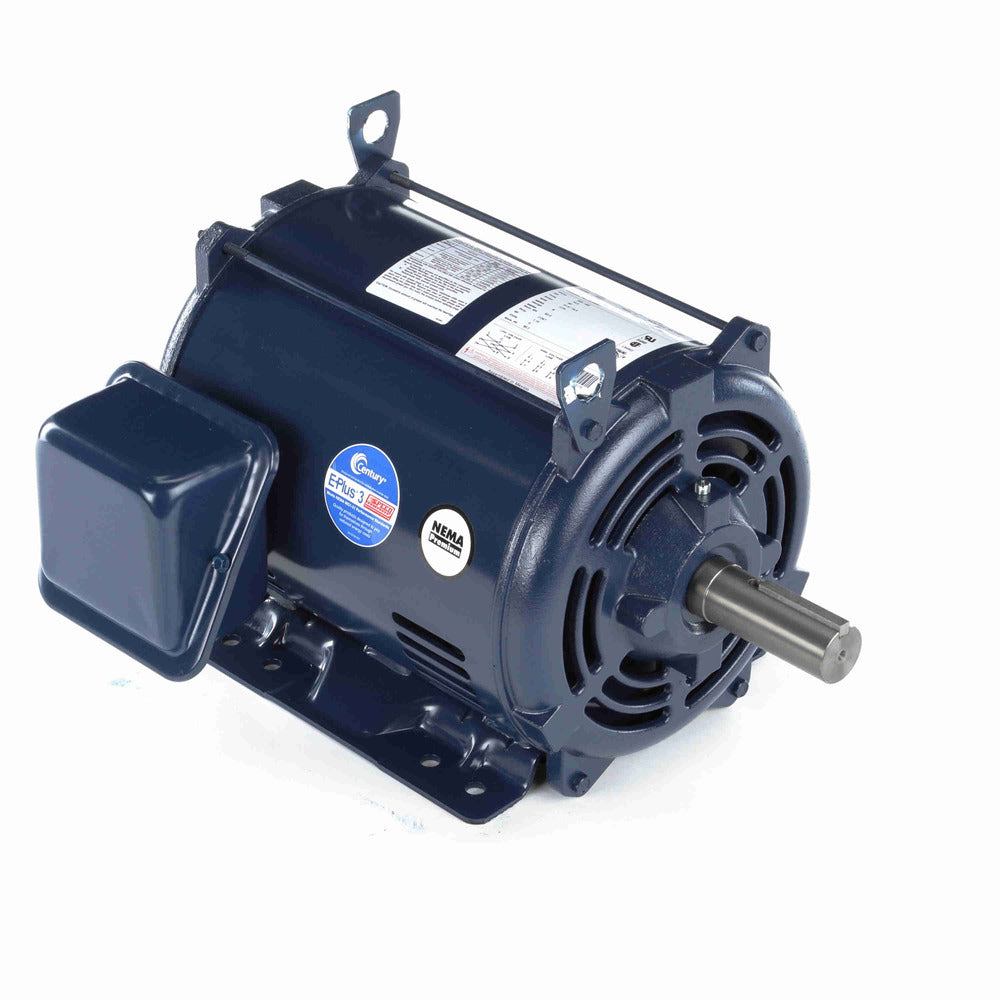

Century UE451M2 General Purpose Motor 15 HP 1770 RPM Rolled Steel

Product Description

The Century UE451M2 General Purpose Motor is a versatile and reliable motor designed for various applications. This motor operates at 15 HP and 1770 RPM, making it suitable for demanding tasks. With its rolled steel construction, it ensures durability and longevity.

• Three Phase
• 230/460 Voltage
• Rolled Steel Construction

Product Highlights

This general-purpose motor by Century is built to meet or exceed USA mandated efficiencies. It features a drip-proof enclosure, counterclockwise rotation, and a rigid base mounting. The motor is built with ball bearings and a keyed shaft for secure and efficient operation.

Product Information

Standard Information

• Brand: Century
• MPN: UE451M2
• HP: 15
• Voltage: 230/460

Technical Specifications

• Electrical Type: Three Phase
• HP: 15
• KW: 11.2
• RPM: 1770
• Frame: S254T
• Enclosure: Drip Proof
• Phase: 3
• Voltage: 230/460
• Rotation: Counterclockwise
• Overload Protector: No Protection
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: Rigid Base
• Amperage: 37.8/18.9
• Shaft Type: Keyed
• Shaft Extension: 4.4 inches
• Shaft Diameter: 1.625 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Ambient Temperature: 40 degrees Celsius
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: F
• Poles: 4
• Service Factor: 1.15
• Start Method: Across The Line
• Frame Prefix: S
• Frame Size: 254
• Frame Suffix: T
• Mounting Type: Rigid Base
• Weight: 237 pounds
• Length: 20.25 inches
• Width: 18.5 inches
• Height: 18 inches
