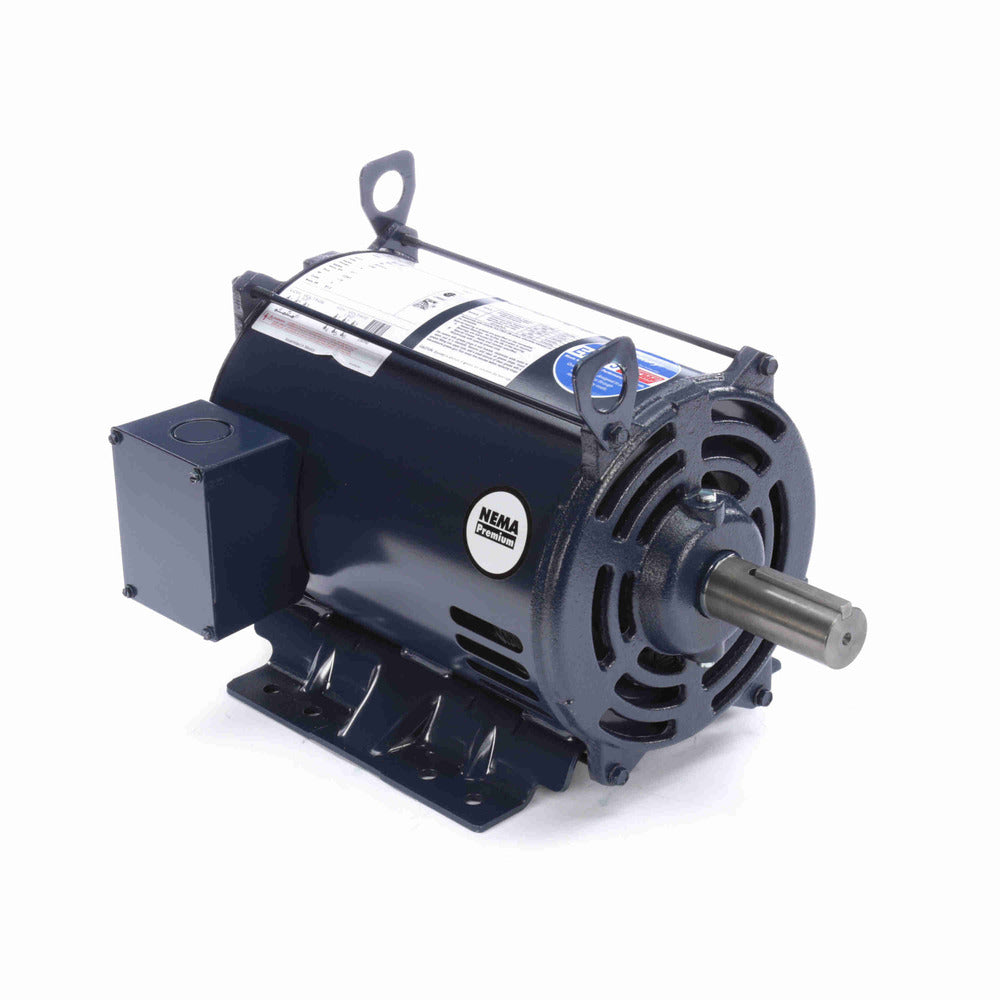

Century UE397M2 General Purpose Motor Three Phase 10 HP 230/460 Volt

Product Description

The Century UE397M2 is a general-purpose motor designed for a variety of industrial applications. This motor offers reliable performance and durability, making it a valuable asset for multiple operations.

• Three-phase electrical type
• 10 horsepower motor
• Counterclockwise rotation

Product Highlights

This motor features a three-phase electrical type, providing 10 horsepower and running on 230/460 volts. It is made from rolled steel, ensuring long-lasting use. The motor also has a drip-proof enclosure and a rigid base mounting.

Product Information

Standard Information

• Brand: Century
• MPN: UE397M2
• Category: Motor > General Purpose Motor
• Class: General Purpose Motor

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 10 HP
• Kilowatts: 7.5 KW
• RPM: 1755
• Frame: S215T
• Enclosure: Drip Proof
• Phase: 3
• Voltage: 230/460
• Rotation: Counterclockwise
• Overload Protection: No Protection
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: Rigid Base
• Amperage: 25.2/12.6
• Shaft Type: Keyed
• Shaft Extension: 3.5 inches
• Shaft Diameter: 1.375 inches
• Frequency: 60 Hz
• Insulation Class: F
• Service Factor: 1.15
• Start Method: Across The Line
• Ambient Temperature: 40°C
• Certifications: UL Recognized, CSA
