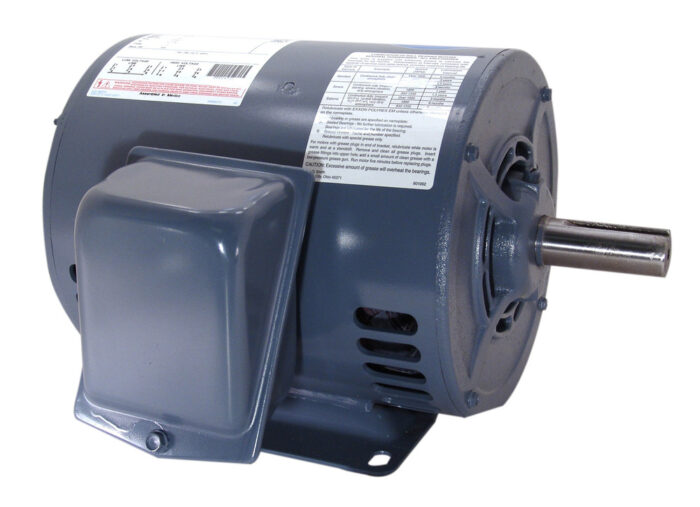

CENTURY MOTORS UE394 General Purpose Motor 3 HP

Product Description

The CENTURY MOTORS UE394 is a three-phase general-purpose motor. This motor is suitable for continuous duty operation. It features a rigid base for secure mounting and ball bearings for improved performance. The design includes an open drip proof enclosure for protection from the environment and a keyed shaft for secure installation.

• Three-phase power.
• Operates at twelve hundred RPM.
• Open drip proof enclosure.

Product Highlights

This motor is ideal for applications requiring reliable performance and durability. The UE394 is designed for use with variable torque inverters, making it versatile for multiple operational settings.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UE394

Technical Specifications

• Power Rating: 3 HP
• Speed: 1200 RPM
• Frame Size: NEMA 213 T
• Input Voltage: 230/460 V
• Input Current: 9/4.5 A
• Service Factor: 1.15
• Enclosure: DP
• Mounting Type: Rigid
• Shaft Diameter x Length: 1.375 x 3.47 inches
• C Dimension: 17.3 inches
• Phase: 3
• Rotation: Reversible
• Efficiency: 88.5% NEMA nominal
• Inverter Duty: 6:1 variable torque
• Operating Temperature: 40 degrees C
