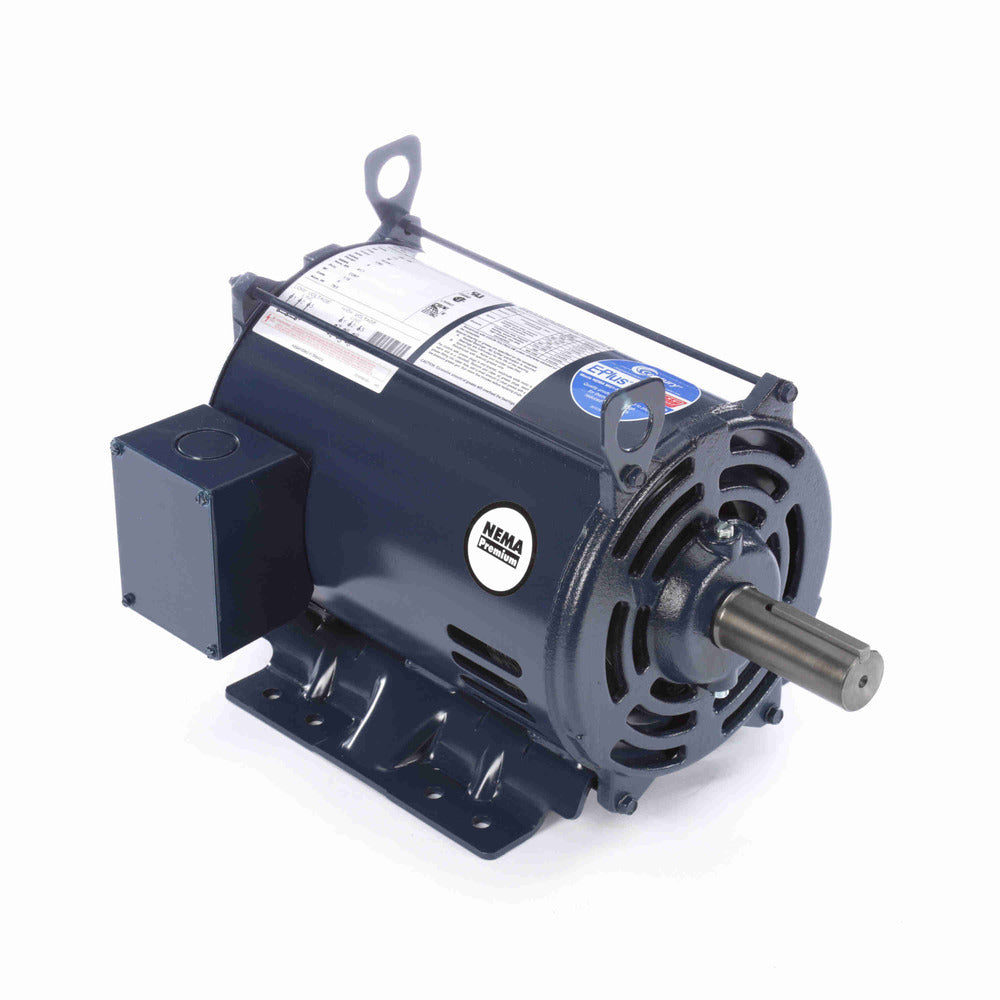

Century UE317M2 General Purpose Motor 7.5 HP 1760 RPM Replaces 213TTDBD6026

Product Description

The Century UE317M2 General Purpose Motor is a reliable choice for various industrial applications. This motor is engineered by Century and has the MPN UE317M2, ensuring compatibility and quality performance.

• Three Phase
• 7.5 Horsepower
• 1760 RPM

Product Highlights

This motor is built to meet or exceed USA efficiency standards. It features a rigid base mounting and operates at 60 Hz. It is designed for continuous duty with rolled steel construction and ball bearings for durability.

Product Information

Standard Information

• Brand: Century
• MPN: UE317M2
• Applications: General Purpose Motor
• Replaces: 213TTDBD6026

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 7.5
• RPM: 1760
• Frame: S213T
• Enclosure: Drip Proof
• Phase: Three
• Voltage: 230/460
• Rotation: Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 19.4/9.7
• Shaft Type: Keyed
• Shaft Extension: 3.5
• Shaft Diameter: 1.375
• Frequency: 60 Hz
• Service Factor: 1.15
• Insulation Class: F
