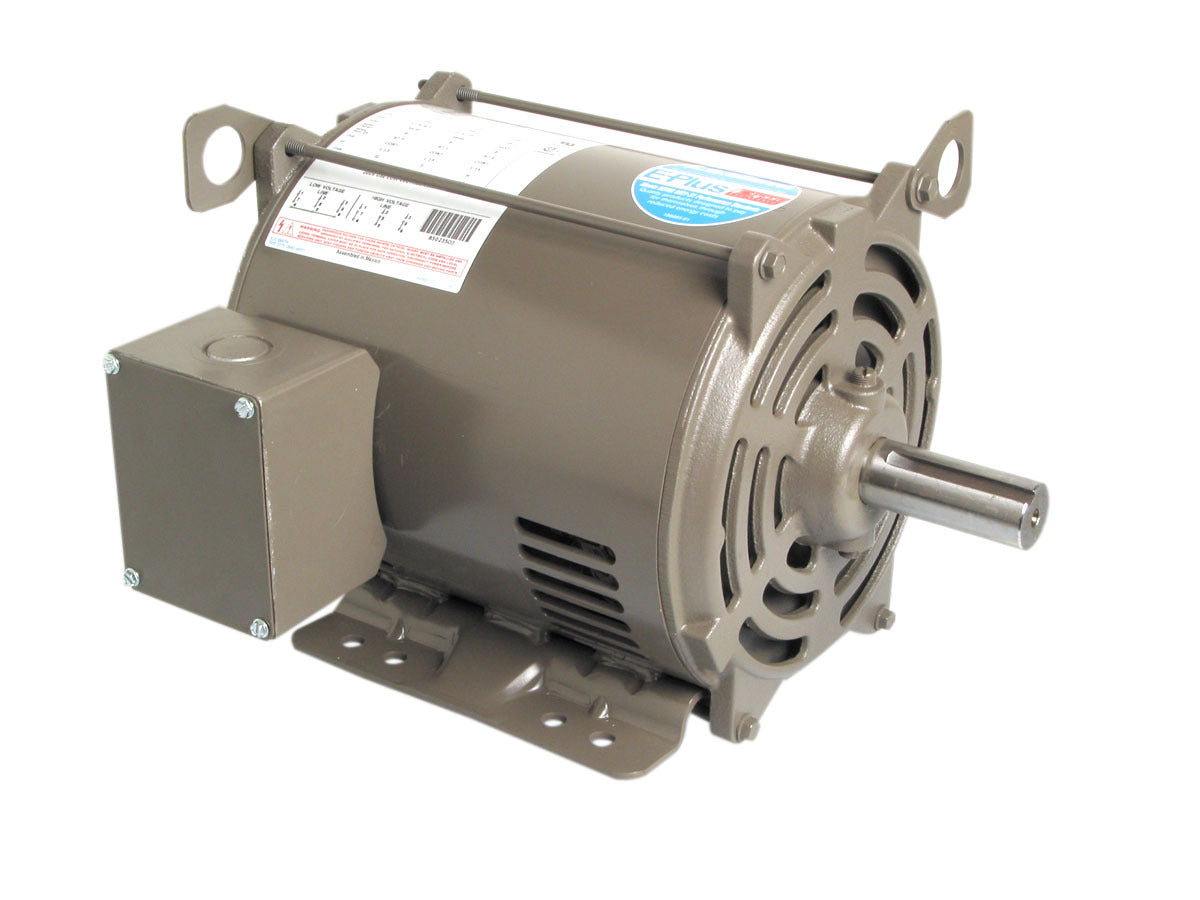

Century UE316 General Purpose Motor 7.5 HP 200V

Product Description

The Century UE316 is a general purpose motor designed for various applications. With a horsepower of seven and one-half and a voltage rating of two hundred volts, this motor operates efficiently at seventeen hundred RPM. The motor features a rigid base mounting configuration and is built from rolled steel for durability.

• Electrical Type: Three Phase
• Frame Size: S213T
• Overload Protection: None

Product Highlights

This motor is suitable for commercial tasks where reliability is essential. It meets or exceeds all USA mandated efficiencies while providing a variable torque ratio of six to one, making it versatile for different operating conditions.

Product Information

Standard Information

• Amperage: 21.4
• Phase: Three

Technical Specifications

• Enclosure: Drip Proof
• Shaft Diameter: 1.375 inches
• Shaft Extension: 3.500 inches
• Weight: 122 lbs
• Dimensions: 22 inches (Length) x 15.25 inches (Width) x 13.38 inches (Height)
• Country of Origin: Mexico
• Replaced Part Number: 213TTDBD6039
