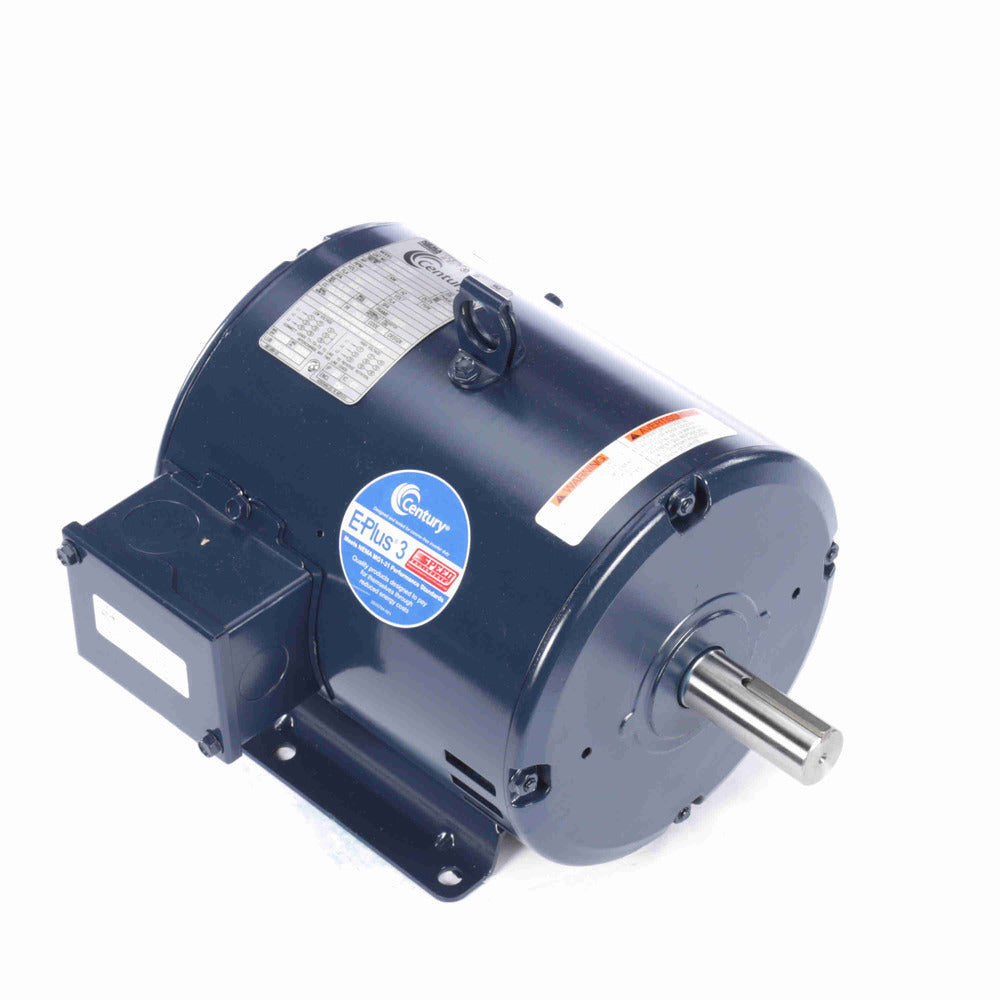

Century UE217M2 General Purpose Motor 3 HP 208-230/460V 182T Frame

Product Description

The Century UE217M2 General Purpose Motor is built to meet diverse industrial needs. It offers 3 HP and operates on 208-230/460 volts. Its design features a 182T frame and open drip proof enclosure.

• Polyphase electrical type
• 3 horsepower
• Rolled steel construction

Product Highlights

This motor meets all USA mandated efficiencies. Made from rolled steel, it supports variable torque and operates at both 60Hz and 50Hz. Ideal for applications requiring a reliable and easy-to-install motor.

Product Information

Standard Information

• Brand: Century
• MPN: UE217M2

Technical Specifications

• Electrical Type: Polyphase
• HP: 3
• KW: 2.2
• RPM: 1770
• Frame: 182T
• Enclosure: Open Drip Proof
• Phase: Three
• Voltage: 208-230/460
• Rotation: Reversible
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 8.4-8/4
• Shaft Type: Keyed
• Shaft Extension: 2.81
• Shaft Diameter: 1.125
• Duty: Continuous
• Frequency: 60
• Insulation Class: F
• Poles: 4
• Service Factor: 1.15
• Start Method: Across The Line
