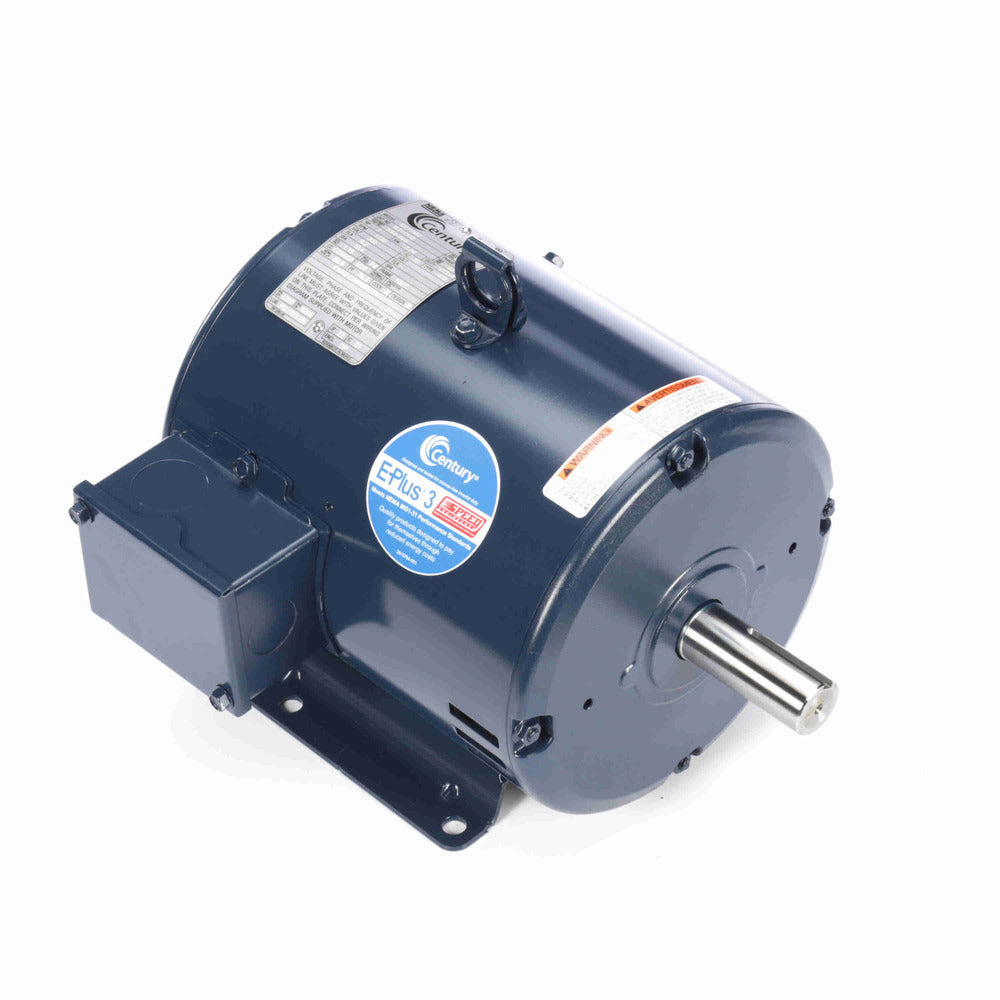

Century UE216M2 General Purpose Motor 3 HP 200 Voltage Replaces 182TTDBD6039

Product Description

The Century UE216M2 General Purpose Motor is ideal for various industrial and commercial applications. Designed with polyphase electrical type, this motor delivers reliable performance with a power output of 3 HP and operates at 200 volts. The motor is built with a durable rolled steel frame and features an open drip proof enclosure.

• Polyphase electrical type
• 3 HP power output
• Open drip proof enclosure

Product Highlights

This general-purpose motor from Century is suitable for various applications, offering reversible rotation and a rigid base for easy mounting. It meets or exceeds all USA mandated efficiencies and supports 6:1 variable torque.

Product Information

Standard Information

• Brand: Century
• MPN: UE216M2
• Replaces: 182TTDBD6039
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Polyphase
• Power: 3 HP
• KW: 2.2
• RPM: 1770
• Frame: 182T
• Enclosure: Open Drip Proof
• Phase: 3
• Voltage: 200
• Rotation: Reversible
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 9.5
• Shaft Type: Keyed
• Shaft Extension: 2.81 inches
• Shaft Diameter: 1.25 inches
• Overload Protection: No Protection
• Duty: Continuous
• Frequency: 60
• Insulation Class: F
• Poles: 4
• Service Factor: 1.15
• Ambient Temperature: 40°C (104°F)
